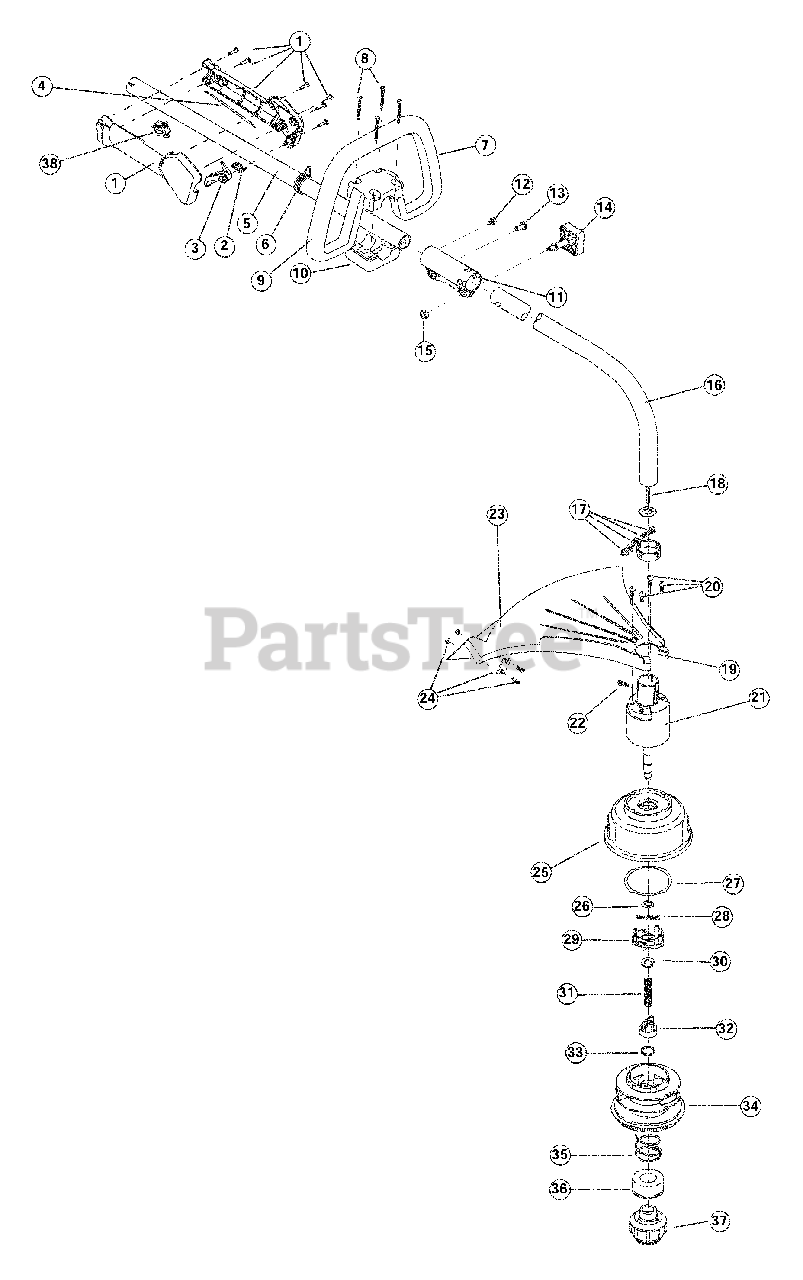

TB 25 CS (41ADT25C066) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing and Trigger Assembly

Note: (Includes 2 & 3)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 753-04405

Throttle Cable Assembly

$7.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

6

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (Includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-04406

Split-Boom Coupler
(Superseded to 753-1190)

Note: (Includes 12-15)

$23.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

13

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

15

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-153597

Lower Clamp Assembly

$

$

Not available

18

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

19

Troy-Bilt 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

21

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

22

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

23

Troy-Bilt 791-181659

Shield and Blade Assembly

Note: (Includes 24)

$

$

Not available

24

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-181457

Outer Spool and Eyelet Assembly

Note: (Includes 26)

$39.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, Qty 12

0

27

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

28

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

31

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

32

Troy-Bilt 791-181462

Plunger

$

$

Not available

33

Troy-Bilt 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

36

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

37

Troy-Bilt 791-181468

Bump Head Knob Assembly w/Spring & Foam Seal
(Superseded to 791-181468B)

$

$

Not available

38

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

Troy-Bilt 753-04218

Reel and Line Assembly - Optional Accessory

Note: Item Not Shown

$

$

Not available

Troy-Bilt 791-180120

Replacement Line - Optional Accessory
(Superseded to 953-1156)

Note: Item Not Shown

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Item Not Shown

$38.99

$

Usually ships in 3-6 days

0
