TB 25 C EC (41AD25CA766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

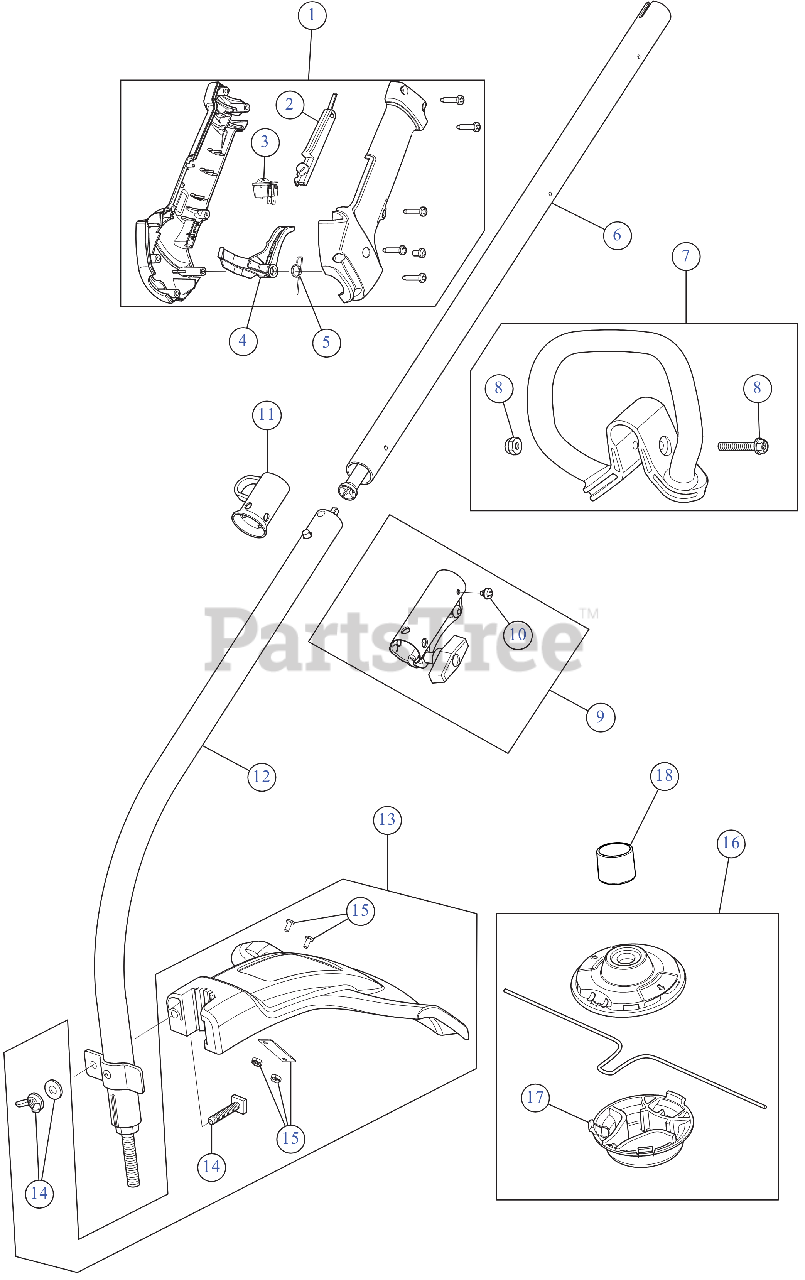

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06790

THROTTLE GRIP ASSEMBLY

Note: (Incl. 2 - 5)

$12.99

$

In Stock, Qty 6

0

2

Troy-Bilt 731-08433C-5

LOCK OUT LEVER

$3.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

4

Troy-Bilt 753-06861

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 6

0

5

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-08042

D-HANDLE

Note: (Incl. 8)

$4.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 10)

$23.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

11

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 753-06865

BOOM ASSEMBLY LOWER

$

$

Not available

13

Troy-Bilt 753-04283

GUARD ASSEMBLY

Note: (Incl. 14 & 15)

$50.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 791-180553

ASSEMBLY, BLADE

$14.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-08169

HEAD ASSEMBLY FIXED LIN

Note: (Incl. 17)

$13.99

$

In Stock, Qty 10

0

17

Troy-Bilt 753-08170

HEAD FIXED LINE BT

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06866

WEED GUARD

$3.49

$

In Stock, only 1 left!

0
