TB 25 BP (41AR25BG966) - Troy-Bilt Backpack Blower General Assembly Parts Diagram

Backpack Blower

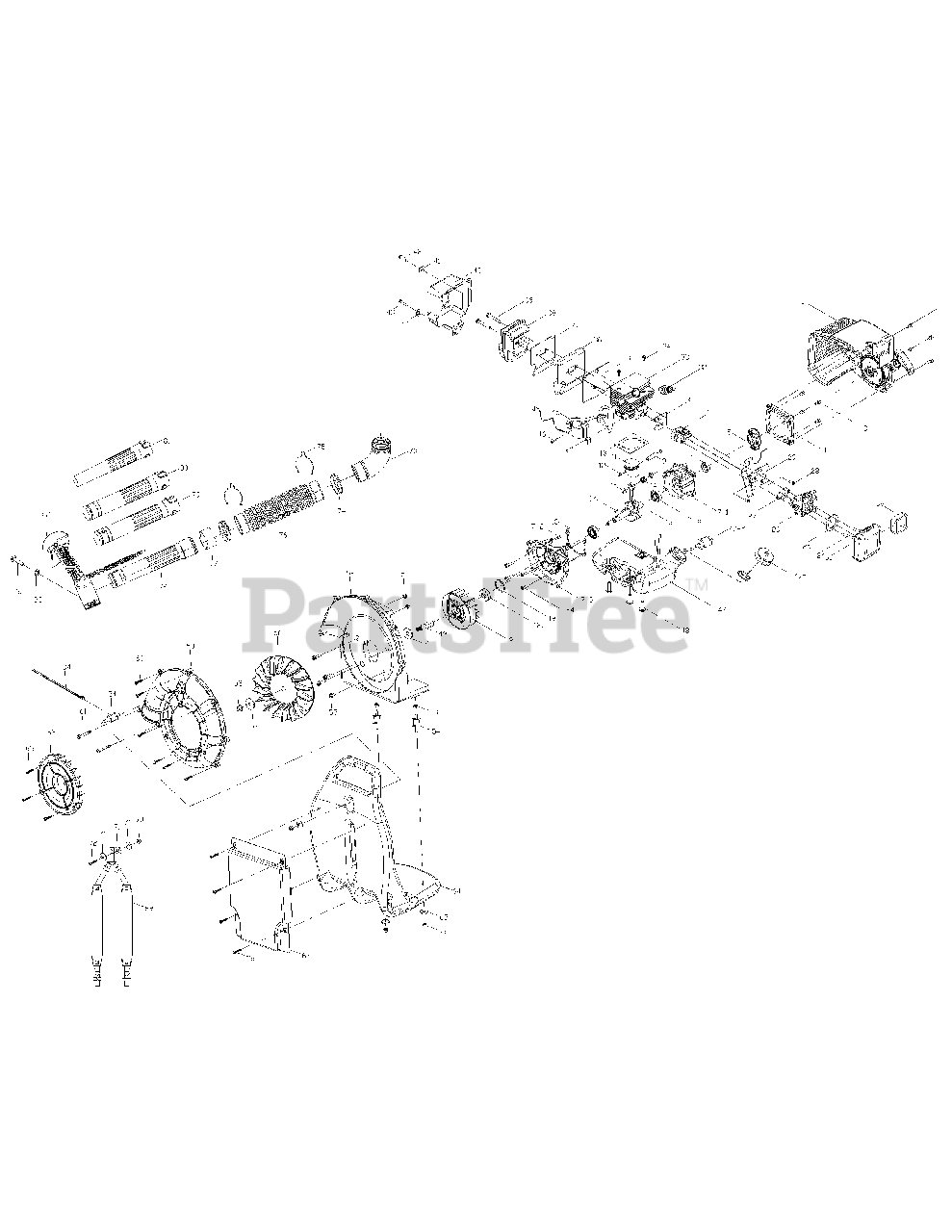

General Assembly Parts Diagram

  • Title

1

MTD 710-04507

Screw

$

$

Not available

2

MTD MC-9228-MD1801

Starter Housing Assembly

$

$

Not available

3

MTD MC-9SGKBM04-12

Screw

$

$

Not available

4

MTD MC-9081-MD1801

Connector

$

$

Not available

5

MTD MC-9228-MD0107

Pawls Assembly

$

$

Not available

6

Troy-Bilt MC-9157-332101

Oil Seal

$

$

Not available

7

Troy-Bilt 753-04839

Crank Case Assembly

$

$

Not available

8

MTD MC-9DB-600102

Ball Bearing

$

$

Not available

9

Troy-Bilt 9115-MD1501

Piston Pin

$

$

Not available

10

MTD MC-9290-MD1501

Piston

$

$

Not available

11

MTD MC-9189-MD1501

Piston Ring

$

$

Not available

12

Troy-Bilt MC-9131-MD0101

Clip, Piston

$

$

Not available

13

MTD MC-9014-MD1505

Gasket, Cylinder

$

$

Not available

14

Troy-Bilt MC-9NR-081190

Needle Bearing

$

$

Not available

15

Troy-Bilt MC-9057-MD0201

Spacer, Piston

$

$

Not available

16

MTD MC-9228-MD0112A

Crank/Rod Assembly

$

$

Not available

17

MTD MC-9221-310001

Key, Flywheel

$

$

Not available

18

MTD MC-9014-MD0102

Crank Case Gasket

$

$

Not available

19

MTD MC-9CB-28

C-Clip

$

$

Not available

20

MTD MC-9157-MD1501

Oil Seal

$

$

Not available

21

Troy-Bilt MC-9151-MD0103

Flywheel

$31.99

$

In Stock, only 1 left!

0

22

MTD MC-9228-MD1508

Air Cleaner Assembly

$

$

Not available

23

MTD MC-9183-MD0101

Filter, Air

$

$

Not available

24

Troy-Bilt MC-9SKKBM05-64

Screw

$

$

Not available

25

MTD MC-9012-MD0101

O-Ring, Air

$

$

Not available

26

MTD MC-9287-MD1502

Carburetor

$

$

Not available

27

MTD MC-9014-MD0103

Carburetor Gasket

$

$

Not available

28

Troy-Bilt MC-9SKKB-05-19

Screw

$

$

Not available

29

MTD MC-9211-MD1801

Plate

$

$

Not available

30

MTD MC-9072-MD1501

Insulator

$

$

Not available

31

Troy-Bilt MC-9014-MD1504

Gasket, Insulator

$

$

Not available

32

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

33

Troy-Bilt MC-9292-MD1501F

Cylinder

$

$

Not available

34

Troy-Bilt MC-9SRCB-05-22

Screw

$

$

Not available

35

Troy-Bilt MC-9014-MD1801

Gasket, Muffler

$

$

Not available

36

MTD MC-9082-MD1502

Muffler Heat Shield

$

$

Not available

37

MTD MC-9014-MD1502

Muffler Heat Shield

$

$

Not available

38

Troy-Bilt MC-9228-MD1502

Muffler

$

$

Not available

39

MTD MC-9SXMBJ05-53

Screw

$

$

Not available

40

MTD MC-9082-MD1501

Baffle, Muffler

$

$

Not available

41

MTD MC-9014-MD0108

Plate

$

$

Not available

42

MTD MC-9SQKB-04-12

Screw

$

$

Not available

43

MTD MC-9SQKB-04-08

Screw

$

$

Not available

44

MTD MC-9WFZ-04-12

Washer

$

$

Not available

45

MTD 753-04731

Ignition Assembly

$

$

Not available

46

Troy-Bilt MC-9SQKBM04-20

Screw

$

$

Not available

47

MTD MC-9228-MD1503

Fuel Tank Assembly

$

$

Not available

47-1

Troy-Bilt 753-1187

Oil Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 10

0

47-2

MTD MC-9182-310101Y

Filter, Oil

$

$

Not available

48

MTD MC-9SKKBY05-18

Screw

$

$

Not available

49

MTD MC-9127-MD1801

Connect Axis

$

$

Not available

50

Troy-Bilt MC-9WFZ-12.1-30

Washer

$

$

Not available

51

Troy-Bilt MC-6NGZ-05

Nut

$

$

Not available

52

MTD MC-9038-MD1801

Screw Housing

$

$

Not available

53

Troy-Bilt MC-6NDE-06

Nut

$

$

Not available

54

MTD MC-9012-320601

Vibro-Isolating Rubber

$

$

Not available

55

MTD MC-9SRCBM05-30

Screw

$

$

Not available

56

NLA

Impeller 25cc engine

Note: was MC-9151-320601, No service kit is available for this application

$

$

Not available

57

Troy-Bilt MC-9WFZ-8.4-32

Washer

$

$

Not available

58

Troy-Bilt MC-9NAC-08

Nut

$

$

Not available

59

Troy-Bilt MC-9038-320602

Screw Housing

$

$

Not available

60

Troy-Bilt 710-04232

Screw

$5.99

$

In Stock, only 2 left!

0

61

Troy-Bilt MC-9SRCB-05-75

Screw

$

$

Not available

62

MTD MC-9017-320601

Cover

$

$

Not available

63

Troy-Bilt 710-04232

Screw

$5.99

$

In Stock, only 2 left!

0

64

Troy-Bilt MC-9004-320601

Frame

$

$

Not available

65

Troy-Bilt MC-9WFZ-06-18

Washer

$

$

Not available

66

MTD MC-9NGZ-06

Nut

$

$

Not available

67

Troy-Bilt MC-9014-320601

Cushion Back

$

$

Not available

68

Troy-Bilt 728-04023

Rivet Ribbed

$

$

Not available

69

MTD MC-9149-320601

Harness

$

$

Not available

70

MTD MC-6NGZ-08

Nut

$

$

Not available

71

MTD MC-9WFZ-08-22

Washer

$

$

Not available

72

MTD MC-9SDCB-08-16

Screw

$

$

Not available

73

MTD MC-9186-320601

Elbow Pipe1

$

$

Not available

74

MTD MC-9036-320601

Hose Bend

$

$

Not available

75

MTD MC-9036-320602

Wire Clamp

$

$

Not available

76

Troy-Bilt MC-9186-320602

Flex Pipe

$

$

Not available

77

MTD MC-9189-320601

Active Ring

$

$

Not available

78

MTD MC-9186-320605

Base Pipe

$

$

Not available

79

Troy-Bilt MC-9186-320604

Middle Pipe

$

$

Not available

80

MTD MC-9186-320606

End Pipe

$

$

Not available

81

MTD MC-9186-320603

End Pipe

$

$

Not available

82

MTD MC-9228-MD1803

Throttle Lever Assembly

$

$

Not available

83

MTD MC-9WFZ-4.5-13

Washer

$

$

Not available

84

MTD MC-6032-150-02

Ligate Tape

$

$

Not available
