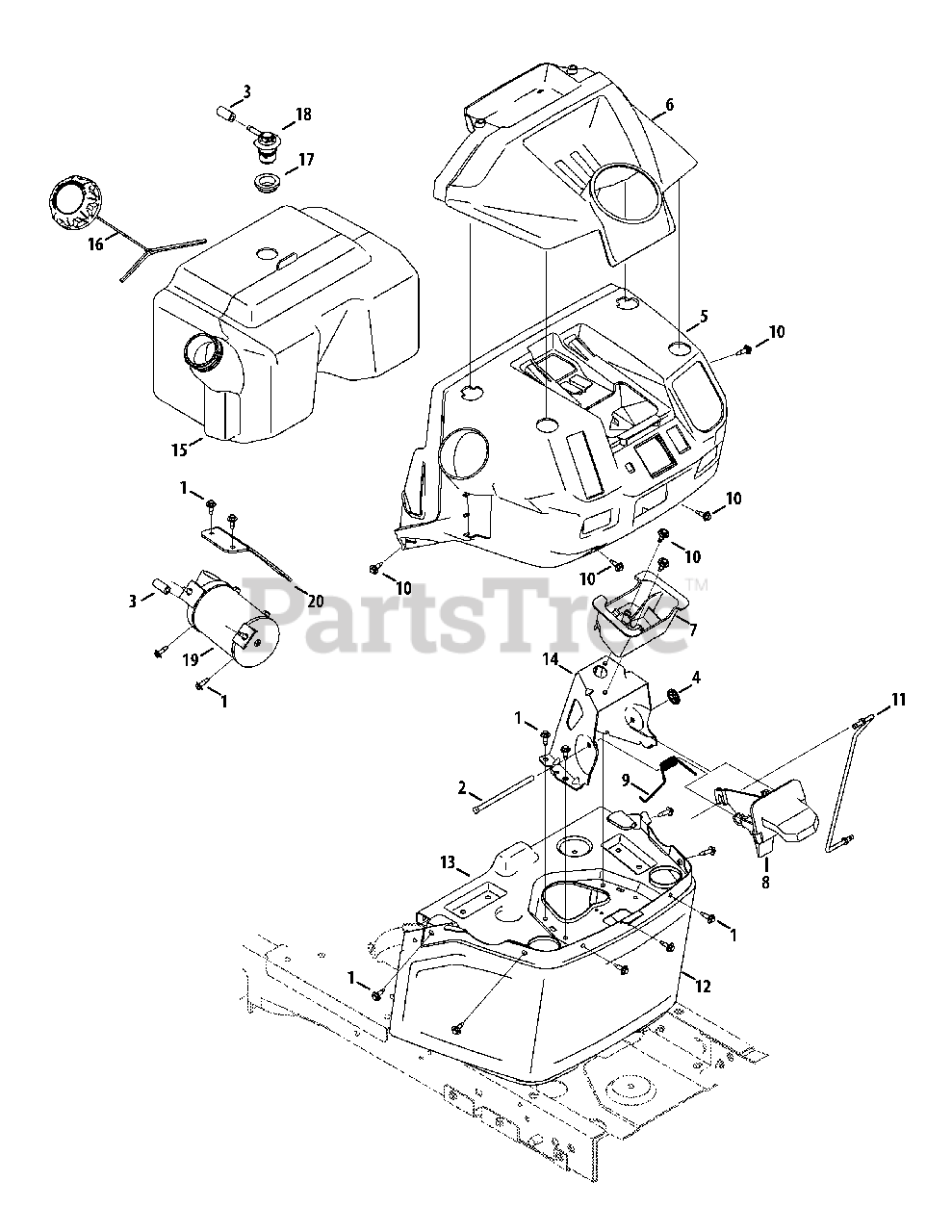

TB 2454 (13AAA2KW266) - Troy-Bilt 54" Lawn Tractor (2015) Fuel Tank & Dash Parts Diagram

54" Lawn Tractor

Fuel Tank & Dash Parts Diagram

  • Title

1

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 8

0

2

Troy-Bilt 711-06378

Hinge Pin, .25 Dia x 4.50 LG

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 751-12089-18

Hose, Vent

$6.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 926-04012

Push Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

5

Troy-Bilt 931-09815

Upper Dash
(Superseded to 931-09815B)

$63.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 931-10613

Dash Cap
(Superseded to 931-10613A)

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-10618

Steering Shaft Bearing

$14.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-10636

Dash Lever
(Superseded to 731-10636C)

$12.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 732-05199

Torsion Spring, .330 ID

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 747-06192

Control Rod
(Superseded to 747-06192A)

$16.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-08391-0637

Lower Dash
(Superseded to 783-08391B-0637)

$48.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-08453-0637

Dash Plate
(Superseded to 783-09546B-0637)

$24.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-08538-0637

Steering Bearing Mounting Bracket
(Superseded to 783-08538A-0637)

$31.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 951-05101

Tank, Fuel, 3 Gal.
(Superseded to 951-05101C)

$162.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 951-12426A

Cap, Fuel Carb
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 735-04081

Grommet, Rubber, 23.0 ID

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 751-12118

Valve, Rollover Grommet

$35.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 951-12372

Carbon Canister (CARB)
(Superseded to 951-12372A)

$71.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 783-08866

Carbon Canister Bracket (CARB)

Variations

Troy-Bilt 783-08866-0637

Carbon Canister Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0
