TB 2454 (13AAA2KW066) - Troy-Bilt 54" Lawn Tractor (2015) Mower Deck 54-Inch Parts Diagram

54" Lawn Tractor

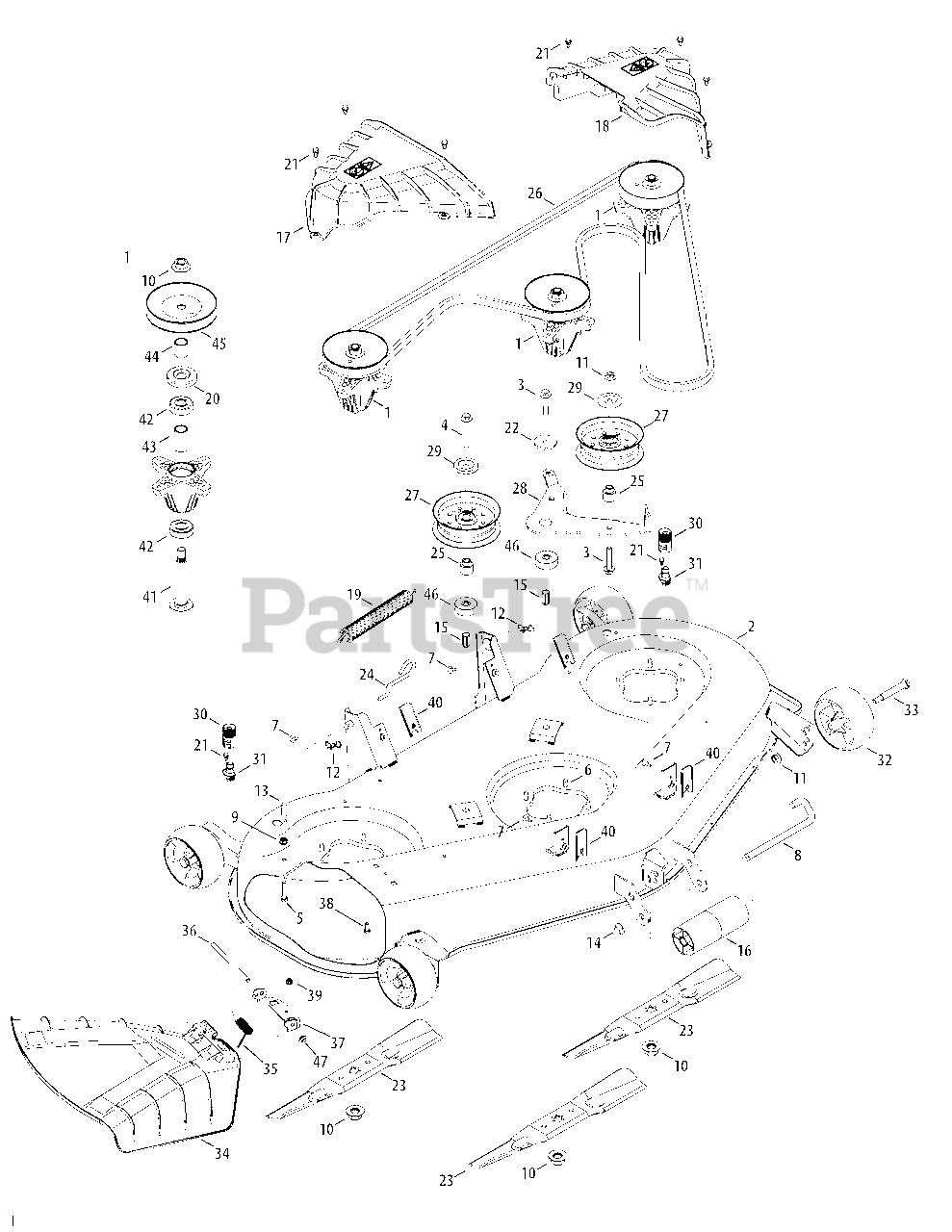

Mower Deck 54-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-06978

Spindle Ass’y, Pulley, 5.37 Dia

$140.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 983-05104-0637

Deck, 54"
(Superseded to 983-05104C-0637)

$1030.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-06178

Hex Cap Screw, 3/8-16 x 2.00

$6.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-06214

Hex Cap Screw, 3/8-16 x 2.75

$7.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 10

0

8

Troy-Bilt 711-06377

Roller Pin, 1/2 x 7.31 Lg

$20.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 7

0

13

Troy-Bilt 720-05075

Vinyl Cap, .29 x 1.00

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 728-05016

Rivet Nut, 3/8-16

$5.99

$

In Stock, Qty 10

0

16

Troy-Bilt 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-09968

Belt Cover, RH
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-09969A

Belt Cover, LH
(Superseded to 731-09969C)

$28.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-04927

Spring, Extension, 1.25 OD x 8.5

$22.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-05082

Shoulder Spacer, .970 x .190

$8.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 942-05056A

Blade, Cut, 18.67" 2-In-1

$30.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-05037A

Shoulder Spacer
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 954-05025A

Belt, V-Type, B Sec x 139

$87.99

$

In Stock, Qty 15

0

27

Troy-Bilt 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 783-08309A

Pivot Idler bracket
(Superseded to 783E08309B)

Variations

Troy-Bilt 783-08309A-0637

Idler Pivot Bracket - POWDER BLACK (0637)

$42.99

$

In Stock, only 2 left!

0

$42.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 631-05116

Chute Deflector Assembly
(Superseded to 631-05116B)

$54.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

Troy-Bilt 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

38

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 783-08404A-0637

Bracket, Lift, Stop

$5.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 738-1186A

Shaft, Spindle, 6.11

$49.99

$

In Stock, Qty 14

0

42

Troy-Bilt 941-0919B

Bearing, Ball, .787id x 1.85 Od x .551

$21.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 750-06152

Spacer, .792 x 1.060 x 1.782

$6.49

$

In Stock, Qty 8

0

45

Troy-Bilt 756-05038

Pulley, Deck, 4.50 Dia.

$25.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 750-06184

Spacer, .385 ID x 1.75 OD x .585

$11.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0
