TB 2454 (13AAA2KW066) - Troy-Bilt 54" Lawn Tractor (2015) Drive System Parts Diagram

54" Lawn Tractor

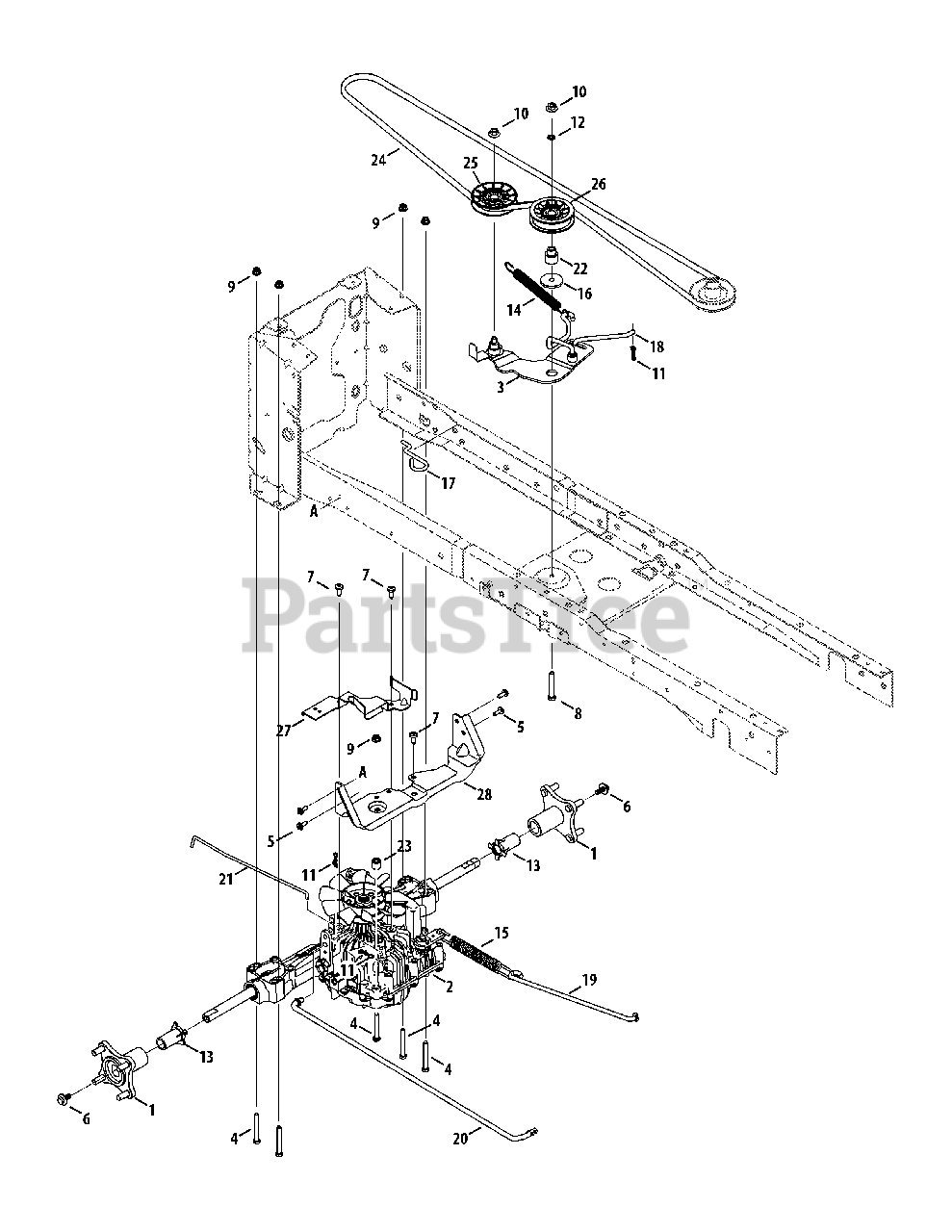

Drive System Parts Diagram

  • Title
1

Troy-Bilt 918-04228A

Hub Assembly, Wheel

$50.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 918-07009

Transmission, Tuff Torq K46
(Superseded to 753-08707)

$

$

Not available

3

Troy-Bilt 983-05090A

Idler bracket Assembly

$73.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-0378

Hex Screw, 5/16-18, 2.50, Gr5, Std

$4.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 13

0

6

Troy-Bilt 710-06154B

Screw, 5/16-24 x .850

$4.49

$

In Stock, Qty 10

0

7

Troy-Bilt 710-1611B

Screw, Self-tapping, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-3011

Hex Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 726-0201

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-09827A

Sleeve, .765 ID x 1.575

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-05108A

Spring, Extension, .790 Dia x 8.41

$12.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-05146

Spring, Extension, .90 Dia x 8.14

$12.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 747-06193

Idler Link
(Superseded to 747-06193B)

$11.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 747-06251A

Rod, Brake, Tuff Torq
(Superseded to 747-06251C)

$12.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 747-06281A

Rod, Control, Tuff Torq
(Superseded to 747E06281A)

$18.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 747-06447

Rod, Transmission, Bypass

$8.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 748-05037A

Shoulder Spacer
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 11

0

23

Troy-Bilt 750-06201

Spacer, .34 x .75 x .63

$4.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 954-05027A

Belt, V-Type
(Superseded to 954-05027B)

$63.99

$

In Stock, Qty 17

0

25

Troy-Bilt 756-05024

Idler Pulley, 3.56 OD

$25.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 756-05032

Idler Pulley, 3.00 OD

$26.99

$

In Stock, Qty 10

0

27

Troy-Bilt 783-08342-0637

Belt Keeper Bracket
(Superseded to 783-08342A-0637)

$13.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 783-08463-0637

Transmission Bracket
(Superseded to 783-08463A-0637)

$34.99

$

Usually ships in 3-6 days

0
