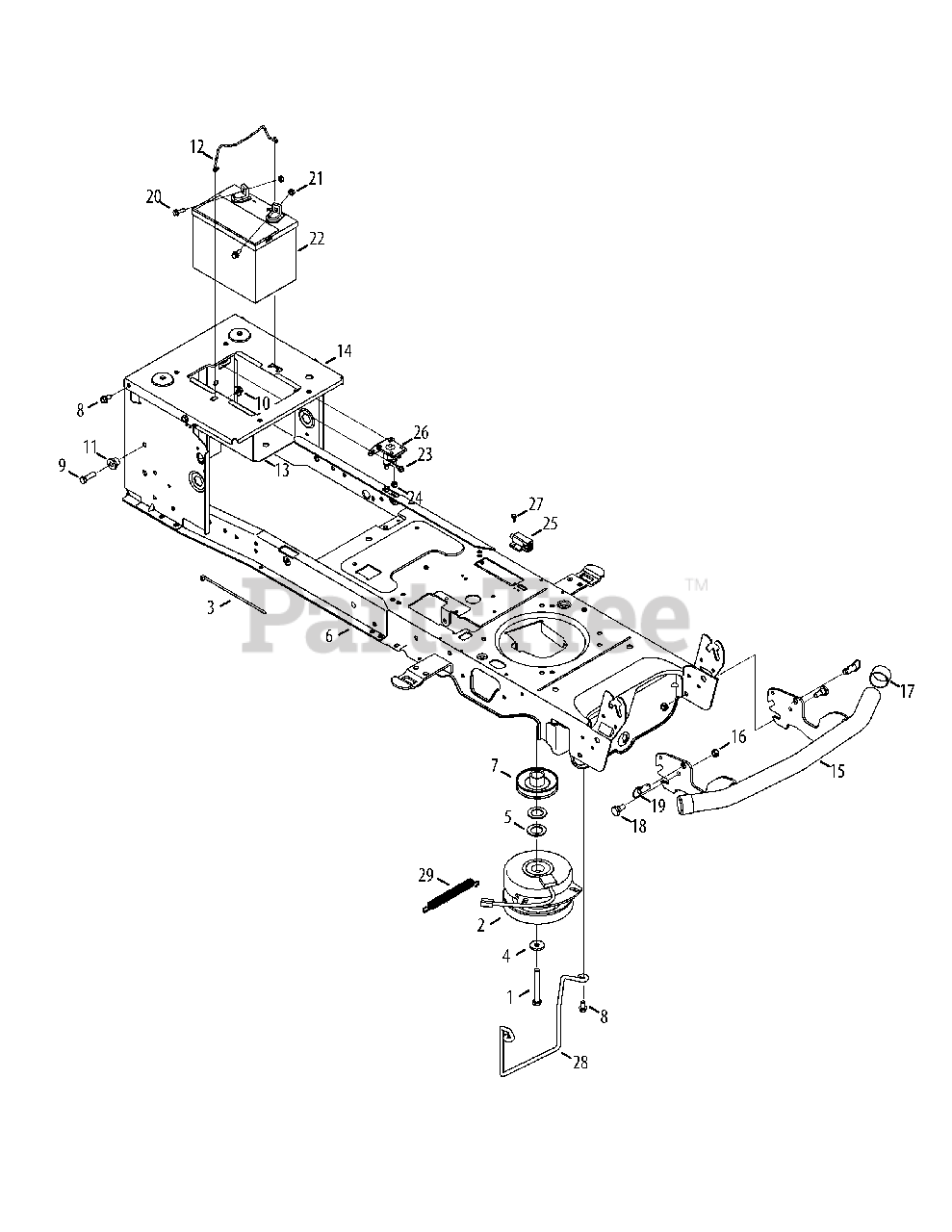

TB 2450 (13AA93KP066) - Troy-Bilt 50" Lawn Tractor (2014) PTO & Battery Parts Diagram

50" Lawn Tractor

PTO & Battery Parts Diagram

  • Title

1

Troy-Bilt 710-04379A

Hex Head Screw, 7/16-20 x 3.50

$6.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 917-05122

Electric PTO Clutch
(Superseded to 917-05122A)

$515.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 725-06019

Clutch Wire Jumper

$31.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0322

Washer, Flat, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

5

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 683-04469D-0637

Frame

$495.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 756-0978B

Electric PTO Engine Pulley

$66.99

$

In Stock, Qty 13

0

8

Troy-Bilt 710-04484

Taptite Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3005

Hex Head Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 747-04121A

Battery Holder Rod

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 783-0349-0637

Battery Tray

$

$

Not available

14

Troy-Bilt 783-06089

Seat Frame Bracket

Variations

Troy-Bilt 783-06089-0637

Seat Frame Bracket - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-06089-0638

BRACKET-SEAT FRAME - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-06089-0606

BRACKET-SEAT FRAME - MAJESTIC ORANGE (0606)

$

$

Not available

$49.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 683-04219B-0637

Bumper

Note: If Equipped

$60.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 712-0130

Hex Lock Nut, 3/8-16

Note: If Equipped

$3.99

$

In Stock, Qty 11

0

17

Troy-Bilt 731-08049

Bumper Cap
(Superseded to 731-08049A)

Note: If Equipped

$

$

Not available

18

Troy-Bilt 738-0143

Shoulder Bolt, .496 x .336

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-04061

Quick Release Pin

Note: If Equipped

$21.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-04666

Hex Head Flange, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 925-1707D

Battery

$

$

Not available

23

Troy-Bilt 710-0653

Taptite Screw, 1/4-20 x 0.375

$4.49

$

In Stock, Qty 8

0

24

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 13

0

26

Troy-Bilt 725-06153

Solenoid, 12V
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 7

0

27

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

28

Troy-Bilt 747-05195

Belt Keeper Rod

$35.99

$

In Stock, Qty 8

0

29

Troy-Bilt 732-0814

Spring, Extn, .56 Dia X 5.52

$7.99

$

In Stock, only 4 left!

0

Troy-Bilt 925-04104

Wire harness, Main

Note: (not shown)

$220.99

$

Usually ships in 3-6 days

0
