TB 2450 (13AA92KP066) - Troy-Bilt 50" Lawn Tractor (2013) Steering & Axle Parts Diagram

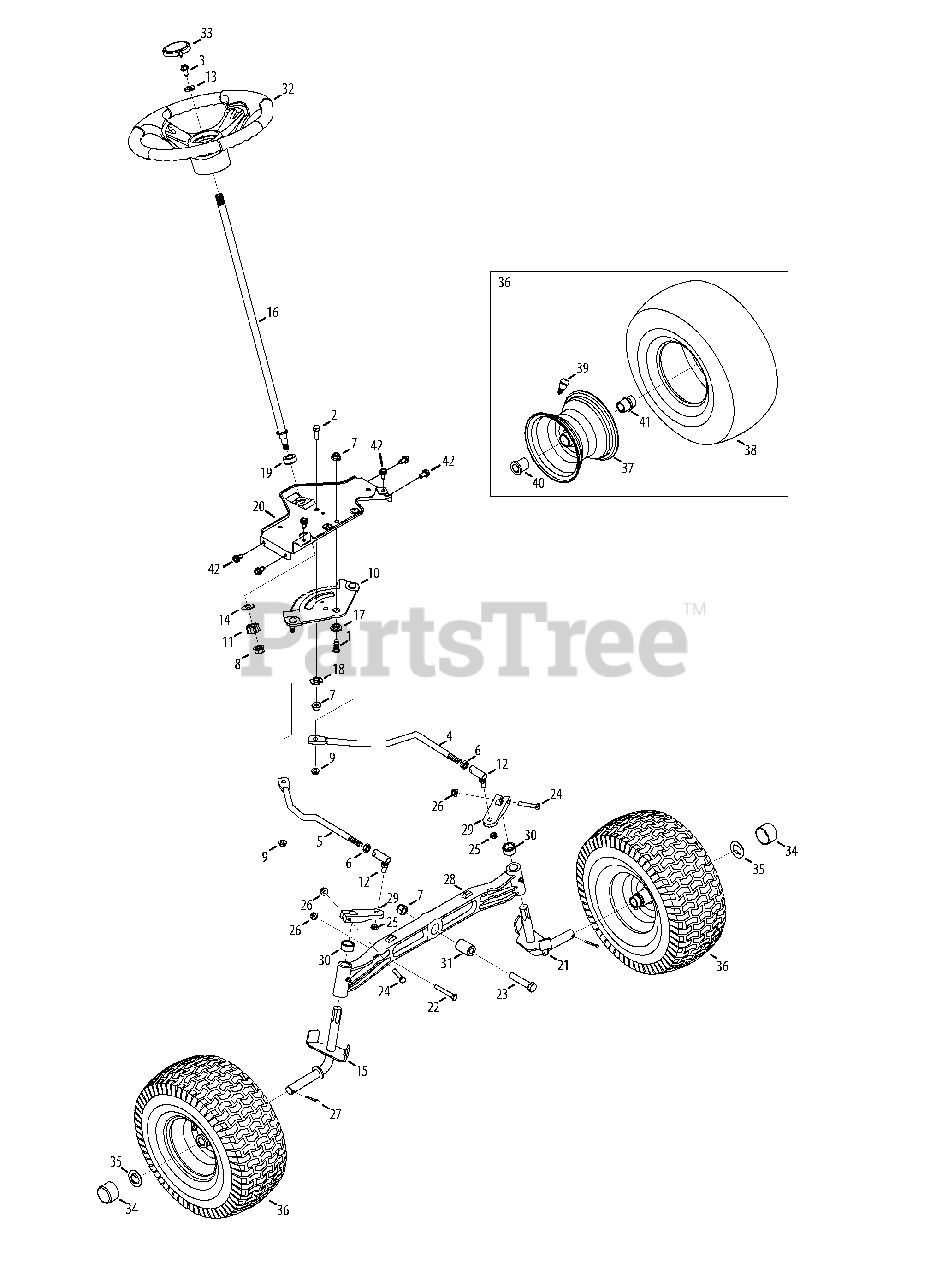

50" Lawn Tractor

Steering & Axle Parts Diagram

  • Title

1

Troy-Bilt 710-04095

Hex Head Screw, 3/8-16:1.00

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Head Screw, 5/16-18:1.00

$6.99

$

In Stock, Qty 5

0

4

Troy-Bilt 711-04998

LH Drag Link

$27.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 711-04999

RH Drag Link

$27.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0459

Flangelock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 717-1550F

Steering Gear

$70.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12 x .06:HT

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 638-04036P

RH Axle Assembly

$

$

Not available

16

Troy-Bilt 738-04263

Steering Shaft, .625 OD x 24.25 LG

$68.99

$

In Stock, Qty 7

0

17

Troy-Bilt 738-04363

Shoulder Spacer, .385X 1.25 x .3025

$5.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 738-04364B

Spacer, .38 x 1.375

$6.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 741-04237B

Hex Flange Bearing 5/8 PM

$6.99

$

In Stock, Qty 18

0

20

Troy-Bilt 783-06043-0637

Steering Support Bracket

$

$

Not available

21

Troy-Bilt 638-04037P

LH Axle Assembly

$49.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0395

Hex Head Screw, 5/16-18:2.25

$4.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-0859

Hex Head Screw, 3/8-16:2.50

$6.99

$

In Stock, Qty 16

0

24

Troy-Bilt 710-3180

Hex Head Screw, 5/16-18:1.75

$5.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 912-0214

Hexlock Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

26

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 714-0162

Cotter Pin, 5/32:1.25

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 719-04413A

Pivot Bar Axle

$241.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 748-04278-0637

Steering Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 748-04068

Spacer, .71 ID x .125 OD x .56LG

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 750-05280

Spacer, .385 x 1.00 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

Troy-Bilt 631-04008A

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 731-08049

Bumper Cap
(Superseded to 731-08049A)

$

$

Not available

35

Troy-Bilt 736-04228A

Flat Washer, .781ID x 1.590OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 634-04466-0911

Wheel Assembly

$100.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 934-04082-0662

Rim Assembly
(Superseded to 934-04082-4042)

$131.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 734-1727

Tire

$56.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 741-0516B

Flange Bearing, .760 x 1.00 x 1.20LG

$6.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 741-0990B

Flange Bearing, .760ID

$10.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0
