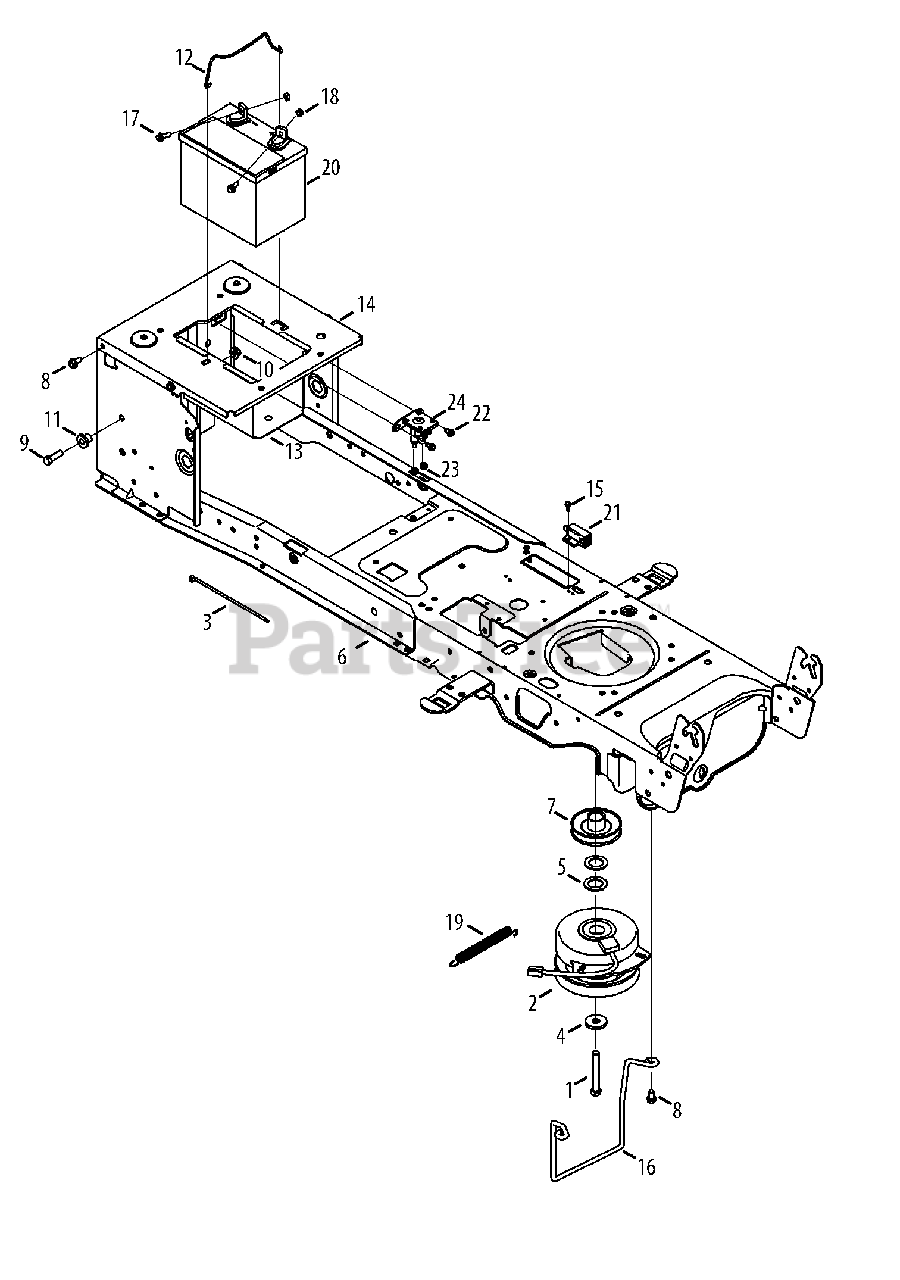

TB 2450 (13AA92KP066) - Troy-Bilt 50" Lawn Tractor (2013) PTO & Battery Parts Diagram

50" Lawn Tractor

PTO & Battery Parts Diagram

  • Title
1

Troy-Bilt 710-04379A

Hex Head Screw, 7/16-20:3.50

$6.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 917-05122

Electric PTO Clutch
(Superseded to 917-05122A)

$515.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 725-06019

Clutch Harness Wire 11.625"

$31.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0322

Washer, Flat, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

5

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 683-04469C-0637

Frame
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 756-0978B

Electric PTO Engine Pulley

$66.99

$

In Stock, Qty 13

0

8

Troy-Bilt 710-04484

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3005

Hex Head Screw, 3/8-16:1.25

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 747-04121A

Battery Holder Rod

$6.49

$

In Stock, Qty 20+

0

13

$

$

Not available

14

Troy-Bilt 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 738-04237A

Shoulder Screw, #10-32:.500

$6.49

$

In Stock, Qty 7

0

16

Troy-Bilt 747-05195

Belt Keeper Rod

$35.99

$

In Stock, Qty 8

0

17

Troy-Bilt 710-04666

Hex Head Flange, 1/4-20:.75

$6.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-0814

Spr, Extn, .56 Dia X 5.52

$7.99

$

In Stock, only 4 left!

0

20

$

$

Not available

21

Troy-Bilt 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 13

0

22

Troy-Bilt 710-0653

Taptite Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 8

0

23

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 725-04439

Solenoid, 12 V
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-04104

Wire harness, Main

Note: (not shown)

$220.99

$

Usually ships in 3-6 days

0
