TB 2350 (13AAA1KQ066) - Troy-Bilt 50" Lawn Tractor, Hydro Drive (2017) Deck Parts Diagram

50" Lawn Tractor, Hydro Drive

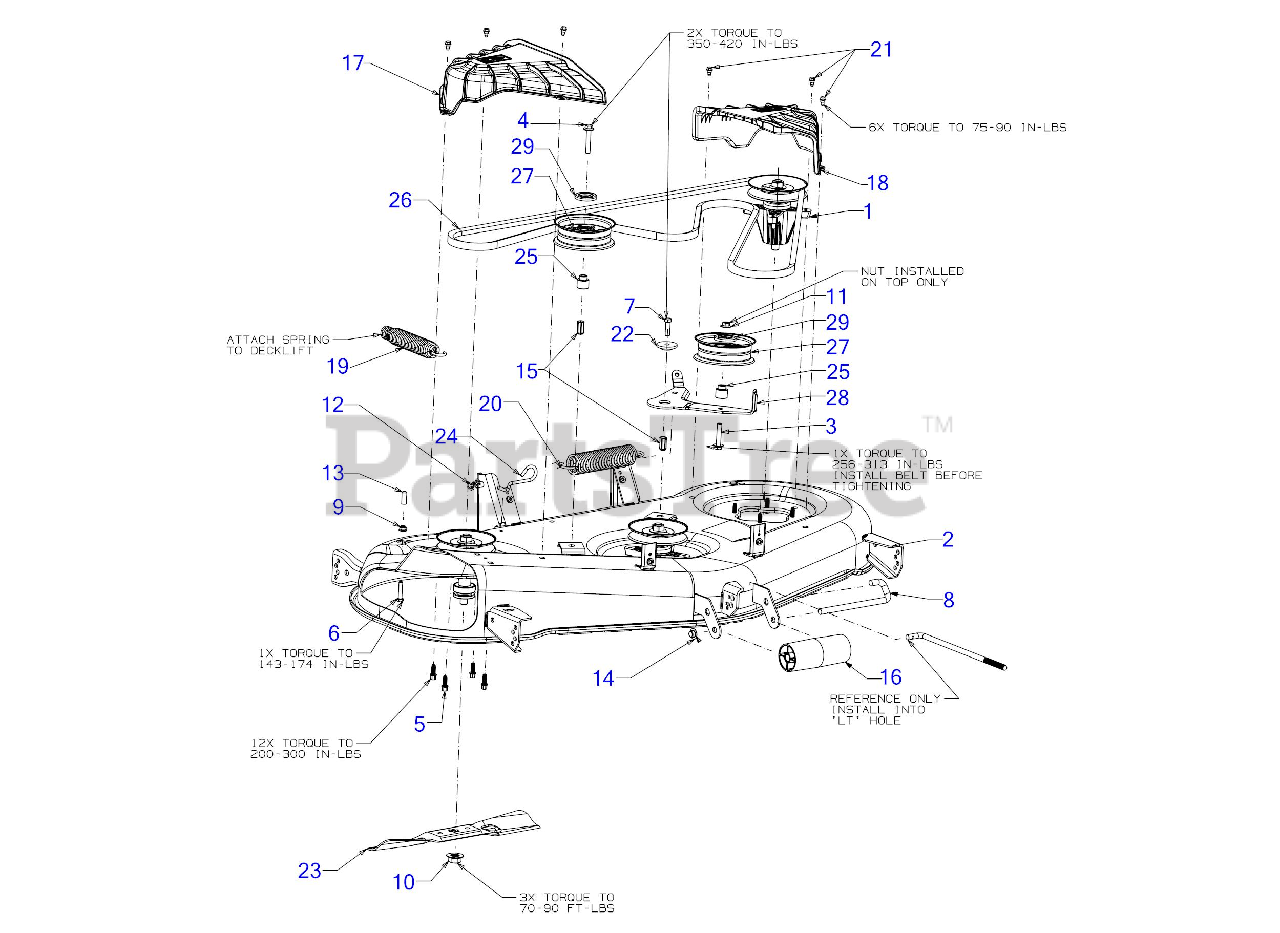

Deck Parts Diagram

  • Title

1

Troy-Bilt 918-06981

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$147.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 983-05103B-0637

50" DECK SHELL
(Superseded to 983-05103D-0637)

$1079.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-06178

SCREW 3/8-16 x 2.0

$6.49

$

In Stock, Qty 5

0

4

Troy-Bilt 710-06215

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-06322

SCREW 5/16-18 X .875

$5.49

$

In Stock, Qty 5

0

6

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

8

Troy-Bilt 711-06377

ROLLER PIN 1/2 x 7.31

$20.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 728-05016

NUT RIVET 3/8-16

$5.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-09968

SPINDLE COVER (RH)
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-09969A

SPINDLE COVER (LH)
(Superseded to 731-09969C)

$28.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-05242

LIFT ASSIST SPRING
(Superseded to 732-05242C)

$22.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 732-05549

EXTESION SPRING 1.75 OD X 8.5 LG
(Superseded to 732-04927)

$22.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-05082

SHOULDER SPACER

$8.49

$

In Stock, Qty 6

0

23

Troy-Bilt 942-05052A

17.27" BLADE (2N1)

$28.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 747-06904

DECK SPRING HOOK

$7.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 11

0

26

Troy-Bilt 954-04077A

V-BELT B SEC x 134

$82.99

$

In Stock, Qty 14

0

27

Troy-Bilt 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 783E08309B

IDLER PIVOT BRACKET

$42.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+
