TB 2246 (13WX91KT066) - Troy-Bilt 46" Lawn Tractor (2011) Seat & Fender Parts Diagram

46" Lawn Tractor

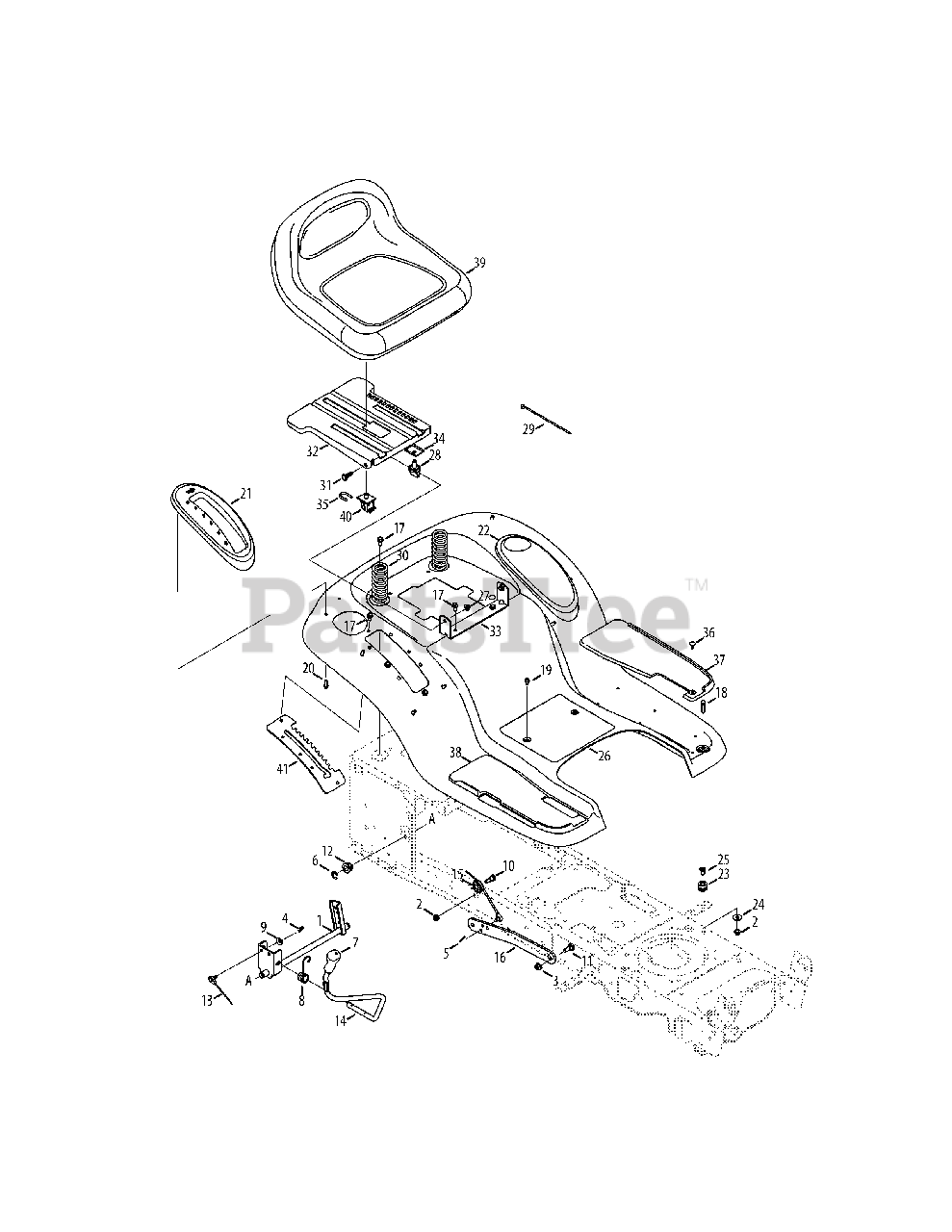

Seat & Fender Parts Diagram

  • Title

1

Troy-Bilt 683-04223-0637

Shaft Ass’y, Lift

$

$

Not available

2

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 716-0106A

Ring, E Type, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

9

Troy-Bilt 736-0105

Washer, Spring, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 738-0138A

Screw, Shoulder, .437 x .470, 5/16-18

$6.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 938-0380

Bolt, Shoulder, .500, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 747-04962A

Handle, Lift,

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 756-04331

Pulley, Roller, Cable

$6.99

$

In Stock, Qty 13

0

16

Troy-Bilt 783-05546A-0637

Lift Link

$20.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0895

Screw, HL, 1/4-15, 0.750,

$6.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 731-06795

Cover, Lift Lever

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 735-0690

Grommet, .4375 ID x .750

$11.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 736-3078

Washer, Flat .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 750-3310

Spacer, Flange, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-06259-0638

Fender

$339.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 720-04061

Knob, 3/8-16, .875

$5.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 732-04849

Spring, Comprs, 1.50 x 3.90 x .200

$13.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 938-0296

Screw, Shoulder, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 783-06049-0638

Bracket, Mounting, Seat

$63.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-06088-0638

Bracket, Pivot, Seat
(Superseded to 783-06088A-0638)

$21.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 783-06266-0637

Bracket, Knob Adjustment, Seat

$8.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 783-06448

Clip, Retaining, Switch

$5.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

37

Troy-Bilt 735-04138

Pad, Foot, LH

$16.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 735-04158

Pad, Foot, RH

$16.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 757-04086

Seat
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 925-05013

Switch, Seat

$31.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 783-06443-0637

Bracket, Lift, Man PTO, 6 Pos

$20.99

$

Usually ships in 3-6 days

0
