TB 2246 (13WX91KT066) - Troy-Bilt 46" Lawn Tractor (2011) Drive & Rear Wheels Parts Diagram

46" Lawn Tractor

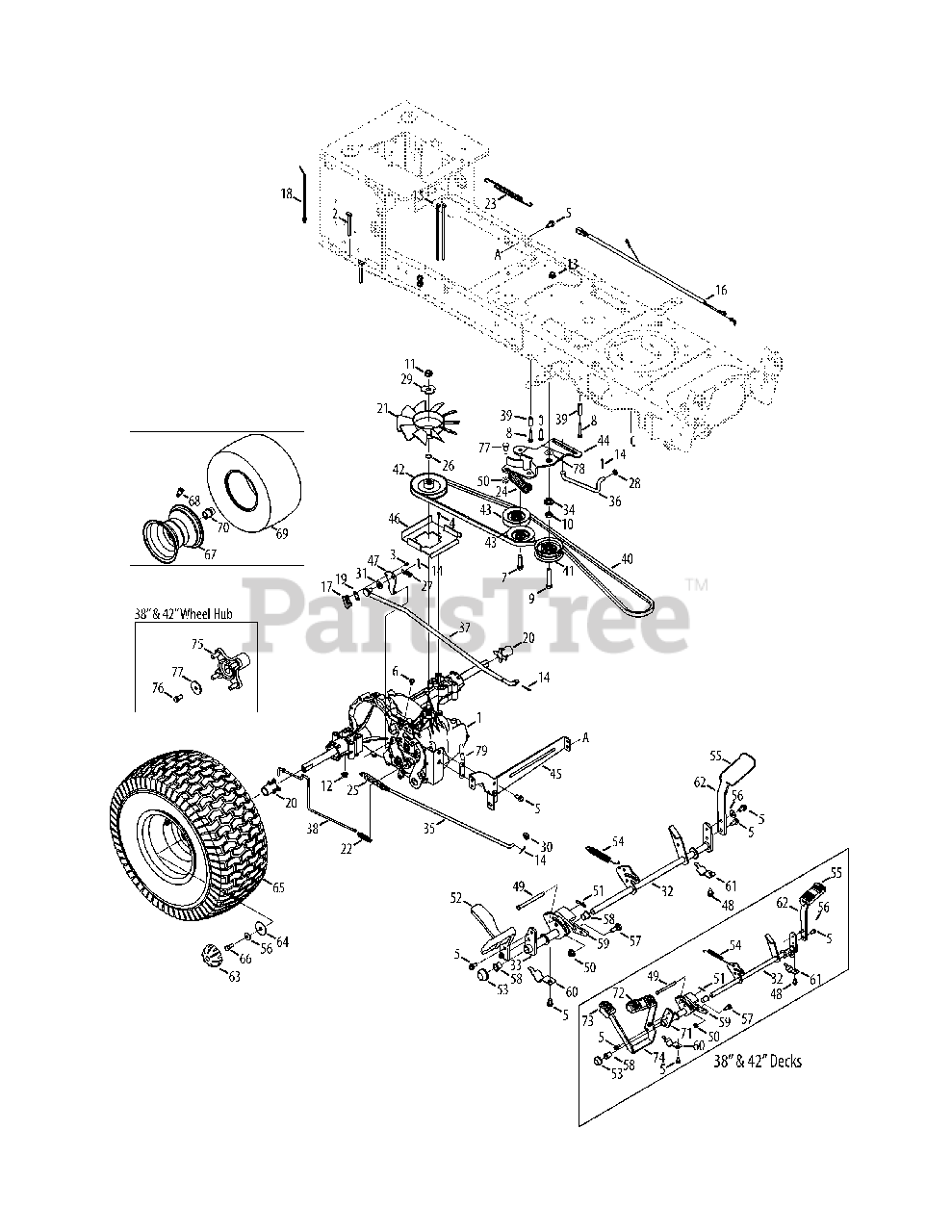

Drive & Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 918-0319

Hydro Transmission

$

$

Not available

2

Troy-Bilt 710-0176

Hex Screw, 5/16-18:2.75

$4.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0227

Screw, #8-18:0.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0351

Screw, #10-16:0.500

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-04484

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0653

Taptite Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 8

0

7

Troy-Bilt 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-1325

Taptite Screw, 1/4-20:1.625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3011

Hex Screw, 3/8-16:2.25

$6.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 912-0346

Nut, Jamlock, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

12

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0431

Flangelock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

15

Troy-Bilt 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

18

Troy-Bilt 926-0154

Push Mount Cable Tie 7.5 LG

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

20

Troy-Bilt 731-05299A

Sleeve, .765 ID x 1.500 LG, 46"

$4.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 932-0209

Extension Spring, .48 OD X 2.03

$7.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 732-04606

Extension Spring, .500 DIA X 12.6 LG

$12.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 732-04624

Extension Spring, 1.00 DIA X 4.75

$10.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 732-3118

Extension Spring, .375 OD X 1.44 LG

$10.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 936-0264

Washer, Flat, .330 X .630 X .0635

$6.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 736-04263

Washer, Lock, TRANS HYDRO

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 936-3008

Washer, Flat, .344 X .750 X .120

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 736-3010

Washer, Flat, .407X.812X.135:HT

$4.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 647-04152A

Brake Control Assembly, 46"
(Superseded to 647-04152D)

$

$

Not available

33

Troy-Bilt 683-04537

Hydro Pedal Bracket Assembly
(Superseded to 683-04537A)

$

$

Not available

34

Troy-Bilt 738-04420

Spacer, Shoulder, 1.375 X .380 X .183

$6.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 747-04139

Rod, Brake, Hydro

$24.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 747-04957A

Rod, Transmission, Footpedal Bypass

$13.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 747-04979

Rod, Control, Hydro

$116.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 747-04991

Rod, Hydro Bypass

$9.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 750-04456

Spacer, .260 X .372 X 1.420 LG

$7.49

$

In Stock, only 3 left!

0

40

Troy-Bilt 954-04207

Belt, V Type, Poly

$38.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 756-04308

Pulley, Input, 4.13 DIA

$31.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 756-04325

Pulley, Idler, V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 783-06027A

Bracket, Idler, Center Double
(Superseded to 783-06027B)

$

$

Not available

45

Troy-Bilt 783-06133-0637

Bracket, Mount, Hydro

$31.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 783-06260-0637

Bracket, Support, Belt Disengage

$

$

Not available

47

Troy-Bilt 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 710-0604A

Taptite Screw, 5/16-18:0.625

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 711-05068

Clevis Pin, 5/16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

54

Troy-Bilt 732-04587

Extension Spring, .63 DIA x 4.95 LG

$7.49

$

In Stock, Qty 12

0

55

Troy-Bilt 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 783-05914

Pedal Support Bracket

$7.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 783-05940

Pedal Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt 736-0430

Washer, Flat, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

65

Troy-Bilt 634-0104-0911

Wheel Assembly

$144.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

67

Troy-Bilt 634-04369-0662

Rim Assembly, Plastic Bead, 46"

$165.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 734-1730-0901

Tire, 20 x 8 x 8, 38" & 46"

$99.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 941-0490

Axle Hub

$13.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 683-04488

Hydro Pedal Bracket Assembly
(Superseded to 983-04488)

Note: 38" & 42" decks

$40.99

$

In Stock, only 4 left!

0

72

Troy-Bilt 735-04118A

Reverse Pedal Pad

Note: 38" & 42" decks

$14.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 735-04135

Forward Pedal Pad

Note: 38" & 42" decks

$7.99

$

In Stock, Qty 8

0

74

Troy-Bilt 783-06059-0637

Drive Pedal Bracket

Note: 38" & 42" decks

$50.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 918-04228

Wheel Assembly Hub
(Superseded to 918-04228A)

Note: 38" & 42" decks

$50.99

$

In Stock, Qty 5

0

76

Troy-Bilt 710-0627

Hex Screw, 5/16-24:.750

$4.49

$

In Stock, Qty 20+

0

77

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

78

Troy-Bilt 738-0430

Scr, Shldr, .50 x .685 3/8-16

$11.99

$

In Stock, only 2 left!

0

79

Troy-Bilt 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

80

Troy-Bilt 747-05444

Belt Keeper Rod
(Superseded to 747-05444A)

$10.99

$

In Stock, only 1 left!

0
