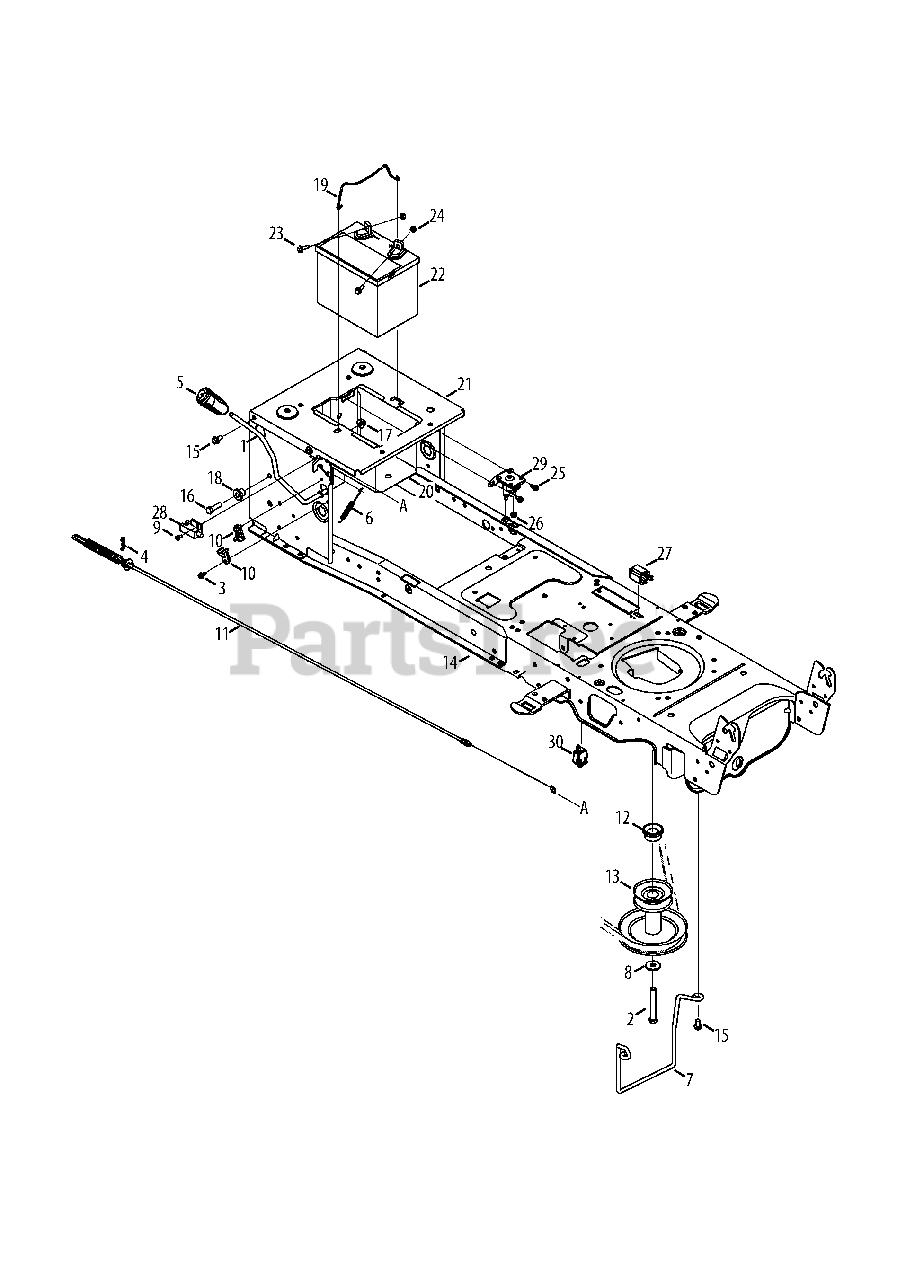

TB 2246 (13AT91KT066) - Troy-Bilt 46" Lawn Tractor (2013) Manual PTO & Battery Parts Diagram

46" Lawn Tractor

Manual PTO & Battery Parts Diagram

  • Title
1

Troy-Bilt 647-04151

Handle Ass’y, PTO

$22.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-04379A

Hex Screw, 7/16-20, 3.50, Gr5, Lock

$6.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04049A

Grip, Handle, 3/8

$16.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 732-0932

Spring, Ext, .38 Dia x 5.6

$14.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 747-05171A

Belt Keeper Rod

$32.99

$

In Stock, Qty 8

0

8

Troy-Bilt 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

9

Troy-Bilt 738-04237A

Screw, Shoulder, #10-32, .500

$6.49

$

In Stock, Qty 7

0

10

Troy-Bilt 741-04119A

Bearing, PTO

$4.99

$

In Stock, Qty 18

0

11

Troy-Bilt 946-04618B

Cable, Engag, Deck
(Superseded to 946-04618C)

$46.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 750-0956

Spacer, 1.010 x 1.400 x .825

$19.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 956-04067A

Pulley, Engine, 3.56 x 6.12 Dia.
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 683-04469C-0637

Frame Ass’y, Lower
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3005

Hex Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 10

0

17

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-04058

Spacer, Shoulder, .38 x 1.0 x .70

$4.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 747-04121A

Rod, Battery

$6.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 783-0349-0637

Tray, Battery

$

$

Not available

21

Troy-Bilt 783-06089-0637

Bracket, Frame, Seat

$57.99

$

In Stock, only 1 left!

0

22

$

$

Not available

23

Troy-Bilt 710-04666

Hex Flange Screw, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

25

Troy-Bilt 710-0653

Screw, Self-tapping, 1/4-20, 0.375,

$4.49

$

In Stock, Qty 13

0

26

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Grf,

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 725-04232

Switch, 3-Pole

$49.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-04439

Solenoid, 12V
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 725-04807

Switch, Plunger, Snap Mount

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 925-04105

Wire Harness, Main

Note: (not shown)

$214.99

$

Usually ships in 3-6 days

0
