TB 2246 (13AAA1KT066) - Troy-Bilt 46" Lawn Tractor, Hydro Drive (2015) Mower Deck 46-Inch Parts Diagram

46" Lawn Tractor, Hydro Drive

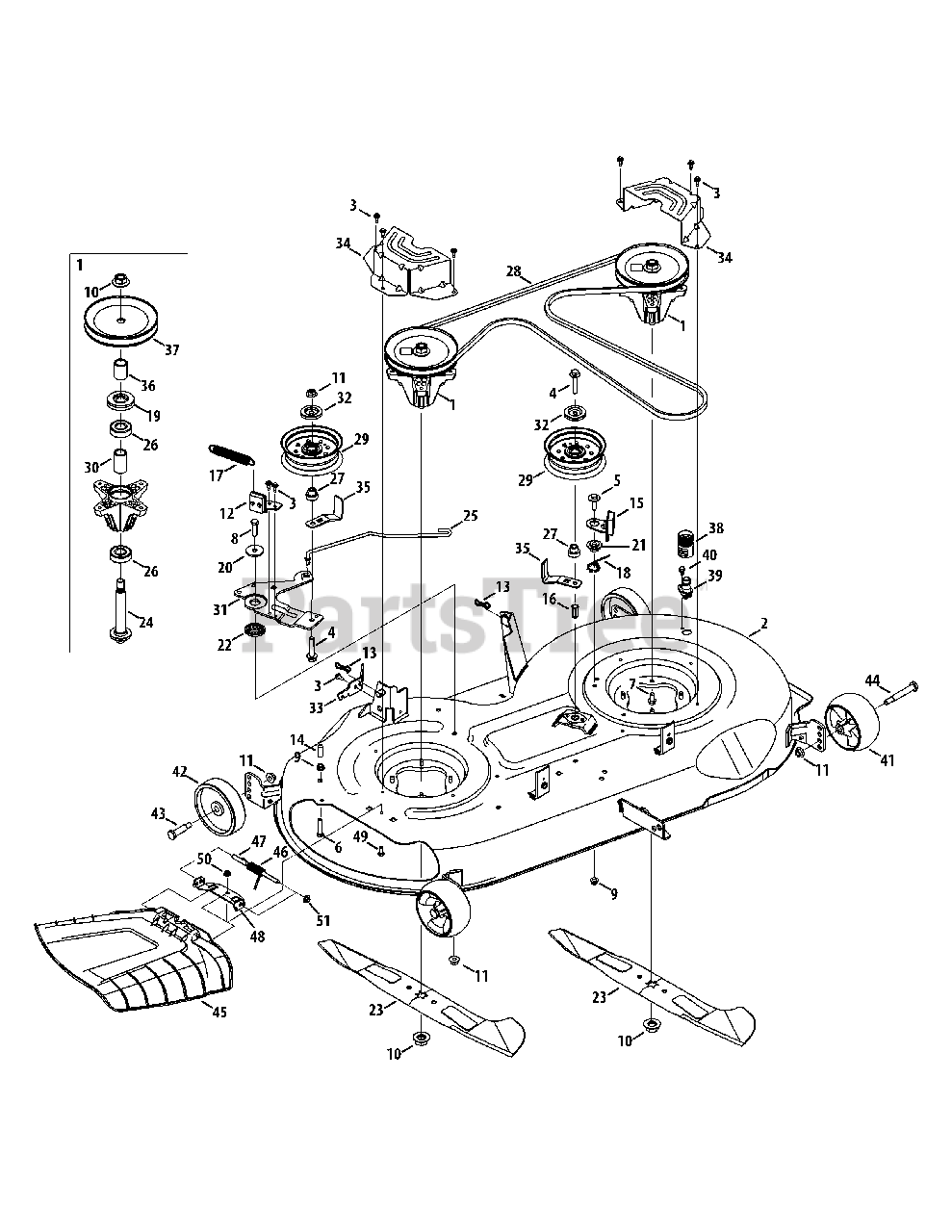

Mower Deck 46-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-06977

Spindle Ass’y, Pulley, 6.93 Dia
(Superseded to 918-06977A)

$147.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 983-05078-0637

Deck, 46"
(Superseded to 983-05078B-0637)

$949.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 13

0

4

Troy-Bilt 710-06178

Hex Cap Screw, 3/8-16 x 2.00

$6.49

$

In Stock, Qty 5

0

5

Troy-Bilt 710-06213

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

9

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 983-05182

Brake Assembly, Deck, RH
(Superseded to 983-05182B)

$99.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 720-05075

Vinyl Cap, .29 x 1.00

$4.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 983-05183

Brake Assembly, Deck, LH
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 728-05016

Rivet Nut, 3/8-16

$5.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 732-04629

Spring, Extension, .750 x .477

$28.99

$

In Stock, Qty 6

0

18

Troy-Bilt 732-05151

Spring, Torsion, LH Brake
(Superseded to 732-05151A)

$4.49

$

In Stock, Qty 12

0

19

Troy-Bilt 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

21

Troy-Bilt 738-05088

Shoulder Spacer, .75 x .145

$4.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 738-05099

Shoulder Spacer, .854 x .191

$7.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 942-04244A

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-1010A

Shaft, Spindle, 5.75

$46.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 747-06452

Rod, Brake, Deck

$14.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 941-0919B

Bearing, Ball, .787id x 1.85 Od x .551

$21.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 954-05022A

Belt, V-Type, A Sec x 108.3

$63.99

$

In Stock, Qty 8

0

29

Troy-Bilt 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 783-08284

Idler Bracket
(Superseded to 783-08284A)

Variations

Troy-Bilt 783-08284-0637

Idler Pivot Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$

$

32

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 783-08406-0637

Bracket, Cable, PTO

$9.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 783-08547-0637

Belt Cover

$14.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 783-08690-0637

Belt Keeper
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 750-06142

Spacer, .800 x 1.10 x 1.470

$5.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 756-05030

Pulley, Deck, 6.74 Dia.

$25.99

$

In Stock, Qty 6

0

38

Troy-Bilt 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 6

0

40

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 18

0

41

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 938-0373

Bolt, Shoulder, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 631-04354A

Chute Deflector Assembly
(Superseded to 631-04354C)

$43.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, only 3 left!

0

47

Troy-Bilt 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

Troy-Bilt 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

49

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 1 left!

0
