TB 2246 (13AAA1KT066) - Troy-Bilt 46" Lawn Tractor, Hydro Drive (2015) Electrical Parts Diagram

46" Lawn Tractor, Hydro Drive

Electrical Parts Diagram

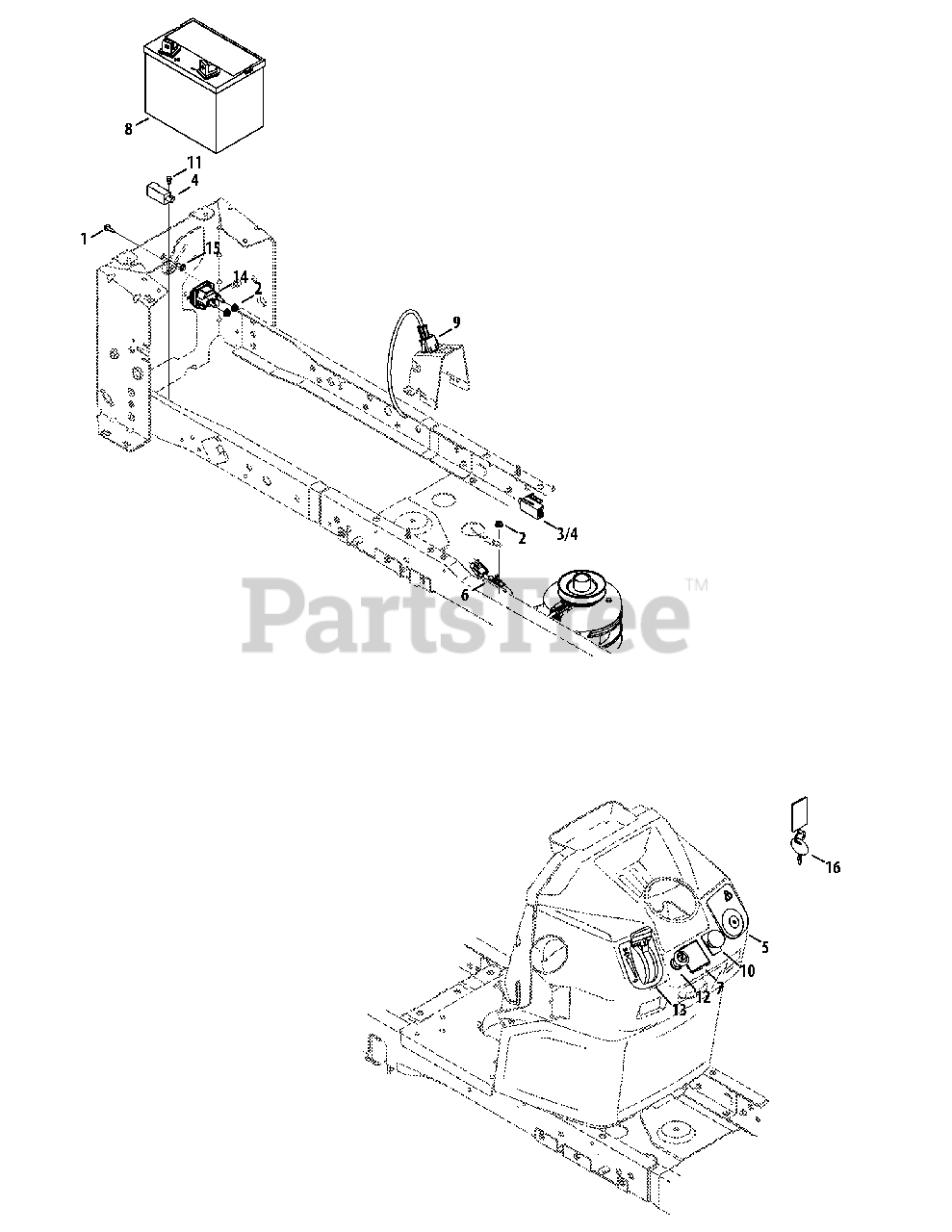

  • Title

1

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 13

0

2

Troy-Bilt 712-05106

Nut, Jam Lock, 1/4-20, Nylon

$3.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 725-04232

Switch, 3-Pole (Man. PTO)

$49.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 925-06119A

Key Switch (Man. PTO)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-06173

Jumper Harness (Elec. PTO)

$30.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 925-06170

Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 925-1707D

Battery

$

$

Not available

9

Troy-Bilt 925-06261

Dash Harness (Man. PTO)

$47.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 731-10634

Dash Plug (Man. PTO)

$5.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

12

Troy-Bilt 731-09956

Choke Plug

$5.49

$

In Stock, Qty 7

0

13

Troy-Bilt 746-05094

Throt/Choke Cable, 38"
(Superseded to 946-05094A)

$58.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 9

0

15

Troy-Bilt 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 625-05000

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-06130

Harness Assembly, Main (Man. PTO)
(Superseded to 925-06130E)

Note: (Not Shown)

$194.99

$

Usually ships in 3-6 days

0

Troy-Bilt 925-06167

Reverse Harness

Note: (Not Shown)

$13.99

$

In Stock, only 1 left!

0

Troy-Bilt 925-06132

Headlight Harness
(Superseded to 925-06463)

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
