TB 2246 (13AA93KT066) - Troy-Bilt 46" Lawn Tractor (2014) Steering & Axle Parts Diagram

46" Lawn Tractor

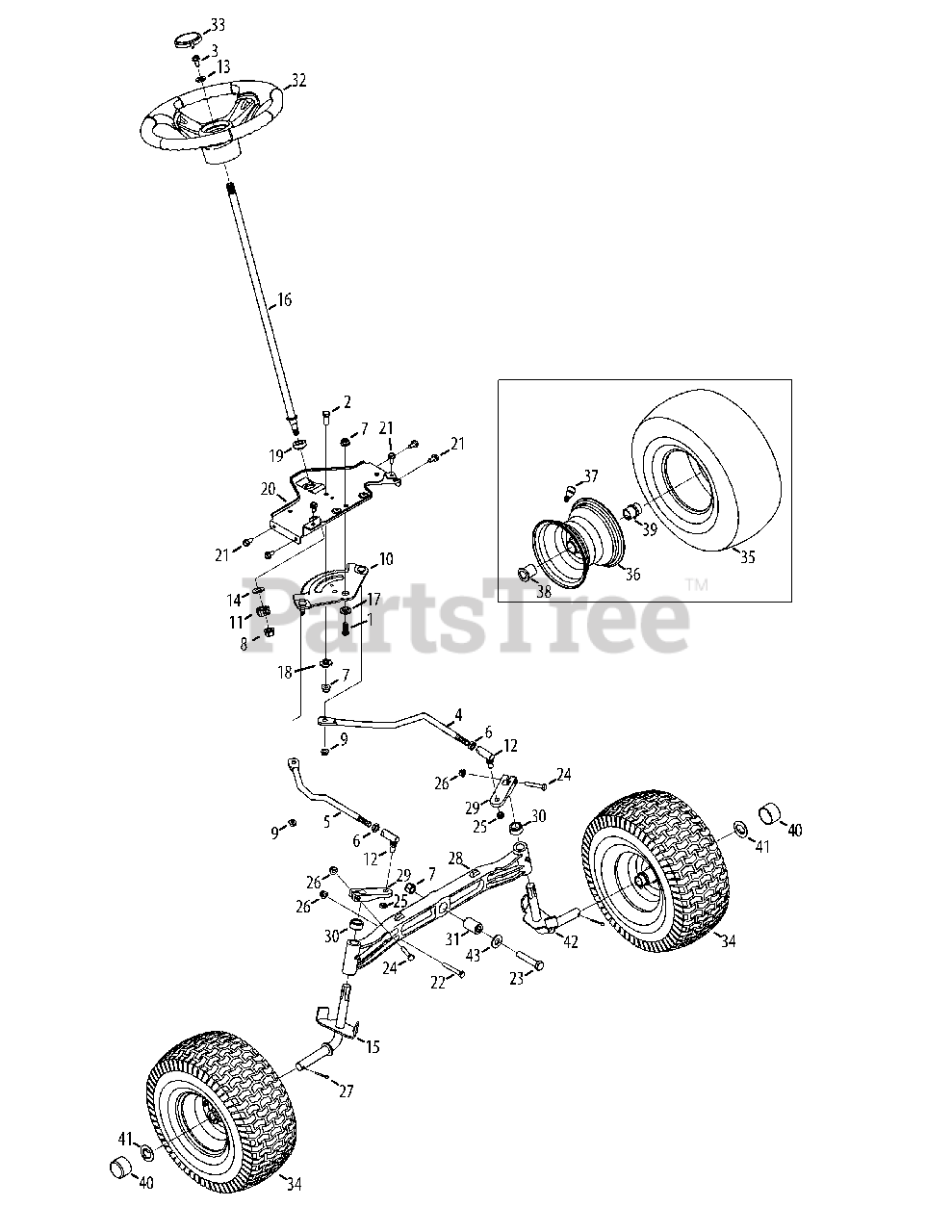

Steering & Axle Parts Diagram

  • Title

1

Troy-Bilt 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18, 1.00, Gr5, Lock

$6.99

$

In Stock, Qty 5

0

4

Troy-Bilt 711-04998

Link, Drag LH

$27.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 711-04999

Link, Drag RH

$27.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0459

Nut, Flange Lock, 7/16-20, Grb, Lock

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 717-1550F

Gear, Steering, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 938-04034

Axle Ass’y, RH .750 Dia (46" Deck)

$53.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

17

Troy-Bilt 738-04363

Spacer, Shoulder, .385x 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 738-04364B

Spacer, .38 x 1.375, Special, 46" Only

$6.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 741-04237B

Bearing, Flange, Hex 5/8 Pm

$6.99

$

In Stock, Qty 15

0

20

Troy-Bilt 783-06043-0637

Bracket, Support, Steering

$

$

Not available

21

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0395

Hex Screw, 5/16-18, 2.25, Gr5, Std

$4.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std

$6.99

$

In Stock, Qty 17

0

24

Troy-Bilt 710-3180

Hex Screw, 5/16-18, 1.75, Gr5, Std

$5.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 719-04413A

Axle, Pivot Bar, Cast

$241.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 748-04278-0637

Steering, Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 748-04068

Spacer, .71 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 750-05280

Spacer, .385 x 1.00 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

Troy-Bilt 631-04008A

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 634-04406-0911

Wheel Assembly

$

$

Not available

35

Troy-Bilt 734-1731-0901

Tire, 15 x 6 x 6

$49.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 634-04405-0662

Rim Assembly, Plastic Bearing

$69.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 741-0516B

Flange Bearing, .760 x 1.00 x 1.20

$6.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 741-0990B

Flange Bearing, .760 ID

$10.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 731-08049

Cap, Bumper
(Superseded to 731-08049A)

$

$

Not available

41

Troy-Bilt 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 638-04035P

Axle Ass’y, LH .750 Dia (46" Deck)

$

$

Not available

43

Troy-Bilt 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0
