TB 2246 (13AA93KT066) - Troy-Bilt 46" Lawn Tractor (2014) Mower Deck 46-Inch Parts Diagram

46" Lawn Tractor

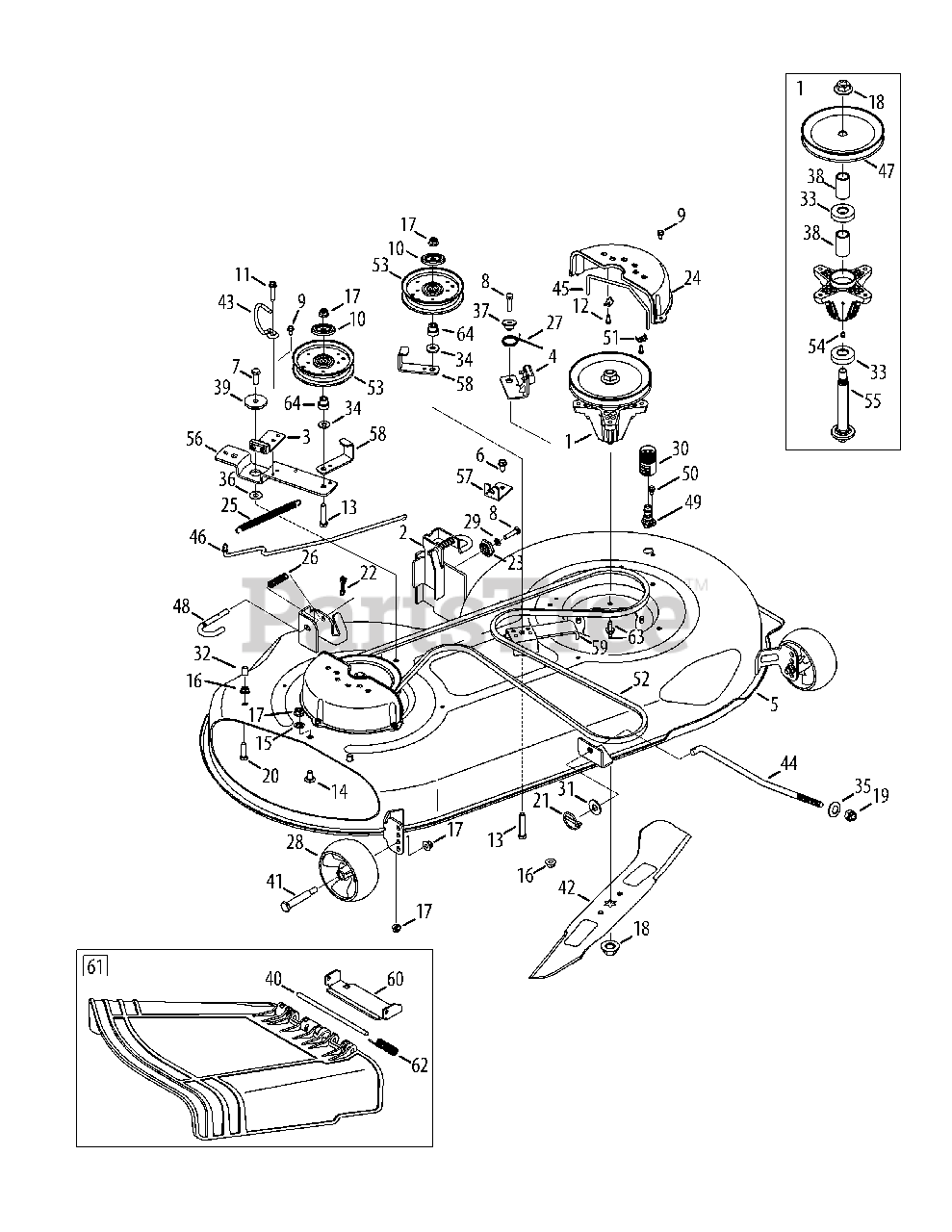

Mower Deck 46-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-04865A

Spindle Ass’y, Pulley, 6.93 Dia

$147.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 683-0254B-0637

Bracket Ass’y, Deck, Hanger LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 983-04511

Brake Ass’y, Deck

$63.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-04525

Brake Ass’y, Deck

$45.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 983-04578B-0637

Deck Shell, Offset, 46" 2W

$506.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0642

Screw, Self-tapping, 1/4-20, .75,

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-04669

Screw, #10-16 x .625

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3144

Hex Screw, 3/8-16, 2.00

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-3178

Bolt, Carriage, 3/8-16, 0.75

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 15

0

18

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

21

Troy-Bilt 753-04070

Pin, Lynch, .1875

$9.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 917-04074

Gear, Deck, Adjustment

$13.99

$

In Stock, Qty 19

0

24

Troy-Bilt 731-06496

Belt Cover

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 932-0384

Spring, Extension, .62 Dia x 6.12

$14.99

$

In Stock, Qty 12

0

26

Troy-Bilt 732-04652

Spring, Comp, .535 OD x 1.751

$6.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 732-04840

Spring, Torsion, .992 I.D x 1.17 O.D

$4.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

33

Troy-Bilt 941-0919A

Ball Bearing, .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 736-0317

Washer, Bell, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 748-04272

Spacer, Shoulder, .50 x .145

$7.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 738-04162C

Spacer, Shoulder, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 8

0

41

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 942-04290

Blade
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 747-05323

Rod, Keeper, Belt

$14.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 747-04944B

Rod, Lift, Deck, Frt, 13.7

$24.99

$

In Stock, Qty 5

0

45

Troy-Bilt 747-05011

Rod, Keeper, Belt

$10.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 747-05052A

Rod, Control, Brake

$16.99

$

In Stock, Qty 14

0

47

Troy-Bilt 756-04356

Pulley, Deck, 6.93 Dia

$37.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 747-1116

Rod, Handle, Deck Release

$12.99

$

In Stock, Qty 8

0

49

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 3 left!

0

50

Troy-Bilt 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

51

Troy-Bilt 751B221535

Clamp, Casing

$10.99

$

In Stock, Qty 10

0

52

Troy-Bilt 954-04219

Belt, V-Type

$50.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 756-05042

Pulley, Idler, 4.25"Dia

$31.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 937-3000

Fitting, 3/16, Lnc#70, Drive Lube

$4.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 738-1186A

Shift, Spindle, 6.11.

$49.99

$

In Stock, Qty 14

0

56

Troy-Bilt 783-05946

Bracket, Idler, Pivot

$38.99

$

In Stock, Qty 10

0

57

Troy-Bilt 783-06243-0637

Bracket, Cable, Deck Engage

$10.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 783-06368A-0637

Bracket, Guard, Belt, 4.25 Pulley

$21.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 783-06643-0637

Bracket, Support, Deck Stationary Idler

$9.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 783-06074A

Bracket, Chute

$32.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 631-04288

Chute Ass’y, Deflector
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 732-04372

Torsion Spring, .44 ID x 2.0

$10.99

$

In Stock, Qty 9

0

63

Troy-Bilt 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.99

$

In Stock, Qty 20+

0
