TB 2246 (13AA93KT066) - Troy-Bilt 46" Lawn Tractor (2014) Drive & Rear Wheels Parts Diagram

46" Lawn Tractor

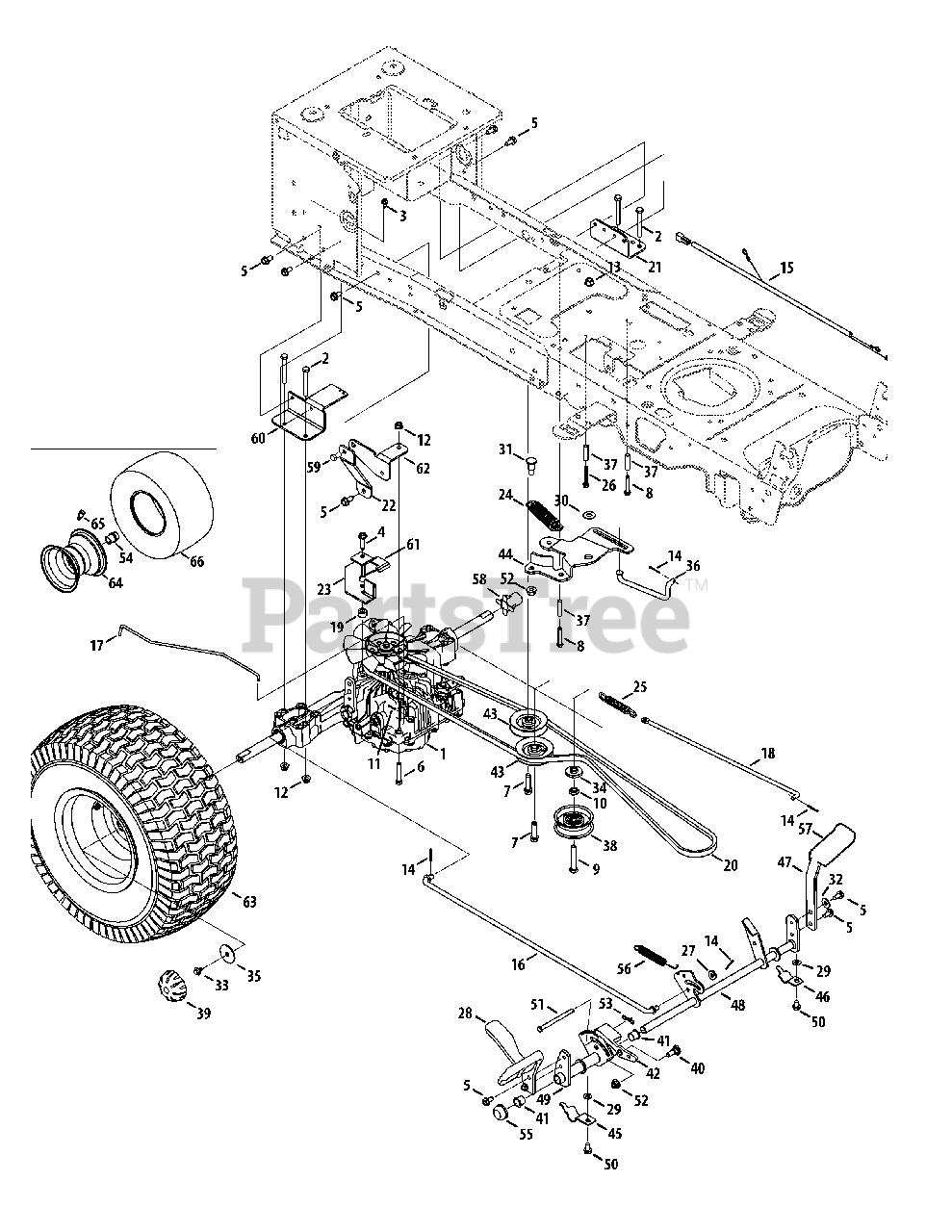

Drive & Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 918-05010

Transmission, Tuff Torq K46
(Superseded to 753-10424)

$1361.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0378

Hex Screw, 5/16-18, 2.50, Gr5, Std

$4.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0817

Screw, Self-tapping, 5/16-18, 1.250

$6.99

$

In Stock, Qty 15

0

5

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3180

Hex Screw, 5/16-18, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1007

Screw, Self-tapping, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-1325

Screw, Self-tapping, 1/4-20, 1.625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3011

Hex Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

12

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

15

MTD 725-05335

Jumper Harness, Ground & Reverse

$27.99

$

Usually ships in 3-6 days

0

16

MTD 747-05447

Rod, Control, Tuff-Torq

$94.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 747-05448

Rod, Hydro Bypass

$71.99

$

Usually ships in 3-6 days

0

18

MTD 747-05452

Rod, Brake, NX9 Tuff-Torq

$17.99

$

Usually ships in 3-6 days

0

19

MTD 750-05512

Spacer, .330 x .715 x .430

$19.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 954-04297

Belt, V-Type

$62.99

$

In Stock, Qty 20+

0

21

MTD 783-06849-0637

Bracket, Mount, Tuff-Torq

$8.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-07349-0637

Bracket, NX9 Tuff Torq

$22.99

$

Usually ships in 3-6 days

0

23

MTD 783-07260-0637

Bracket, Belt Keeper

$54.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 732-04792

Spring, Extension, 1.00 Dia x 4.75

$9.49

$

In Stock, Qty 5

0

25

Troy-Bilt 732-0716D

Spring, Extension, .59 Od x 4.00

$13.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-1026

Screw, Self-tapping, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

27

Troy-Bilt 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

30

Troy-Bilt 936-0344

Wash, Flat, .385 x 1.00 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 738-0430

Scr, Shldr, .50 x .685 3/8-16

$11.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-04420

Spacer, Shoulder, 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 736-0430

Washer, Flat, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

36

Troy-Bilt 747-04957A

Rod, Transmission, Bypass

$13.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-2290A

Cap, Hub
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 938-0380

Bolt, Shoulder, .500 x .270, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 741-0495

Bearing, Flange, .630 x .695 x .60

$4.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 748-04203

Latch, Cruise

$14.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 756-04325

Pulley, Idler, V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 783-06027B

Bracket, Idler, Center Double

$

$

Not available

45

Troy-Bilt 783-05914

Bracket, Support, Pedal Strap

$7.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 783-05940

Bracket, Support, Pedal Strap 5/8

$7.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 783-06103A-0637

Bracket, Pedal, Brake

$17.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 647-04152D

Control Assembly, Brake

$

$

Not available

49

Troy-Bilt 683-04537

Bracket Assembly, Pedal, Hydro
(Superseded to 683-04537A)

$

$

Not available

50

Troy-Bilt 710-0604A

Screw, Self-tapping, 5/16-18, 0.625,

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 711-05068A

Pin, Clevis, 5/16 x 3.985

$7.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 941-0490

Axle Hub

$13.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 726-0214

Cap, Push 5/8

$10.99

$

In Stock, only 3 left!

0

56

Troy-Bilt 732-04587

Spring, Extension, .63 Dia x 4.95

$7.49

$

In Stock, Qty 12

0

57

Troy-Bilt 735-04136

Pad, Pedal, Brake

$15.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 731-05299A

Sleeve, .765 Id x 1.500

$4.49

$

In Stock, only 3 left!

0

59

Troy-Bilt 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

60

MTD 783-07295-0637

Bracket, Mount

$

$

Not available

61

MTD 783-07347-0637

Bracket, Belt

$

$

Not available

62

Troy-Bilt 783-07350-0637

Bracket, Support

$29.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 634-0104-0911

Wheel Assembly

$144.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 634-04369-0662

Rim Assembly, Plastic Bead, 46"

$165.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 734-1730-0901

Tire, 20 x 8 x 8

$99.99

$

In Stock, only 1 left!
