TB 22 EC (41CDZ22C766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

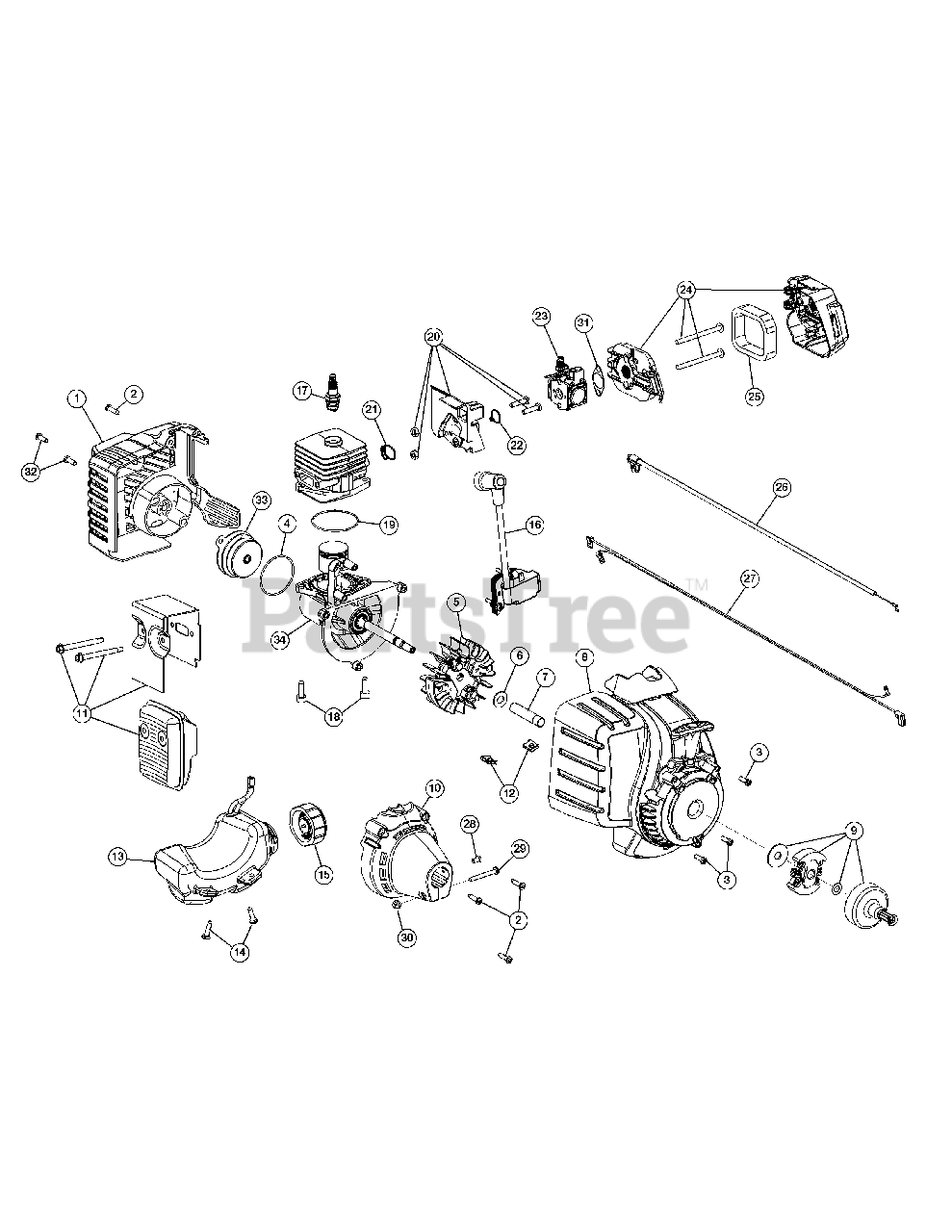

Engine Assembly Parts Diagram

  • Title
1

Troy-Bilt 753-06177

Rear Cover Assembly (Incl. 2 & 32)

$18.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 11

0

8

Troy-Bilt 753-06522

Starter Housing (Incl. 3 & 12)

$26.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 6

0

10

Troy-Bilt 753-06181

Clutch Cover (Incl. 2)

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 791-182366

U-shaped Nut

$5.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 753-06183

Fuel Tank Assembly (Incl. 14 & 15)

$13.99

$

In Stock, Qty 20+

0

14

$6.99

$

In Stock, only 1 left!

0

15

$20.99

$

In Stock, Qty 10

0

16

Troy-Bilt 753-06763

Module Assembly

$27.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 753-06847

Spark Plug

$7.49

$

In Stock, Qty 11

0

18

Troy-Bilt 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

19

Troy-Bilt 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 15

0

20

Troy-Bilt 753-06189

Insulator Assembly (Incl. 21 & 22)

$7.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 19

0

22

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 753-06415

Aircleaner Cover Assembly (Incl. 25)

$

$

Not available

25

Troy-Bilt 753-06417

Aircleaner Filter

$2.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-06188

Throttle Cable

$7.99

$

In Stock, Qty 5

0

27

Troy-Bilt 753-06187

Lead Wires

$

$

Not available

28

Troy-Bilt 791-182519

Anti-rotation Screw

$4.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

30

Troy-Bilt 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 791-182195

Rear Housing Screw

$7.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-06173

Electric Starter Cover Assembly

$19.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 753-06523

Short Block Assembly (Incl. 4 - 7 & 16 - 19)

$95.99

$

Usually ships in 3-6 days

0
