TB 22 (41BDZ25C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

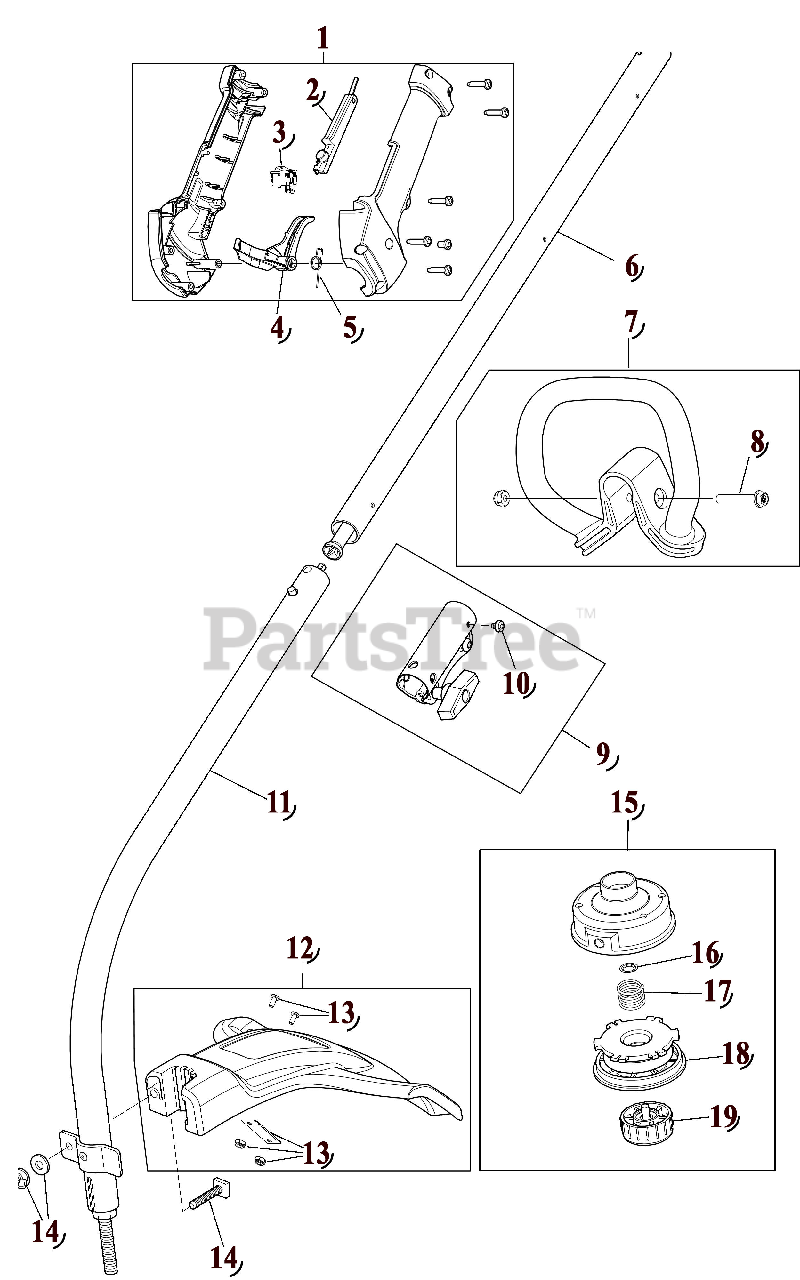

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

Throttle Housing Assembly (incl. 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-08378

Throttle Trigger Lock-Out
(Superseded to 731-08433C-10)

$3.49

$

In Stock, Qty 14

0

3

Troy-Bilt 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

Troy-Bilt 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-06880

Upper Shaft Housing Assembly

$19.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-08042

D-Handle (incl. 8)

$4.99

$

In Stock, Qty 7

0

8

Troy-Bilt 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-1190

Split Boom Coupler (incl. 10)

$23.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 753-04508

Lower Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

12

Troy-Bilt 753-04283

Shield Assembly (incl. 13)

$50.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-04284

Outer Spool Assembly (incl. 16)

$28.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

Troy-Bilt 953-1156

Reel & Line Assembly

$31.99

$

In Stock, only 1 left!

0
