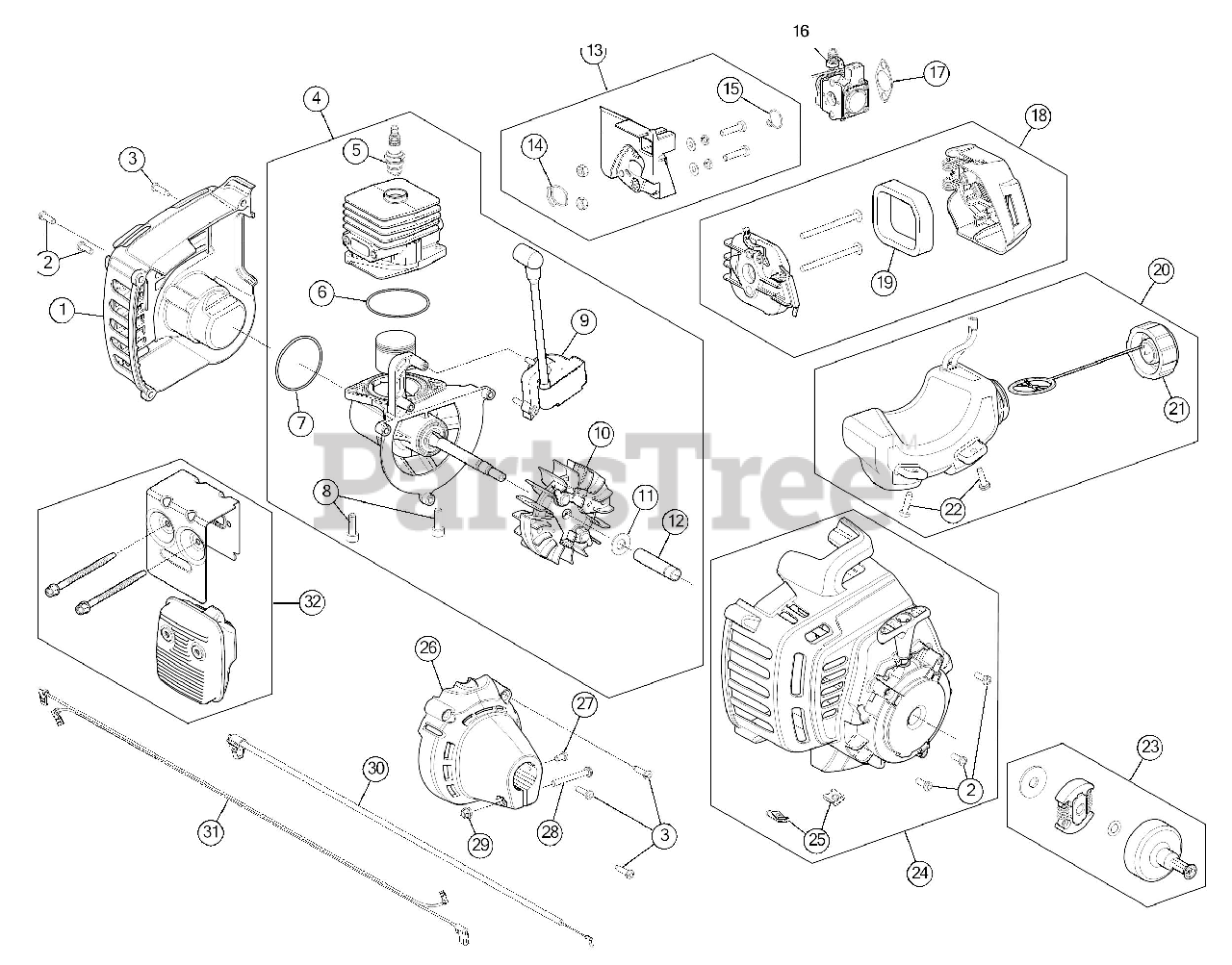

TB 22 (41BDZ25C766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title
1

Troy-Bilt 753-08557

Rear Cover Assembly (incl. 2 & 3)

$

$

Not available

2

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-06924

Short Block Assembly

Note: (incl. Crankcase, Cylinder, Piston, 5 - 13)

$75.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-06847

Spark Plug

$7.49

$

In Stock, Qty 11

0

6

Troy-Bilt 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 15

0

$2.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

9

Troy-Bilt 753-06763

Module Assembly

$27.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 11

0

13

Troy-Bilt 753-06189

Insulator Assembly (incl. 14 & 15)

$7.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 19

0

15

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06415

Aircleaner Cover Assembly (incl. 19)

$

$

Not available

19

Troy-Bilt 753-06417

Aircleaner Filter

$2.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06183

Fuel Tank Assembly (incl. 21 & 22)

$13.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-182612

Fuel Tank Cap

$20.99

$

In Stock, Qty 10

0

22

Troy-Bilt 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 753-05860

Starter Clutch Assembly

$25.99

$

In Stock, Qty 6

0

24

Troy-Bilt 753-08556

Starter Housing (incl. 2 & 25)

$19.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 791-182366

U-shaped Nut

$5.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 753-06181

Clutch Cover (incl. 3)

$3.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-182519

Anti-rotation Screw

$4.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

29

Troy-Bilt 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 746-05231

Throttle Cable

$4.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 753-06583

Lead Wires

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

In Stock, only 2 left!

0
