TB 2044 XP (41DDL2PC766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

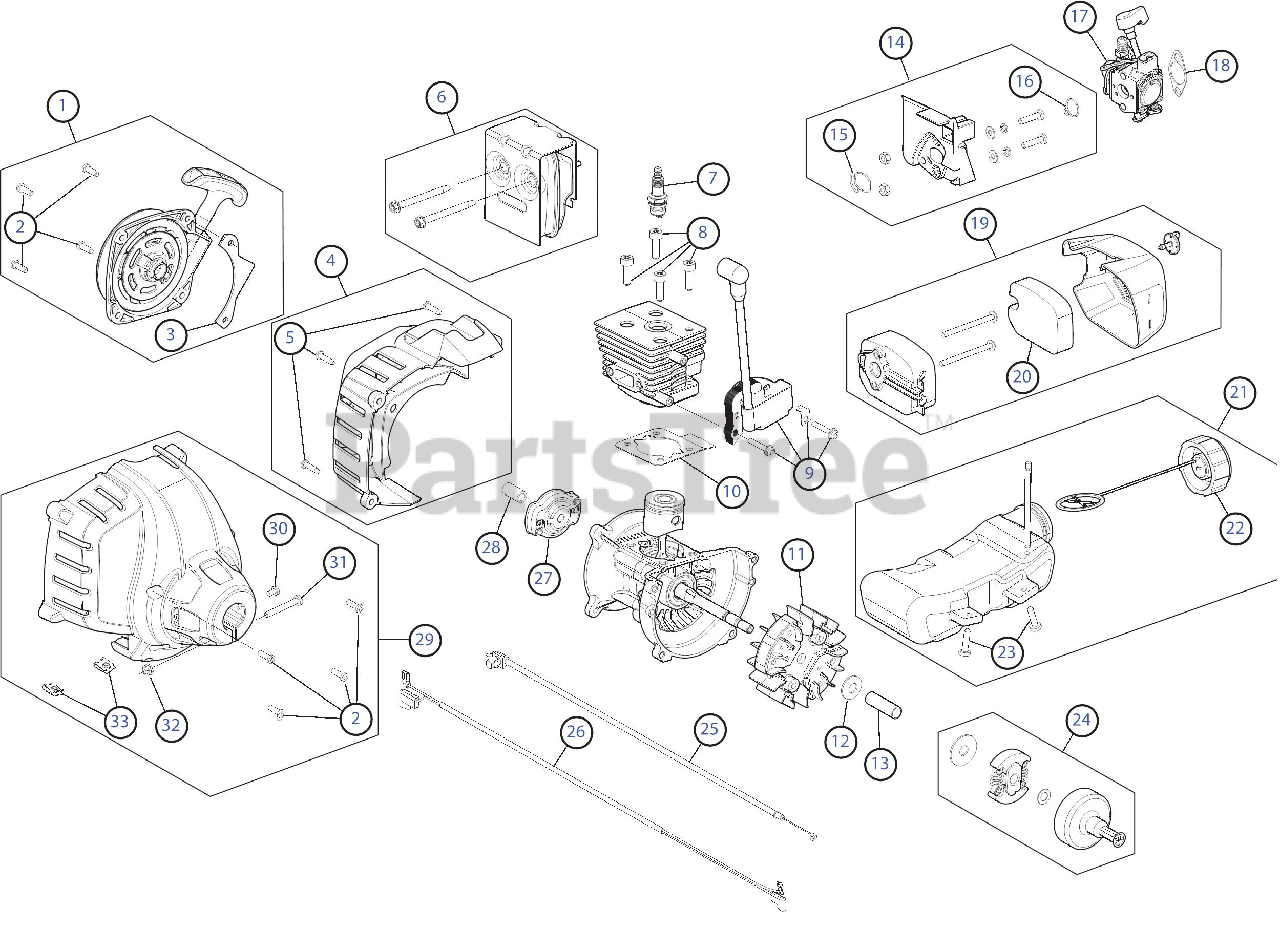

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08742

Starter Assembly (Incl. 2 & 3)

$26.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-06245

Rear Engine Cover (Incl. 5)

$

$

Not available

5

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06303

Module Assembly

$53.99

$

In Stock, Qty 7

0

10

Troy-Bilt 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-06189

Insulator Assembly (Incl. 15 & 16)

$7.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06288

Carburetor

$37.99

$

In Stock, Qty 6

0

18

Troy-Bilt 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-06953

Air Cleaner Assembly (Incl. 20)

$13.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-06954

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-06250

Fuel Tank Assembly (Incl. 22 & 23)

$21.99

$

In Stock, Qty 11

0

22

Troy-Bilt 791-182612

Fuel Tank Cap

$20.99

$

In Stock, Qty 9

0

23

Troy-Bilt 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

25

Troy-Bilt 946-04824

Throttle Cable

$3.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

28

Troy-Bilt 753-06104

Adapter

$4.49

$

In Stock, Qty 7

0

29

Troy-Bilt 753-06879

Clutch Cover Assembly (Incl. 2, 30 - 33)

$15.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 791-182519

Anti-rotation Screw

$4.99

$

In Stock, Qty 5

0

31

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 712-0161

Clamp Nut

$4.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-08666

Short Block Assembly (Incl. Crankcase, Cylinder, Piston, 7 - 13)

$88.99

$

Usually ships in 3-6 days

0
