TB 2044 XP (41BDZ2PC766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

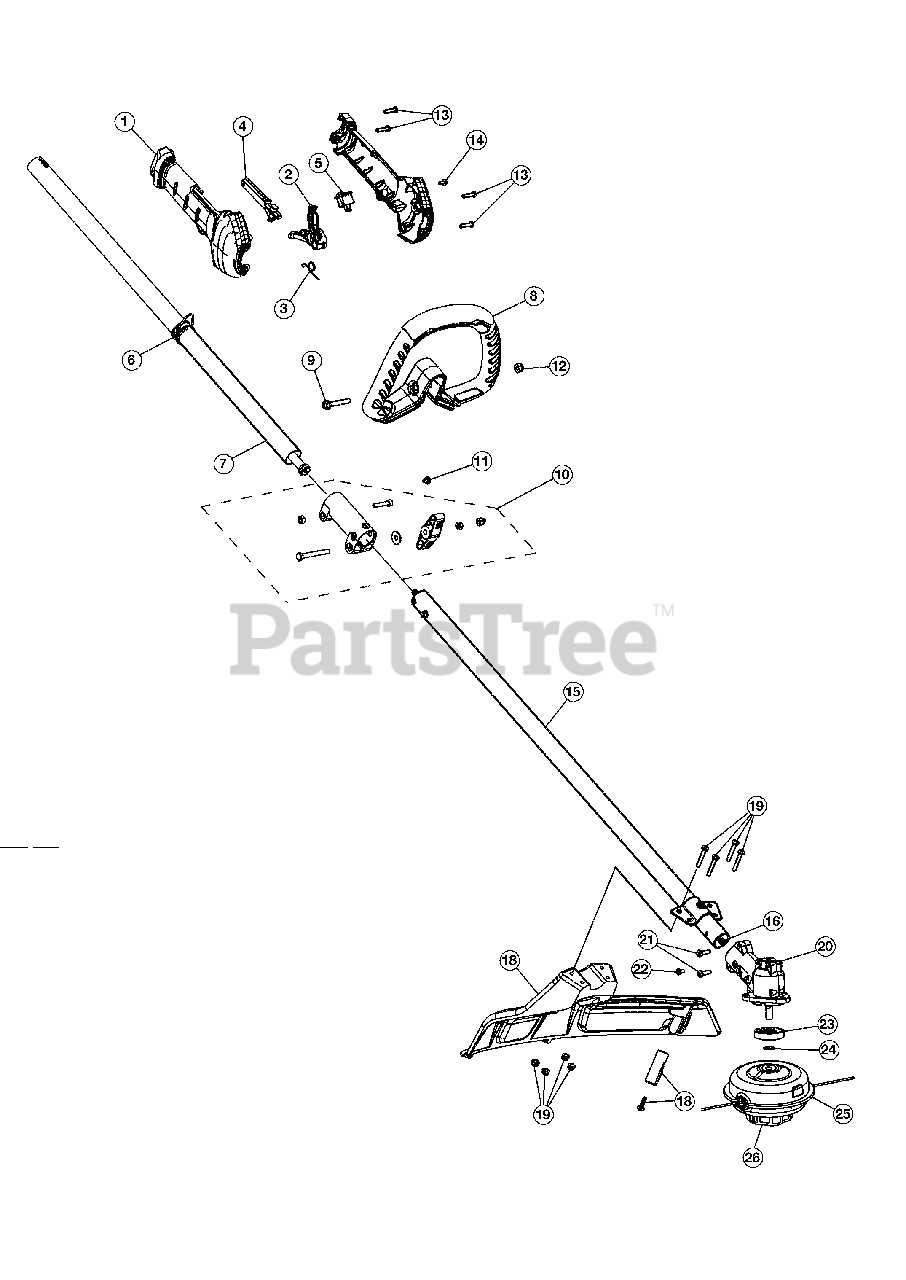

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06887

Grip Assembly (Incl. 2 - 5, 13 and 14)

$16.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 753-06888

Throttle Trigger
(Superseded to 753-08564)

$23.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05007

Spring

$5.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 731-04971C-10

Throttle Lockout
(Superseded to 731-04971B-10)

$5.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

Troy-Bilt 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06682

Upper Drive Shaft Housing

$18.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06889

Handle Assembly (Incl. 9 and 12)

$9.49

$

In Stock, Qty 11

0

9

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06886

Split Boom Coupler (Incl. 11)

$10.99

$

In Stock, Qty 6

0

11

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

12

Troy-Bilt 712-0324

Nut

$3.99

$

In Stock, Qty 16

0

13

Troy-Bilt 710-04508

Screw

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 7039

Grip Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 753-07016

Lower Drive Shaft Housing Assembly (Incl. 16)

$21.99

$

In Stock, Qty 10

0

16

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 753-05820

Shield Assembly (Includes Blade)

$24.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-06125

Shield Mounting Screw and Nut

$6.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 791-182193

Gearbox (Incl. 21 - 25)

$99.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 791-182196

Cutting Head Driver

$22.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 753-04348

Palnut

$6.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

$23.99

$

In Stock, Qty 6

0

26

Troy-Bilt 753-08163

Bump Knob

$3.49

$

In Stock, Qty 9

0

Troy-Bilt 49M2027P966

Electric Starter

Note: (Optional Accessory; Item Not Shown)

$65.99

$

In Stock, Qty 6

0

Troy-Bilt 49MESCBP966

Engine Start Bit
(Superseded to 49MASCBP966)

Note: (Optional Accessory; Item Not Shown)

$19.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Start
(Superseded to 49MRBESY953)

Note: (Optional Accessory; Item Not Shown)

$

$

Not available

Troy-Bilt WLS-H95

Replacement Line, 0.095 Diameter Universal

Note: (Optional Accessory; Item Not Shown)

$10.99

$

In Stock, Qty 7

0
