TB 200 (12A-A1BP723) - Troy-Bilt Walk-Behind Mower (2019) Deck Assembly Parts Diagram

Walk-Behind Mower

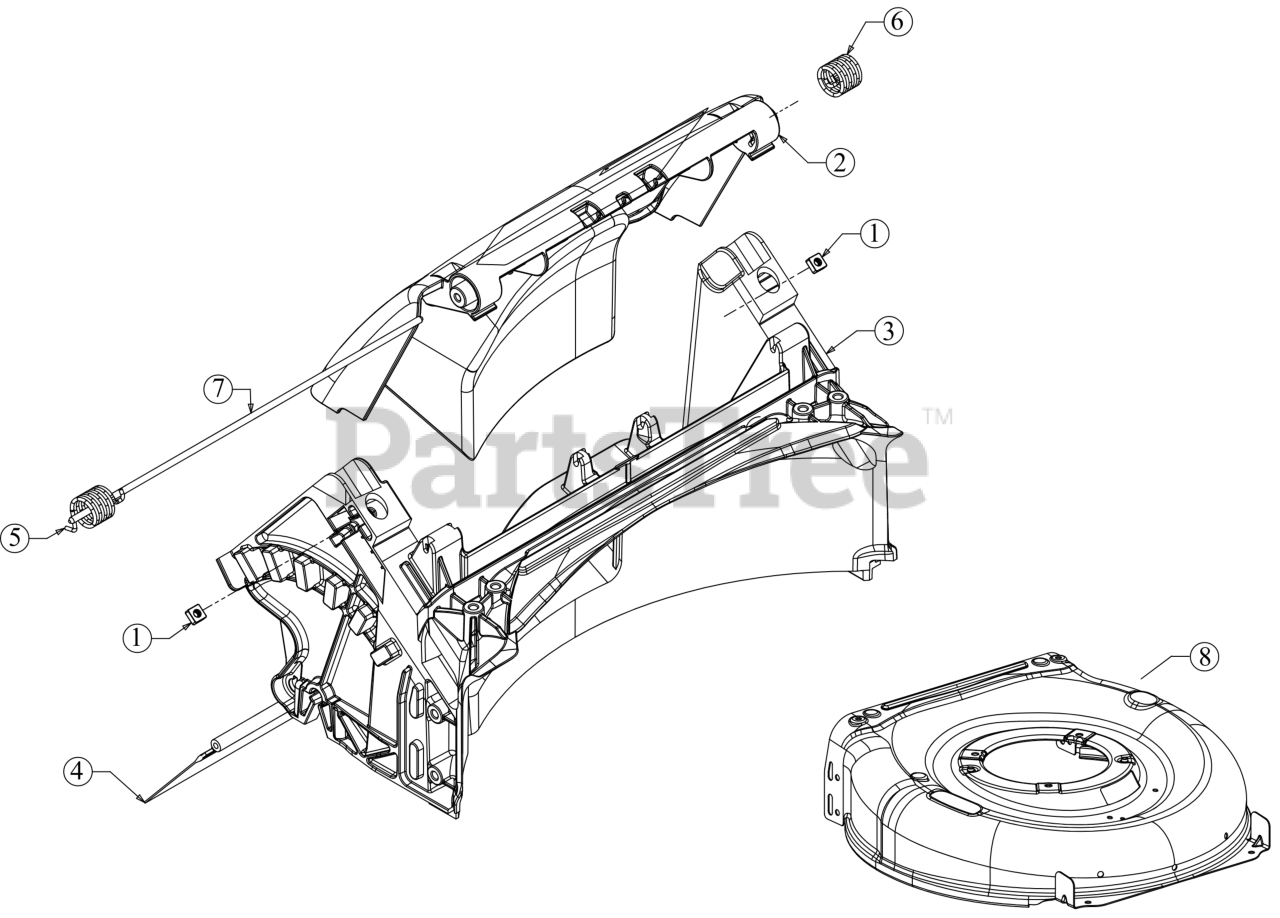

Deck Assembly Parts Diagram

  • Title
1

Troy-Bilt 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

2

N/A

Note: Order Part Number 631-04369A

$

$

Not available

3

Troy-Bilt 631-04369A

DOOR ASSEMBLY
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

8

Troy-Bilt 787-01876B

21" DECK (2N1)

Note: (Choose color when ordering)

Variations

Troy-Bilt 787-01876B-0638

DECK-21" 2 IN 1 SP - MTD/TROY-BILT RED (0638)

$127.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01876B-0691

DECK-21" 2 IN 1 SP - BLACK JACK (0691)

$110.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01876B-0709

DECK-21" 2 IN 1 SP - MASTERCRAFT GREEN (0709)

$110.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0
