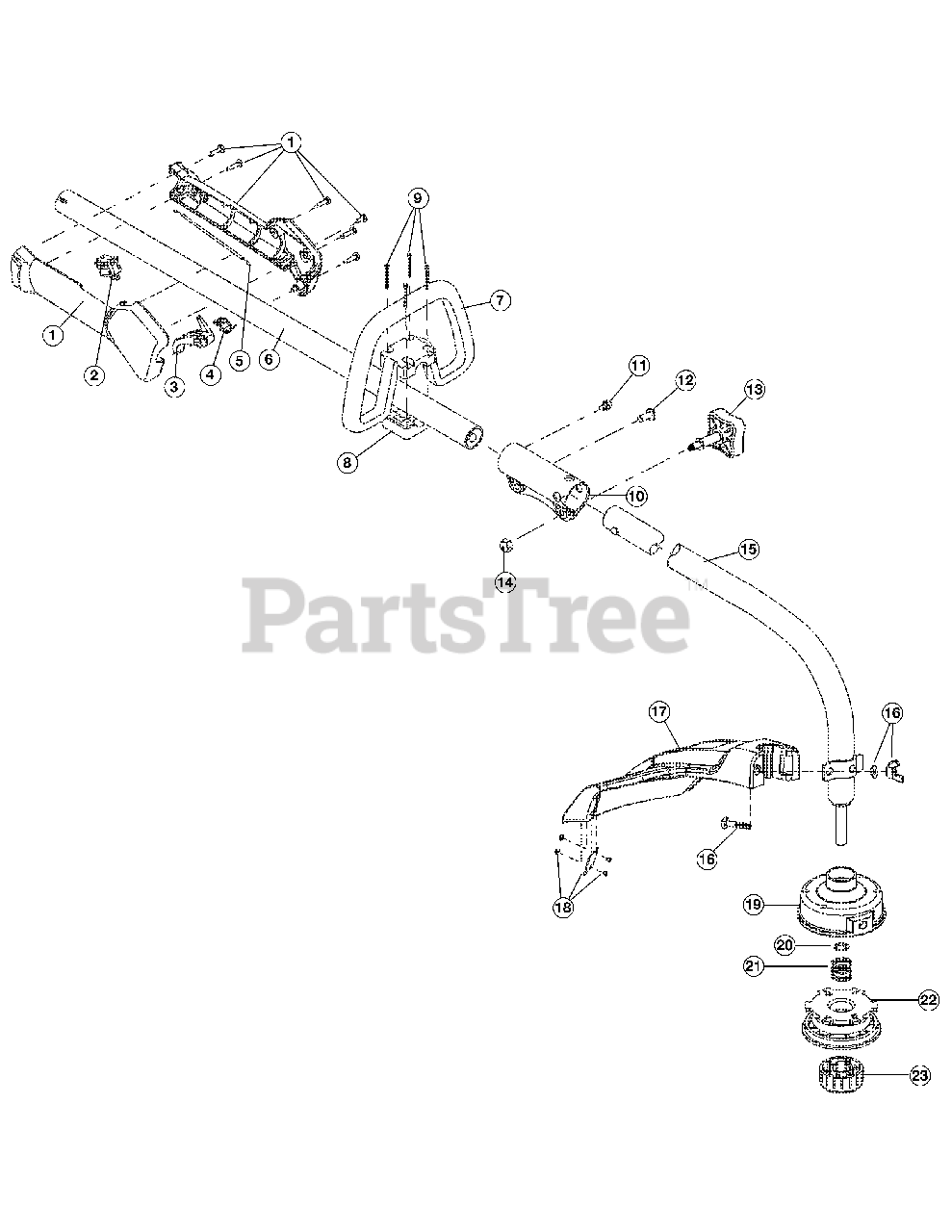

Boom and Trimmer Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-04405

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

7

MTD 791-180869

Deluxe D-Handle (includes 8 & 9)

$

$

Not available

8

Troy-Bilt 753-05009

Deluxe D-Handle Base

$7.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-1190

Split Boom Coupler (includes 11-14)

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

13

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

14

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

15

Troy-Bilt 753-04508

Lower Drive Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

16

Troy-Bilt 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-04283

Guard Assembly (includes 18)

$50.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-04284

Outer Spool Assembly (includes 20)

$28.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

Troy-Bilt 791-153577B

Reel and Line Assembly (Optional Accessory) (not shown)

$28.99

$

In Stock, only 2 left!

0
