TB 20 CS (41CDT20C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

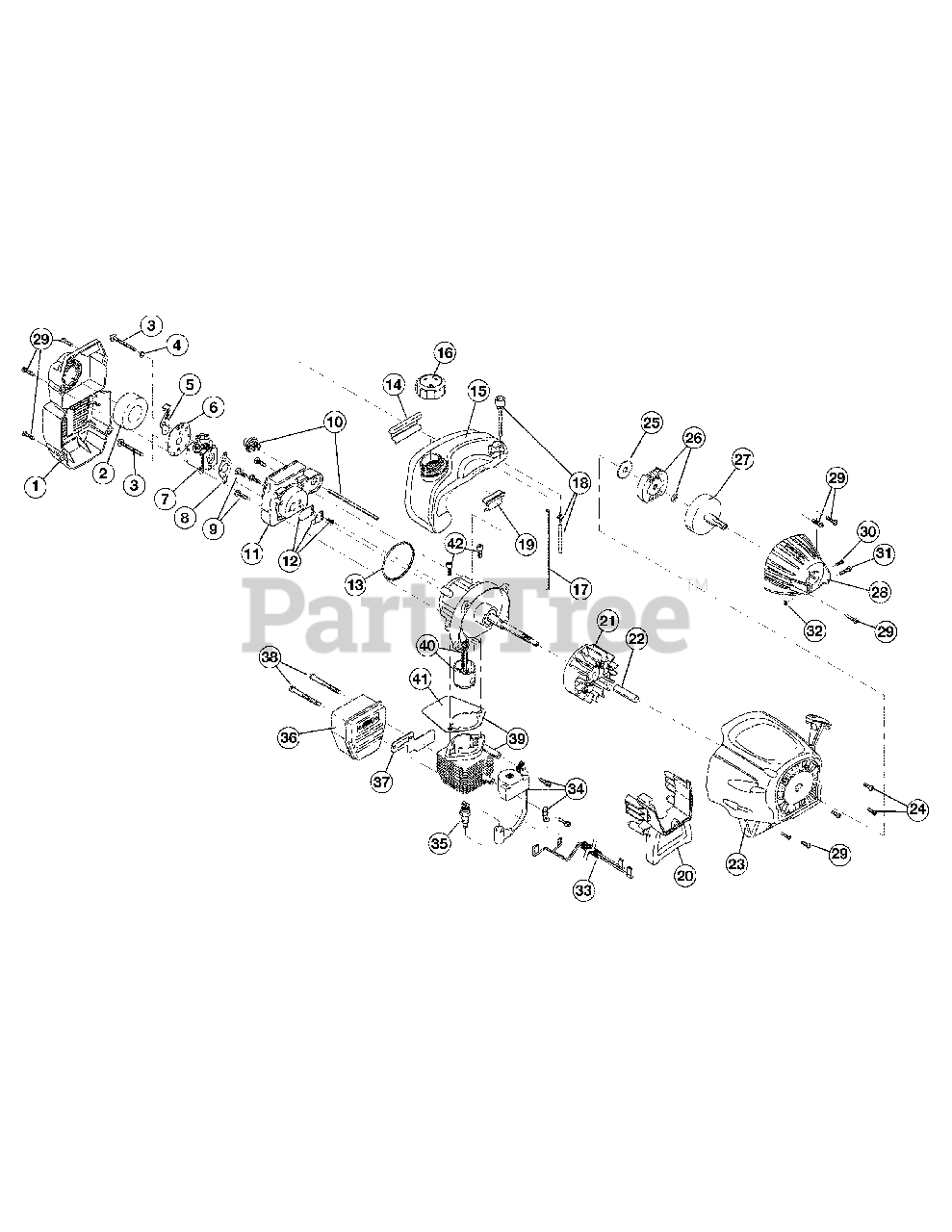

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04511

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 2 & 29)

$38.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

Troy-Bilt 753-04418

Choke Lever Assembly

$

$

Not available

6

Troy-Bilt 753-04419

Choke Plate Assembly

Note: (Incl. Ref No. 5)

$

$

Not available

7

Troy-Bilt 753-05133

Carburetor Assembly

Note: (Incl. Ref No. 8 & 18)

$81.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

Troy-Bilt 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 17

0

11

Troy-Bilt 753-1196

Carb Mount Assembly

Note: (Incl. Ref No. 9, 12 & 13)

$

$

Not available

12

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

13

Troy-Bilt 753-05487

O-Ring
(Superseded to 721-04163)

$3.99

$

In Stock, Qty 6

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly

Note: (Incl. Ref No. 16-18)

$

$

Not available

16

Troy-Bilt 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 12

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 753-04409

Shroud Extension & Stand
(Superseded to 753-05091)

Note: (Incl. Ref No. 29)

$19.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 914-04016

Woodruff Key.125 x .375

Note: Not shown

$4.49

$

In Stock, Qty 11

0

22

Troy-Bilt 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05775

Starter Housing Assembly

Note: (Incl. Ref No. 24 & 29)

$45.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

Troy-Bilt 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

26

Troy-Bilt 753-05722

Clutch Rotor Assembly

$21.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 753-05723

Clutch Drum Assembly

$

$

Not available

28

Troy-Bilt 753-04403

Clutch Cover Assembly

Note: (Incl. Ref No. 29-32)

$

$

Not available

29

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

32

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 753-05169

Muffler Assembly

Note: (Incl. Ref No. 37, 38 & Spark Arrestor)

$112.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-04814

Cylinder Assembly

Note: (Incl. Ref No. 41 & 42)

$83.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

41

Troy-Bilt 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 753-1209

Piston Ring Set

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04812

Short Block Assembly

Note: Not Shown (includes Crankcase, 9, 35 & 39-42)

$208.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181599

Clutch Springs

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0
