TB 2 BP EC (41BR2BEG766) - Troy-Bilt Backpack Blower General Assembly Parts Diagram

Backpack Blower

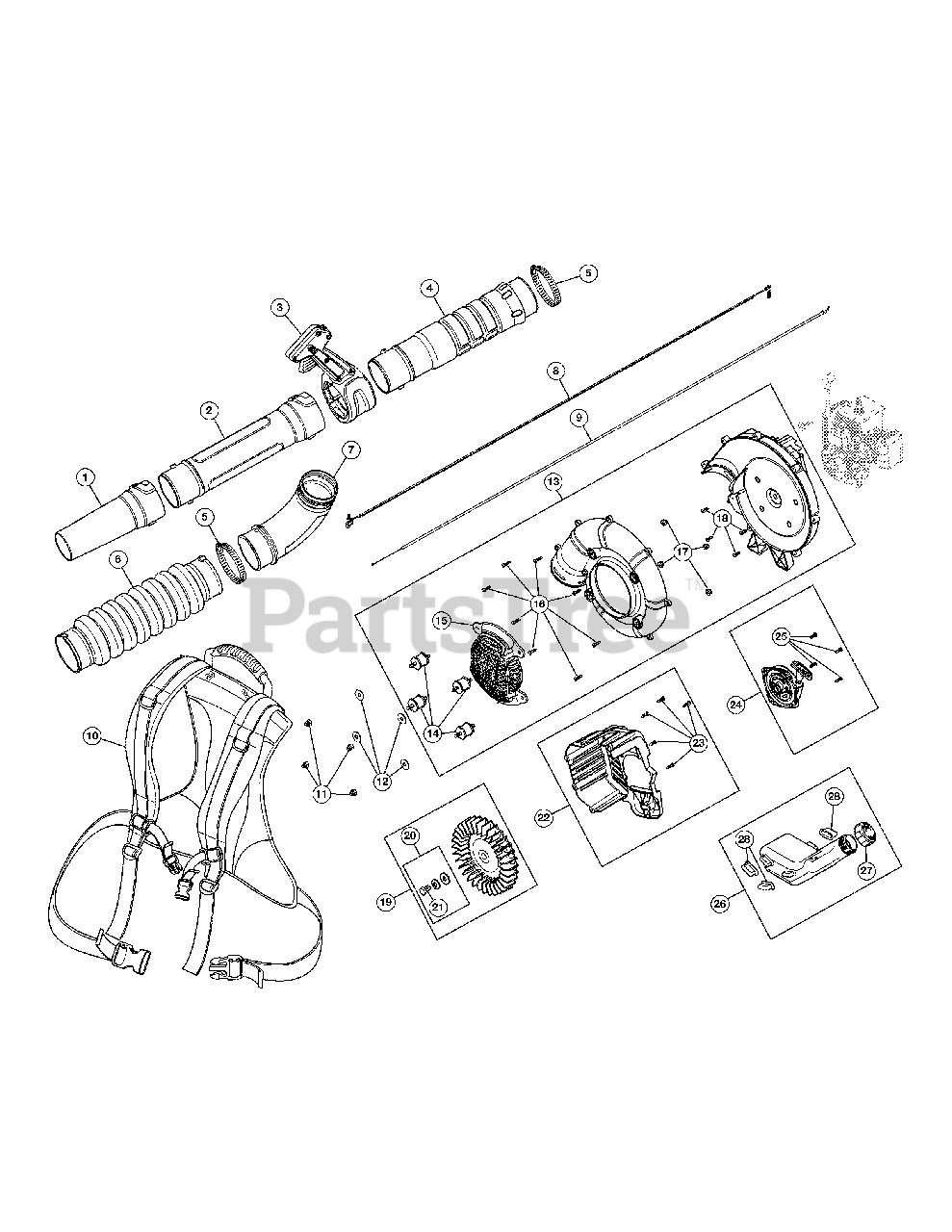

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06000

Nozzle

$13.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 753-05971

Lower Blower Tube

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05975

Throttle Grip Assembly

$53.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-05991

Upper Blower Tube

$20.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 726-04080

Clamp

$11.99

$

In Stock, Qty 10

0

6

Troy-Bilt 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05990

Elbow

$18.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06994

Lead Wire

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06434

Throttle Cable

$8.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 751-15097

Harness

$70.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

12

Troy-Bilt 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-06597

Impeller Housing Assembly (Incl. 14 - 18)

$36.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05786

Intake Cover

$5.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 2952

Nut

$2.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-05651

Impeller (Incl. 20 & 21)

$31.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-04482

Impeller Hardware (Incl. 21)

$9.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06598

Housing Assembly (Incl. 23)

$10.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 753-06596

Starter Assembly (Incl. 25)

$16.99

$

In Stock, Qty 6

0

25

Troy-Bilt 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-05654

Fuel Tank Assembly (Incl. 27 & 28)
(Superseded to 753-08721)

$25.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 791-182529

Fuel Cap

$21.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0
