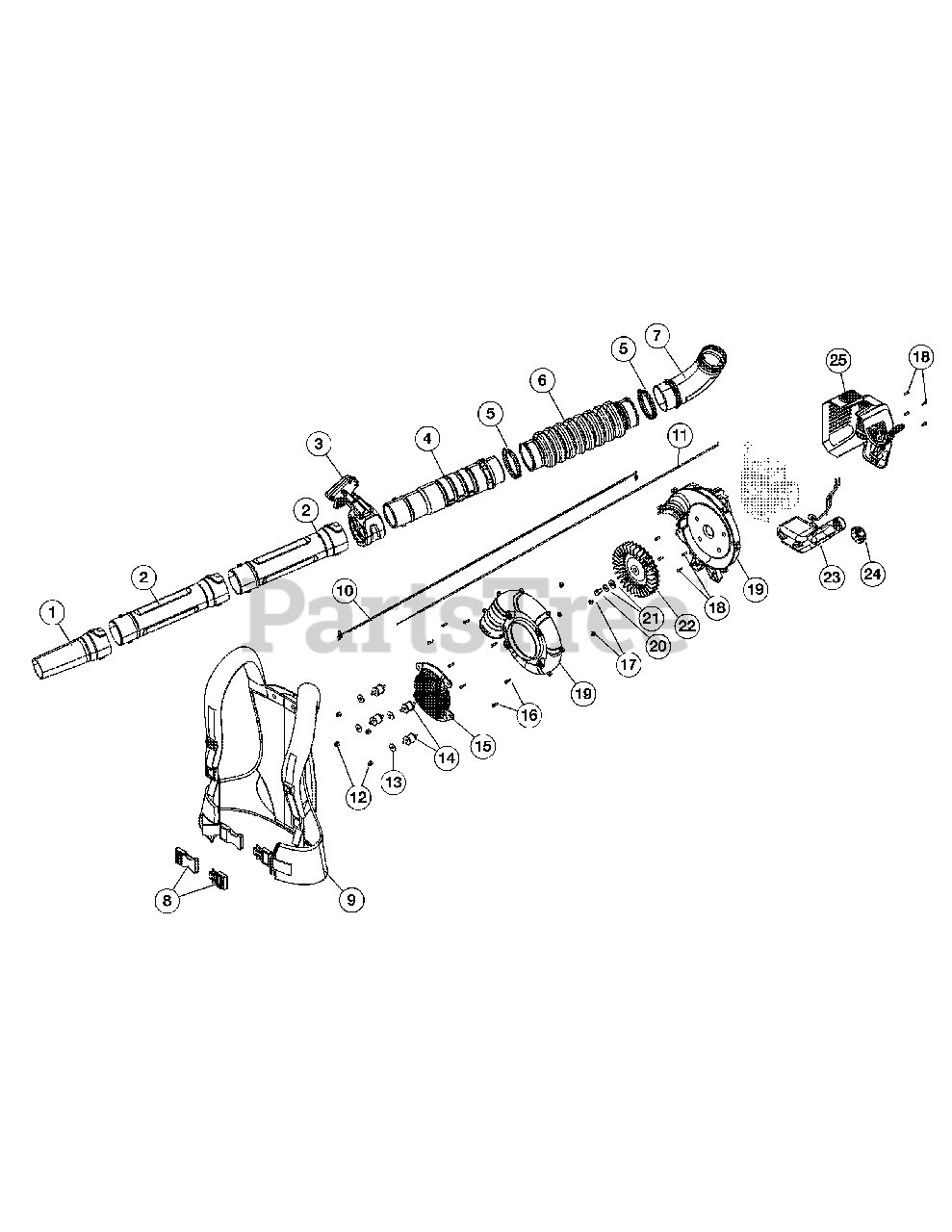

TB 2 BP (41AR2BPG966) - Troy-Bilt Backpack Blower General Assembly Parts Diagram

Backpack Blower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05637

Nozzle
(Superseded to 753-06000)

$13.99

$

In Stock, only 1 left!

0

2

MTD 753-05638

Lower Blower Tube
(Superseded to 753-05993)

$

$

Not available

3

MTD 753-05652

Throttle Grip Assembly

$

$

Not available

4

MTD 753-05639

Upper Blower Tube
(Superseded to 753-05993)

$

$

Not available

5

Troy-Bilt 753-05640

Clamp
(Superseded to 726-04080)

$11.99

$

In Stock, Qty 9

0

6

Troy-Bilt 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05642

Elbow

$

$

Not available

8

Troy-Bilt 753-05655

Waist Support Clip
(Superseded to 731-06191)

$14.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05645

Suspension System

Note: (Incl. Ref No 8)

$108.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05643

Lead Wire

$21.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05644

Throttle Cable

$

$

Not available

12

Troy-Bilt 753-05647

Nut
(Superseded to 912-0442)

$

$

Not available

13

Troy-Bilt 753-05646

Spacer
(Superseded to 750-04929)

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05649

Intake Cover

$7.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-05650

Impeller Housing Assembly

Note: (Incl. Ref No 14 & 16-18)

$74.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-04482

Impeller Hardware

Note: (Incl. Ref No 20)

$9.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-05651

Impeller

Note: (Incl. Ref No 20 & 21)

$31.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05654

Fuel Tank Assembly
(Superseded to 753-08721)

$25.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-182529

Fuel Cap

$21.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 753-05653

Starter Housing Assembly

Note: (Incl. Ref No 22 & 24)

$31.99

$

In Stock, only 1 left!

0
