TB 2 BP (41AR2BPG966) - Troy-Bilt Backpack Blower Engine Assembly Parts Diagram

Backpack Blower

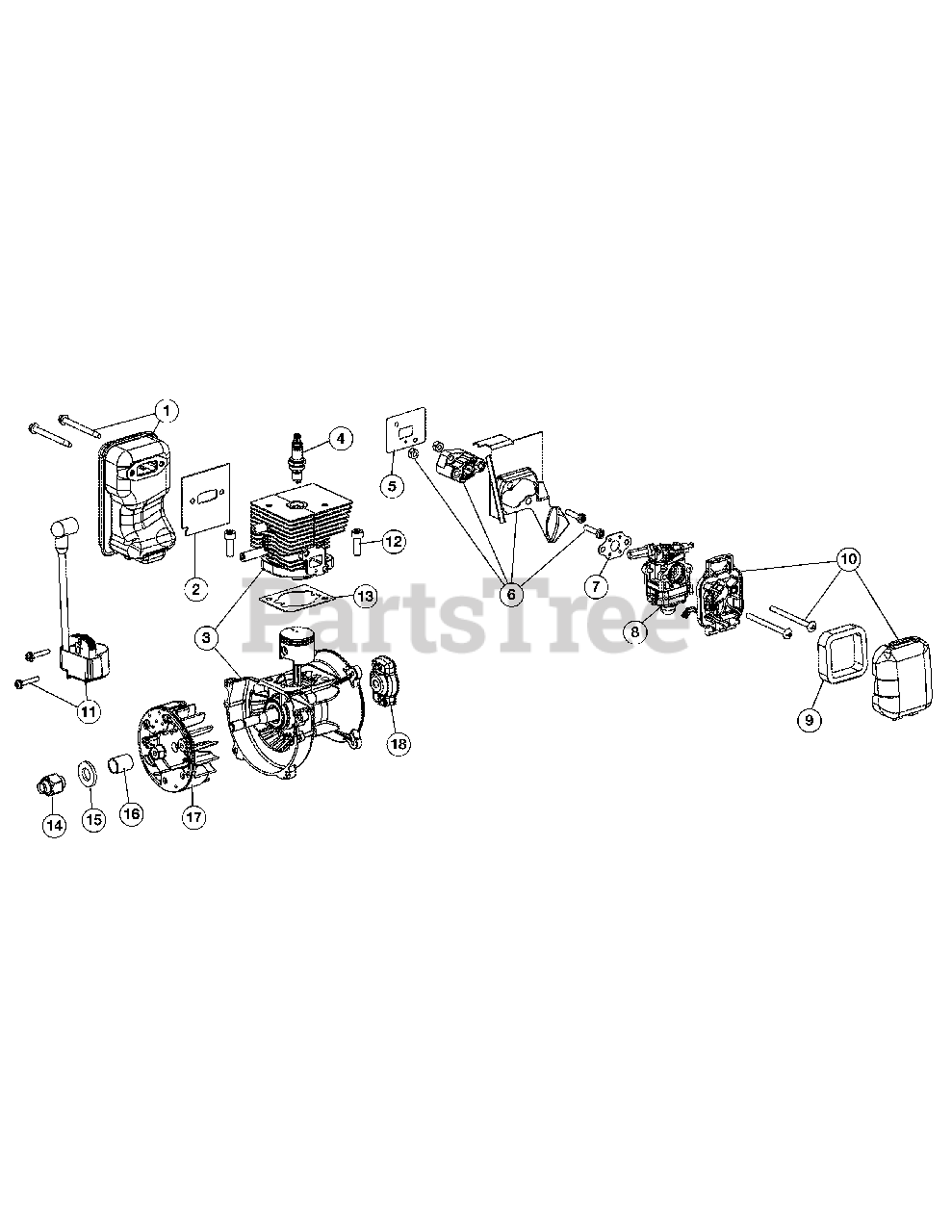

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05631

Muffler Assembly

Note: (Incl. Ref No 2)

$

$

Not available

2

Troy-Bilt 753-05701

Muffler Gasket

$

$

Not available

3

Troy-Bilt 753-05636

Shortblock Assembly

Note: (Incl. Ref No 4 & 11-17)

$

$

Not available

4

Troy-Bilt 753-05784

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

5

Troy-Bilt 753-05702

Insulator Gasket

$

$

Not available

6

Troy-Bilt 753-05632

Insulator Assembly

Note: (Incl. Ref No 5)

$

$

Not available

7

Troy-Bilt 791-181709

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 753-05633

Carburetor Assembly

Note: (Incl. Ref No 7)

$62.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-05634

Aircleaner Assembly

Note: (Incl. Ref No 9)

$16.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-05703

Screw
(Superseded to 710-04715)

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05704

Cylinder Gasket

$

$

Not available

14

Troy-Bilt 753-05705

Flywheel Adapter

$9.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-05706

Washer
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-05707

Bushing

$3.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 753-05708

Flywheel Assembly

$33.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05635

Pawl Assembly

$

$

Not available
