TB 196 (11A-B2M7309) - Troy-Bilt Walk-Behind Mower (2017) Handle Parts Diagram

Walk-Behind Mower

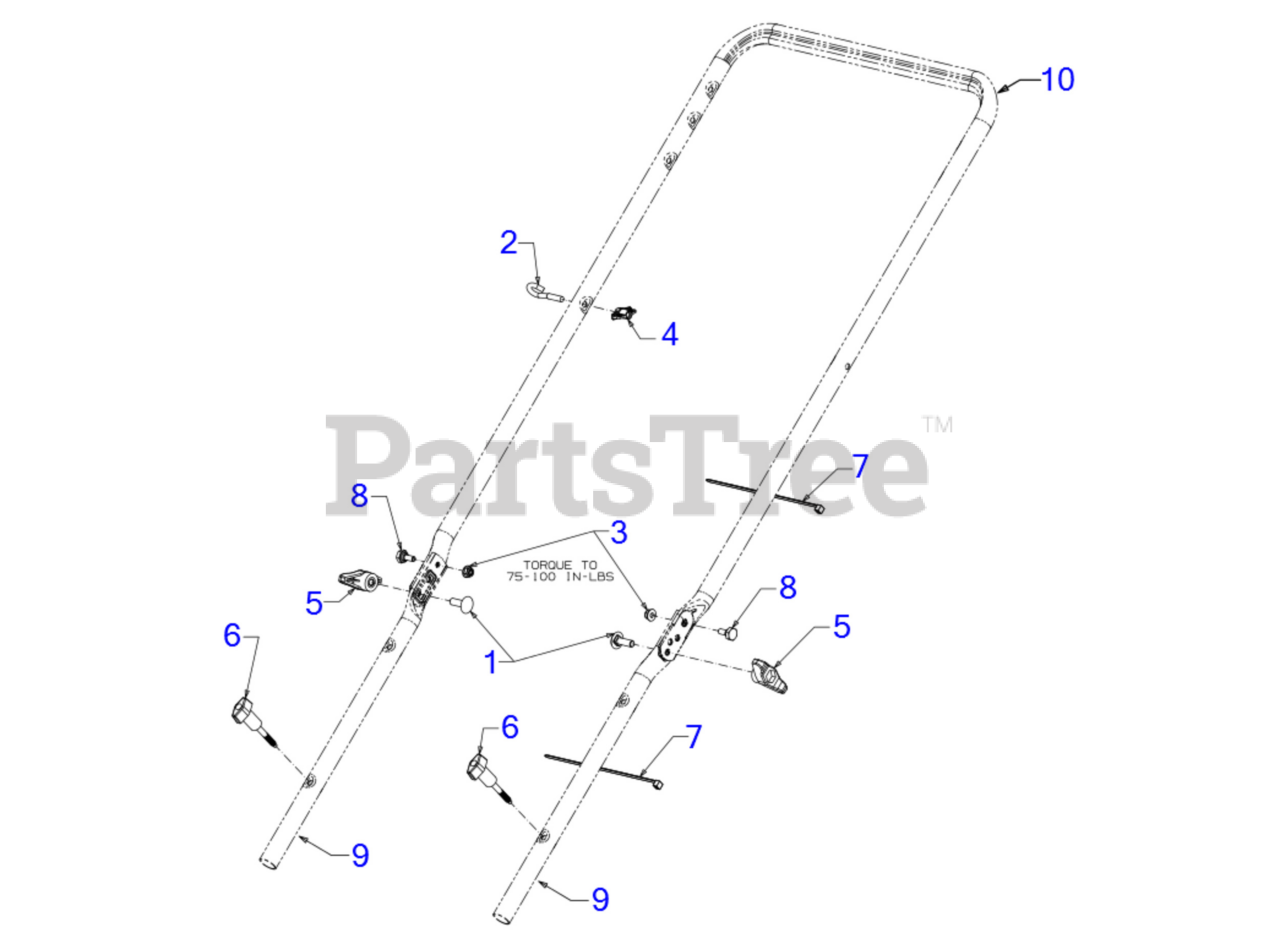

Handle Parts Diagram

  • Title

1

MTD 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, only 2 left!

0

2

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

5

MTD 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, Qty 7

0

6

MTD 720-05066A

WING KNOB 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

8

MTD 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

9

MTD 749-04608A-0637

LOWER HANDLE
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

10

MTD 749-05084A

UPPER HANDLE
(Superseded to 749-05084B)

Variations

MTD 749-05084A-0637

Non-Adjustable Upper Handle, Black - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 7

0

$33.99

$

Usually ships in 3-6 days

0
