TB 1942 (13ALA1KS066) - Troy-Bilt 42" Lawn Tractor (2016) Hood & Grille Parts Diagram

42" Lawn Tractor

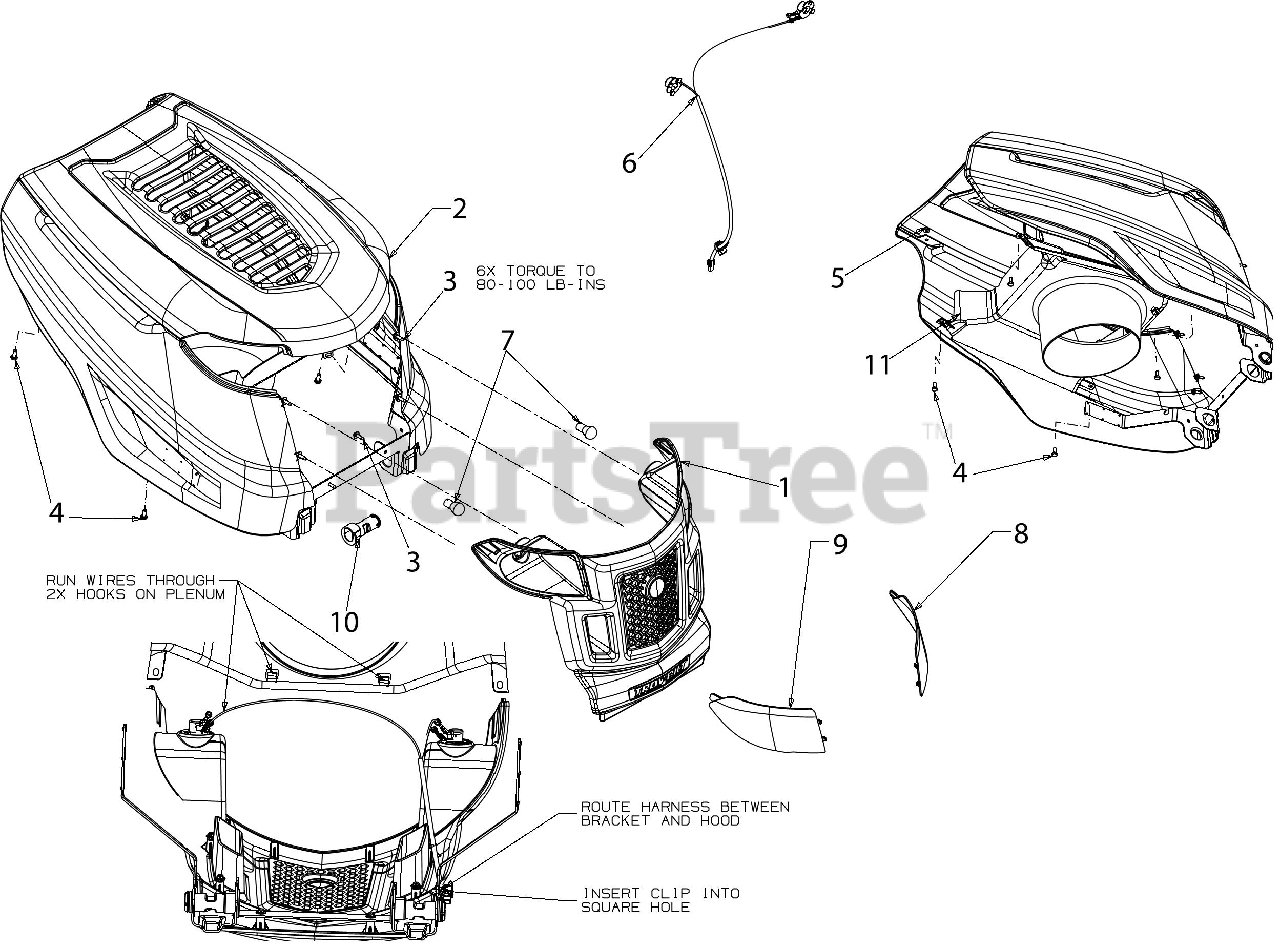

Hood & Grille Parts Diagram

  • Title
1

Troy-Bilt 631-04272

GRILLE ASSEMBLY (TROY-BILT)

$70.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 777D13024

LABEL-TROYBILT/GEAR

Note: (Not Shown)

$8.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-05178-0638

HOOD ASSEMBLY(K STYLE)

$358.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 783-06302-0638

HOOD (TOP ONLY)

Note: (Not Shown)

$100.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 925-06463

HEADLIGHT HARNESS

$26.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, Qty 5

0

8

$12.99

$

In Stock, only 1 left!

0

9

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 731-10070A

HOOD PIVOT PIN

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 931-10635B

PLENUM (K-STYLE)
(Superseded to 931-13555)

$48.99

$

Usually ships in 3-6 days

0
