TB 1942 (13ALA1KS066) - Troy-Bilt 42" Lawn Tractor (2016) Engine Accessories Parts Diagram

42" Lawn Tractor

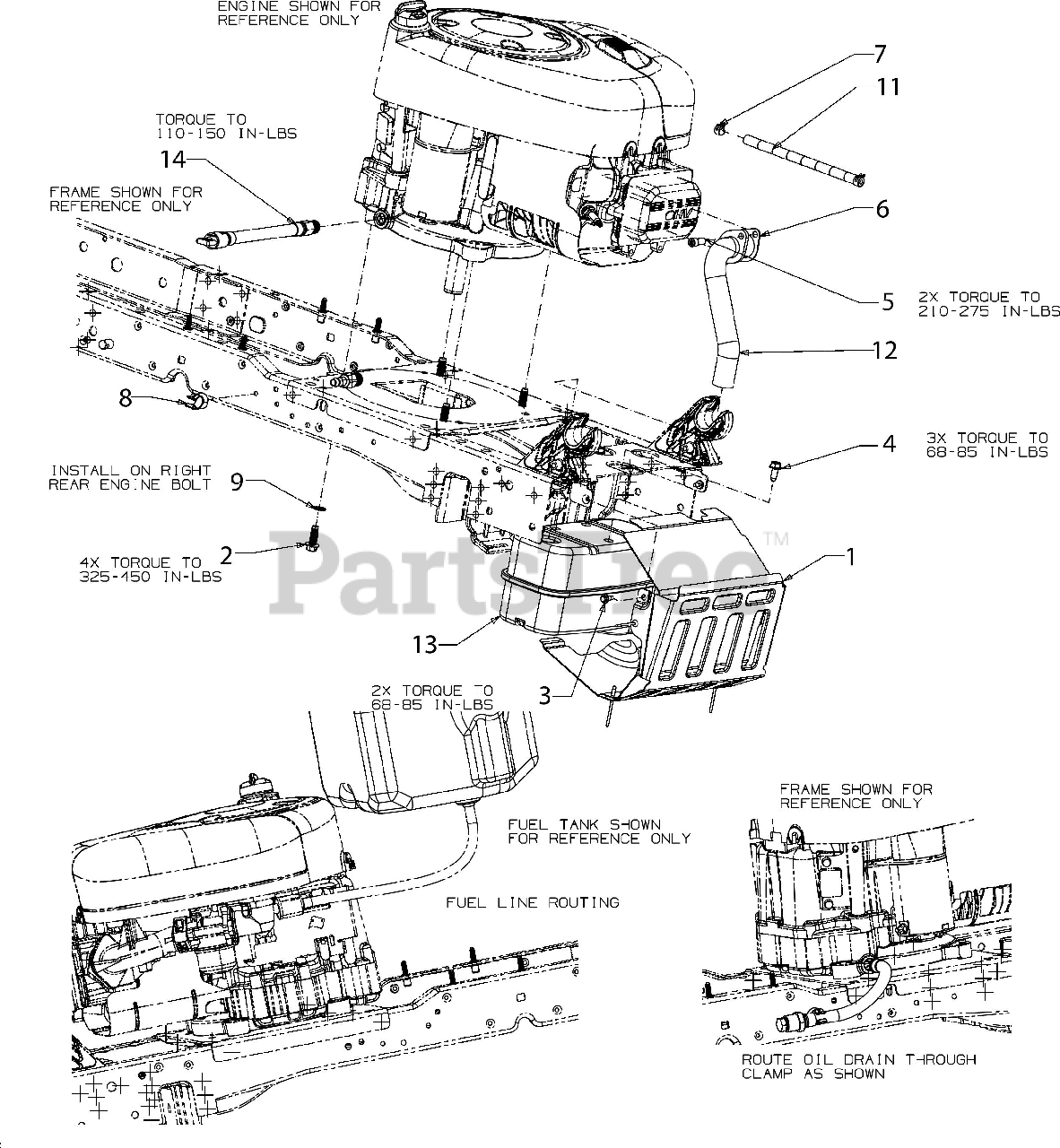

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 983-05142A

MUFFLER SHIELD ASSEMBLY

$81.99

$

In Stock, Qty 5

0

1

MTD 728-04033

RIVET - 3/16"

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

4

Troy-Bilt 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1314A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt BS-692236

EXHAUST GASKET

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-10746A

DRAIN HOSE CLIP

$7.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 751-10349-13

FUEL HOSE LOW PERMEATION

$17.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 751-14477

EXHAUST PIPE (B&S) (SINGLE)

$50.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-14504A

EXHAUST MUFFLER (SINGLE)
(Superseded to 951-14504D)

$74.99

$

In Stock, Qty 8

0

14

MTD 751-14836A

OIL DRAIN HOSE 3/8 NPT

$

$

Not available
