TB 1942 (13ALA1KS066) - Troy-Bilt 42" Lawn Tractor (2015) Manual PTO Parts Diagram

42" Lawn Tractor

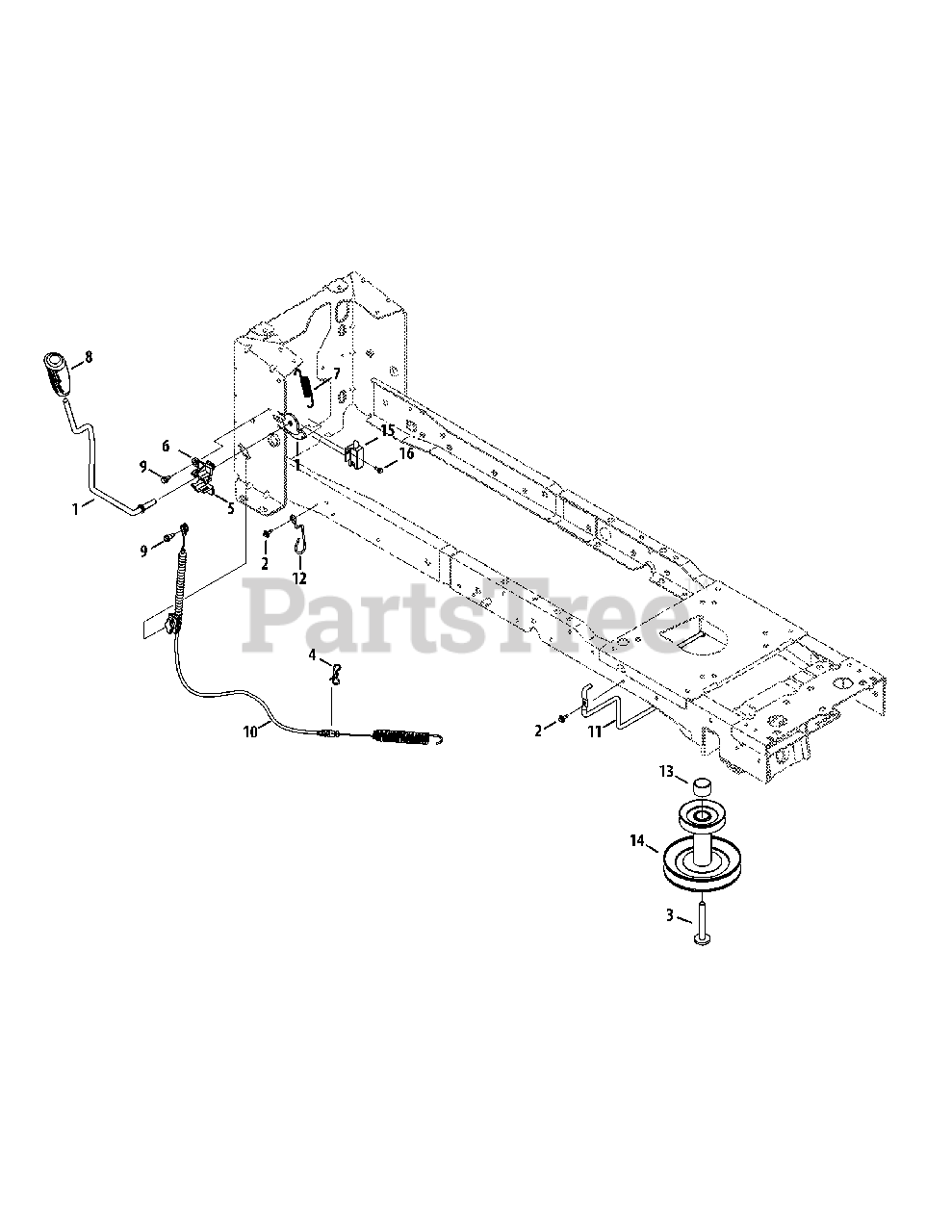

Manual PTO Parts Diagram

  • Title

1

Troy-Bilt 983-05105A

PTO Handle Assembly

$39.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 8

0

3

Troy-Bilt 710-06266

Hex Cap Screw, 7/16-20 x 3.50

$13.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 714-05005

Bow-Tie Cotter Pin

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-10066

PTO Handle Mount, RH
(Superseded to 731-10066A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-10067

PTO Handle Mount, Top
(Superseded to 731-10067C)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 732-05119

Extension Spring, .56 OD x 4.52 LG

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 720-05086

Grip

$12.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 738-04425

Shoulder Screw, .342 x .335, 1/4-28

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 946-05087

PTO Cable
(Superseded to 946-05087D)

$37.99

$

In Stock, Qty 6

0

11

Troy-Bilt 747-06239

Engine Pulley Keeper Rod
(Superseded to 747-06239B)

$25.99

$

In Stock, Qty 5

0

12

Troy-Bilt 747-06308

Cable Guide

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 748-05079

Spacer, Engine Pulley, Briggs

$7.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 956-04067A

Pulley, Engine, 3.56 x 6.12 Dia.
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 13

0

16

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0
