TB 1942 (13AL93KS066) - Troy-Bilt 42" Lawn Tractor (2014) Seat & Fender Parts Diagram

42" Lawn Tractor

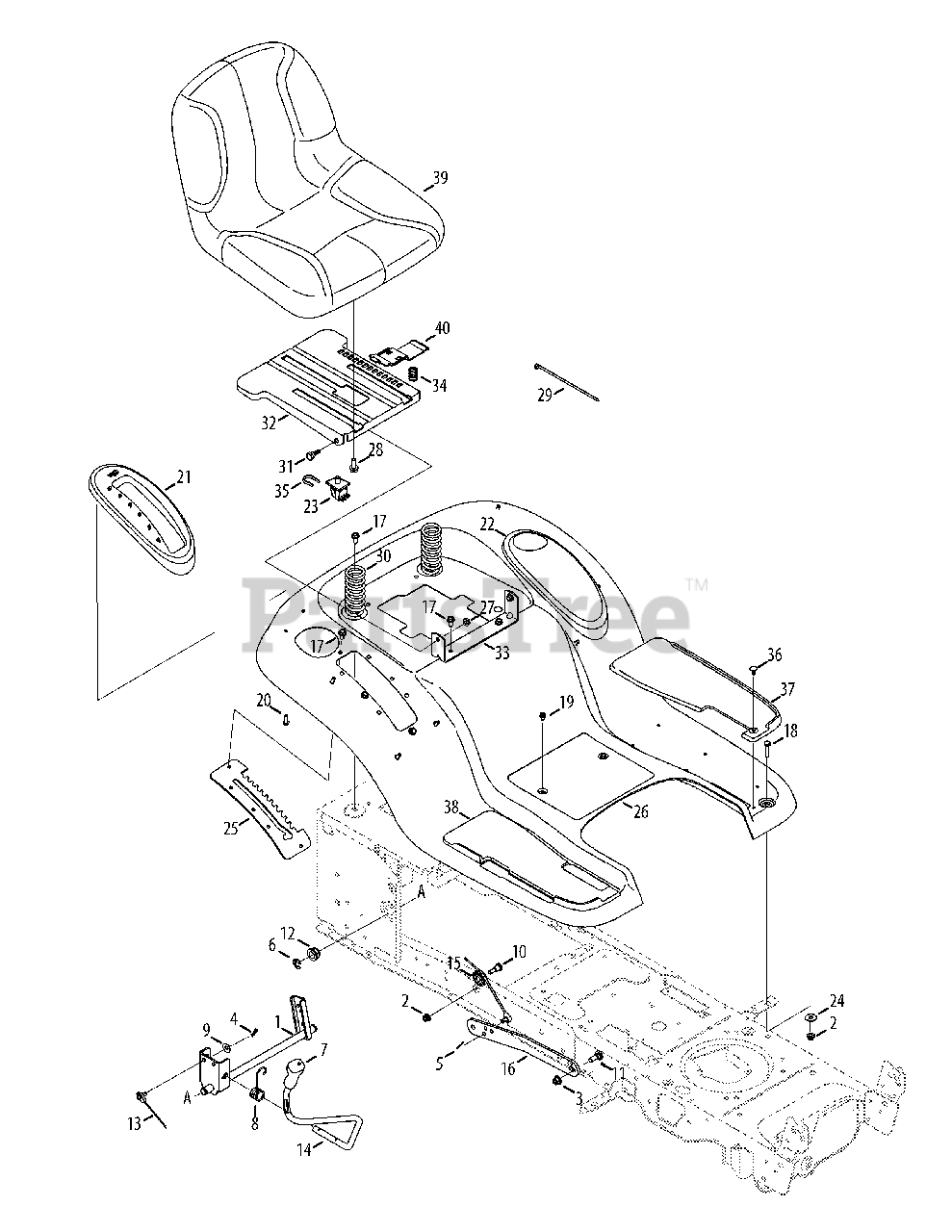

Seat & Fender Parts Diagram

  • Title

1

Troy-Bilt 683-04223-0637

Shaft Ass’y, Lift

$

$

Not available

2

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 914-0111

Bow-Tie Cotter Pin, 42"
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

6

Troy-Bilt 716-0106A

Ring, E Type, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

9

Troy-Bilt 736-0105

Washer, Spring, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 738-0138A

Screw, Shoulder, .437 x .470, 5/16-18

$6.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 738-04130

Shoulder Bolt, .625 x .175 x 3/8-16, 42"
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

12

Troy-Bilt 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 747-04962A

Handle, Lift,

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 756-04331

Pulley, Roller, Cable

$6.99

$

In Stock, Qty 13

0

16

Troy-Bilt 783-04494C-0637

Lift Arm, RH, 42"

$21.99

$

In Stock, Qty 12

0

16

Troy-Bilt 783-04711C-0637

Lift Arm, LH, 42"

$24.99

$

In Stock, Qty 13

0

17

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-1260A

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0895

Screw, HL, 1/4-15, 0.750,

$6.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 731-06795

Cover, Lift Lever

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 925-05013

Switch, Seat

$31.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 736-3078

Washer, Flat .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 783-06443-0637

Bracket, Lift, Man PTO, 6 Pos

$20.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-06259-0638

Fender

$339.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-04482

Hex Head Flange Bolt, 3/8-16 x .875

Note: (seat stop bolt)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 732-04849

Spring, Comprs, 1.50 x 3.90 x .200

$13.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 938-0296

Screw, Shoulder, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 783-06049-0637

Bracket, Mounting, Seat

$68.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-06088A-0637

Bracket, Pivot, Seat

$21.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 732-04563

Comp. Spring, .68 x 1.065 x .055

$5.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 783-06448

Clip, Retaining, Switch

$5.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

37

Troy-Bilt 735-04138

Pad, Foot, LH

$16.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 735-04158

Pad, Foot, RH

$16.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 757-04081

Seat, Med Back, Black
(Superseded to 757-05242)

$260.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0
