TB 1942 (13AL93KS066) - Troy-Bilt 42" Lawn Tractor (2014) Mower Deck 42-Inch Parts Diagram

42" Lawn Tractor

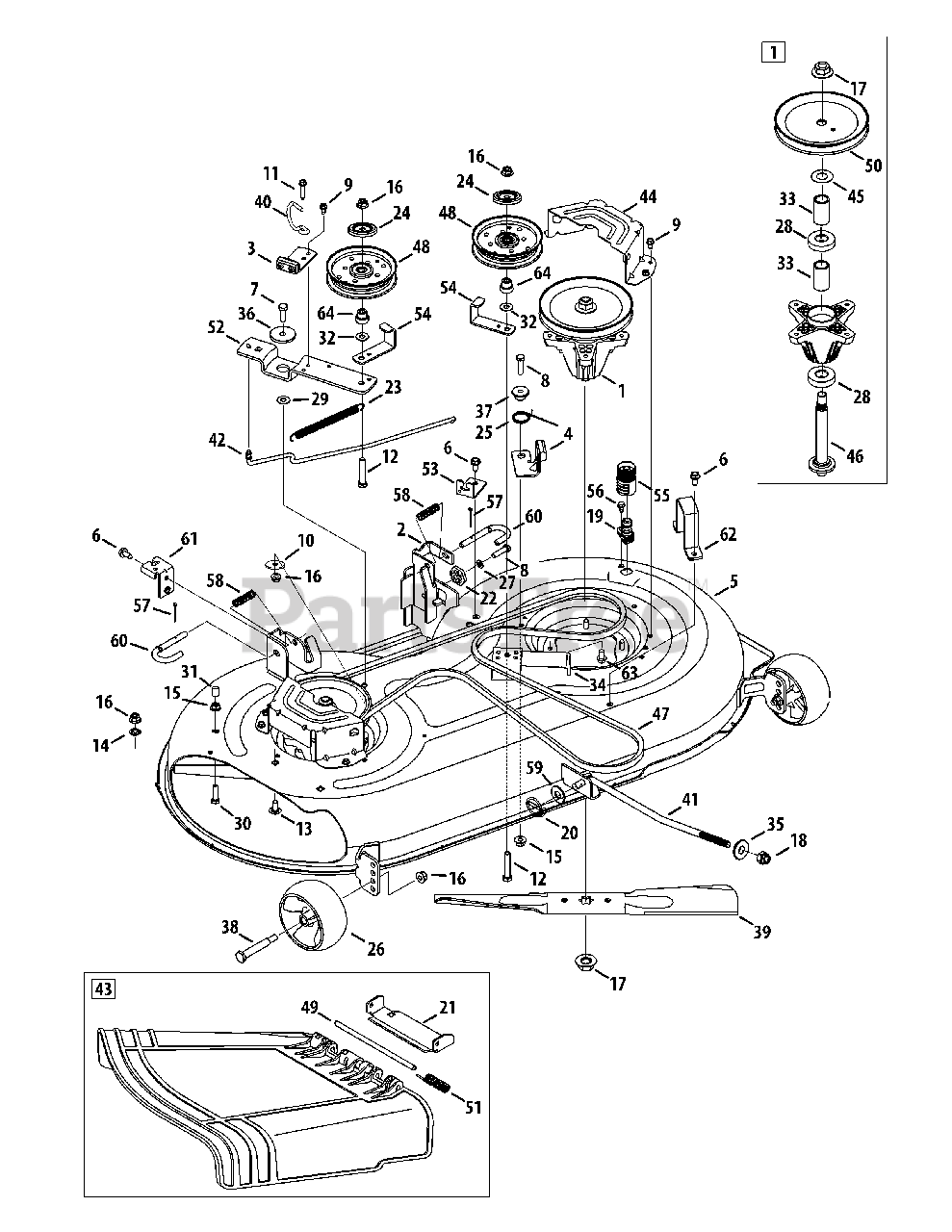

Mower Deck 42-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-04822A

Spindle Ass’y, Pulley, 6.3 Dia
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-0254B-0637

Bracket Ass’y, Deck, Hanger LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 983-04511

Brake Ass’y, Deck, 42/46

$63.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-04525

Brake Ass’y, Deck, 46"

$45.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 983-04572A-0637

Deck, Offset, 42" W/O wheel

$645.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3005

Hex Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 10

0

8

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-3039

Flat Washer, .406 x 1.500 x .105
(Superseded to 736-3039)

$

$

Not available

11

Troy-Bilt 710-0642

Screw, Self-tapping, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 5

0

16

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 917-04074

Gear, Deck, Adjustment

$13.99

$

In Stock, Qty 16

0

23

Troy-Bilt 932-0384

Spring, Extension, .62 Dia x 6.12

$14.99

$

In Stock, Qty 12

0

24

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04840

Spring, Torsion, .992 ID X 1.17 OD

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 941-0919A

Bearing, Ball, .787id x 1.85 Odx.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 936-0344

Washer, Flat, .385 X 1.0 X .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

31

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

32

Troy-Bilt 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

33

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 783-06643-0637

Bracket, Support, Stationary Idler

$9.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 736-0317

Bell Washer, .63 X 1.25 X .18

$7.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-04162C

Spacer, Shoulder, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 748-04272

Shoulder Spacer

$7.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 942-04308

Blade, Cut, 21.23" 2-In-1, Econ
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 747-05323

Rod, Keepr, Belt 42 Idler

$14.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 747-04944B

Deck Lift Rod

$24.99

$

In Stock, Qty 5

0

42

Troy-Bilt 747-05105B

Rod, Control, Brake 42"

$21.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 631-04288

Chut Assembly, 42" Deck
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 783-06424A-0637

Deck Belt Cover, 42

$10.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 936-0351

Washer, Flat, .760 Idx1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 738-1186A

Shift, Spindle, 6.11.

$49.99

$

In Stock, Qty 14

0

47

Troy-Bilt 954-04060B

Belt, V Type, A Sec X 96.5
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 10

0

48

Troy-Bilt 756-05042

Pulley, Idler, 4.25"Dia

$31.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 711-04847B

Pin, Hinge, Dia .3125 x 7.96

$8.99

$

In Stock, Qty 8

0

50

Troy-Bilt 956-1227

Pulley, Deck, 6.3 Dia

$26.99

$

In Stock, only 4 left!

0

51

Troy-Bilt 732-04372

Spring, Torsion, .44 I.D. X 2.0

$10.99

$

In Stock, Qty 9

0

52

Troy-Bilt 783-05946

Pivot idler Bracket, 46

$38.99

$

In Stock, Qty 11

0

53

Troy-Bilt 783-06243-0637

Bracket, Cable, Deck Engage

$10.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 783-06368A-0637

Bracket, Guard, Belt, 4.25 Pulley

$21.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

57

Troy-Bilt 914-0470

Cotter Pin, 1/8 X 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 732-04652

Comp. Spring, .535 OD X 1.751 LG

$6.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 936-0179

Flat Washer, .531 X 1.25 X .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

61

Troy-Bilt 783-04740-0637

Deck Engage Cable Bracket

$10.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 783-06632-0637

Deck Stop

$29.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.99

$

In Stock, Qty 20+

0
