TB 1942 (13AL93KS066) - Troy-Bilt 42" Lawn Tractor (2014) Engine Accessories, Single Parts Diagram

42" Lawn Tractor

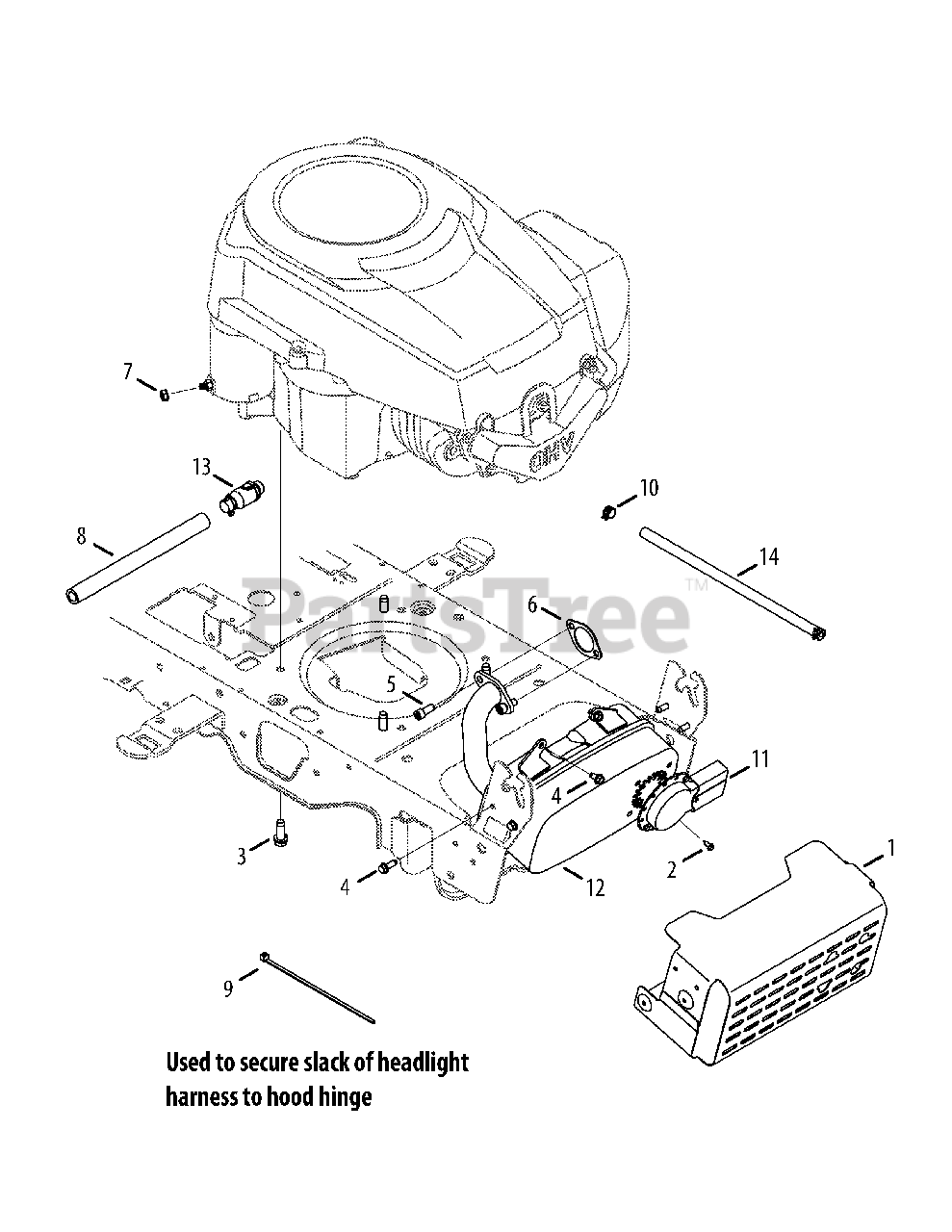

Engine Accessories, Single Parts Diagram

  • Title

1

Troy-Bilt 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0227

Screw, Indented Washer, #8-18:0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04683A

Taptite Screw, 3/8-16:1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

4

Troy-Bilt 710-0642

Taptite Screw, 1/4-20:0.750, Briggs

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1314A

Socket Head Screw, 5/16-18:.750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt BS-692236

Gasket, Exhaust, Briggs

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 751-3141-14

Extension Hose, Oil Drain

$11.99

$

In Stock, Qty 8

0

9

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 726-0205

Hose Clamp, .490 DIA.

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 751-11053A

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 751-10448D

Muffler, Briggs
(Superseded to 951-10448D)

$

$

Not available

13

Troy-Bilt 951-10517A

Oil Drain

$24.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 751-10349-22

Fuel Hose

$25.99

$

Usually ships in 3-6 days

0
