TB 16 R (15A-3000B66) - Troy-Bilt 16" Reel Mower (2021) General Assembly Parts Diagram

16" Reel Mower

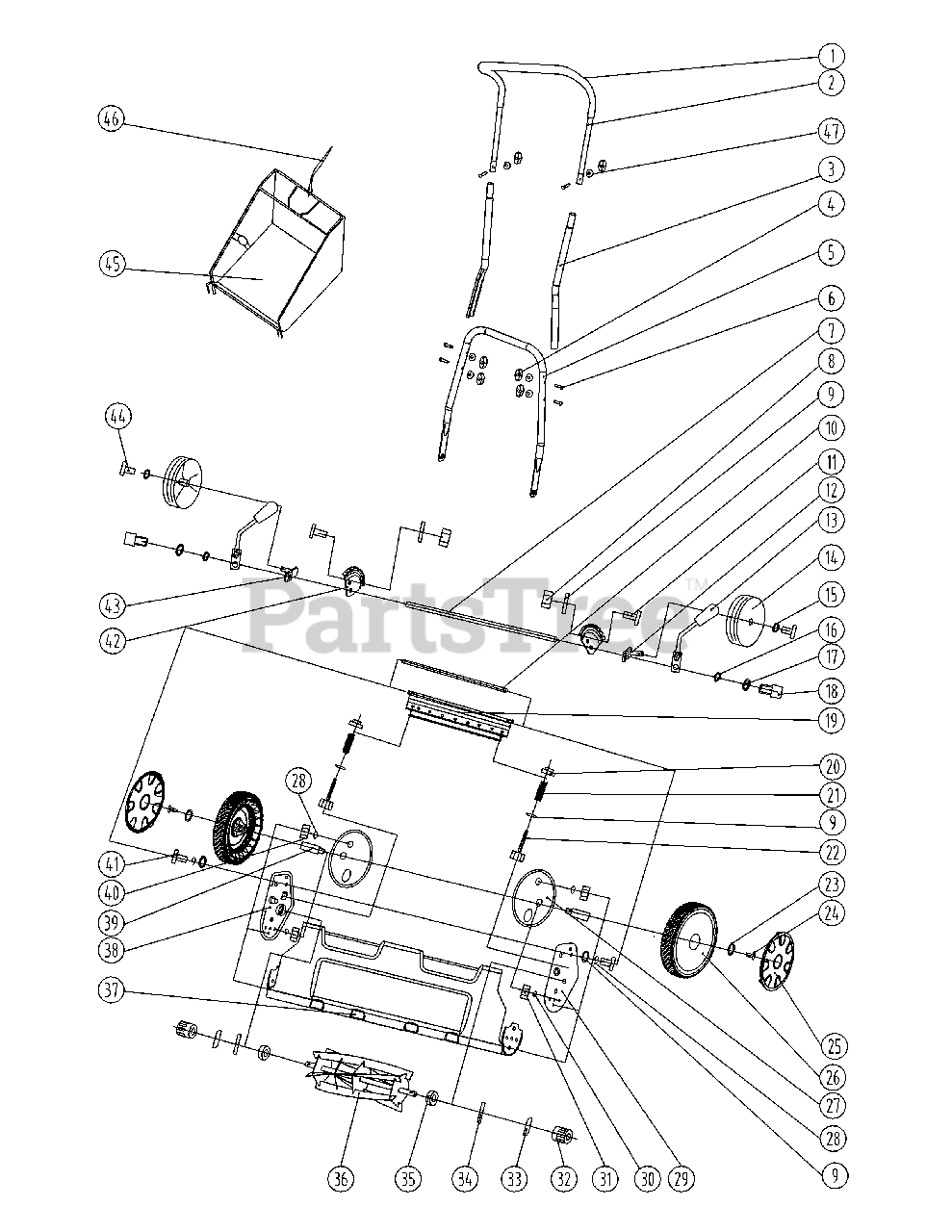

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 720-04167

GRIP

$9.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 749-04811

UPPER HANDLE

$27.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 749-04812

MIDDLE HANDLE

$18.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 720-04168

KNOB-RED

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 749-04813

LOWER HANDLE

Note: (TB 16R Only)

$29.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 749-04814

LOWER HANDLE

Note: (TB 18R Only)

$30.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-05321

BOLT

$4.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-05530

REAR SHAFT

Note: (TB 16R Only)

$24.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-05532

REAR SHAFT

Note: (TB 18R Only)

$24.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 712-04292

NUT

$3.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 736-04563

WASHER

$3.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 711-05534

PIN

Note: (TB 16R Only)

$29.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 711-05535

PIN

Note: (TB 18R Only)

$25.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-05322

SCREW

$3.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 787-01959

REAR BRACKET (LH)

$19.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 787-02086

HANDLE ADJUSTMENT (RH) RED

$27.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 787-02087

HANDLE ADJUSTMENT (LH) RED

$27.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 734-04605

REAR WHEEL

$24.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-04564

WASHER

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-04565

WASHER

$3.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-04566

WASHER

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-05323

BOLT

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-01964

LOWER BLADE BRACKET

Note: (TB 16R Only)

$77.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-01966

LOWER BLADE BRACKET

Note: (TB 18R Only)

$86.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 712-04293

NUT

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-04854

SPACER

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-05324

BOLT-M8 x 1.65

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 736-04567

WASHER

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 710-05325

BOLT

$3.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-08253

HUBCAP

$8.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 734-04606

COMPLETE WHEEL

$40.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 787-01968

BRACKET

$19.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 736-04568

WASHER

$3.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 787-01972

SUPPORT BRACKET (LH)

$28.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-04569

WASHER

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 712-04294

NUT

$3.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 717-04917

GEAR-41MM
(Superseded to 917-04917)

$9.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 787-01976

SUPPORT

$4.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 736-04570

WASHER

$3.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 741-04514

BEARING

$6.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 742-04362

ROLLER BLADE
(Superseded to 942-04362)

Note: (TB 16R Only)

$112.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 742-04363

ROLLER BLADE
(Superseded to 942-04363)

Note: (TB 18R Only)

$

$

Not available

37

Troy-Bilt 787-01977

DEFLECTOR SHIELD

Note: (TB 16R Only)

$58.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 787-01979

DEFLECTOR SHIELD

Note: (TB 18R Only)

$70.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 787-01981

SUPPORT BRACKET (RH)

$28.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 711-05536

WHEEL AXLE

$8.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 712-04295

NUT

$3.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 710-05326

BOLT

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 787-01985

ADJUST BRACKET (RH)

$6.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 787-01994

ADJUSTMENT BRACKET 9T (LH)

$6.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 787-01987

REAR BRACKET (RH)

$17.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-05327

BOLT

$3.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 764-04132

GRASSBAG

Note: (TB 18R Only)

$67.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 727-04374

GRASSBAG STRAP
(Superseded to 927-04374)

Note: (TB 18R Only)

$5.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 736-04573

SADDLE WASHER

$4.49

$

Usually ships in 3-6 days

0
