TB 154 (21A-154A966) - Troy-Bilt Garden Cultivator, Electric (2009) General Assembly Parts Diagram

Garden Cultivator, Electric

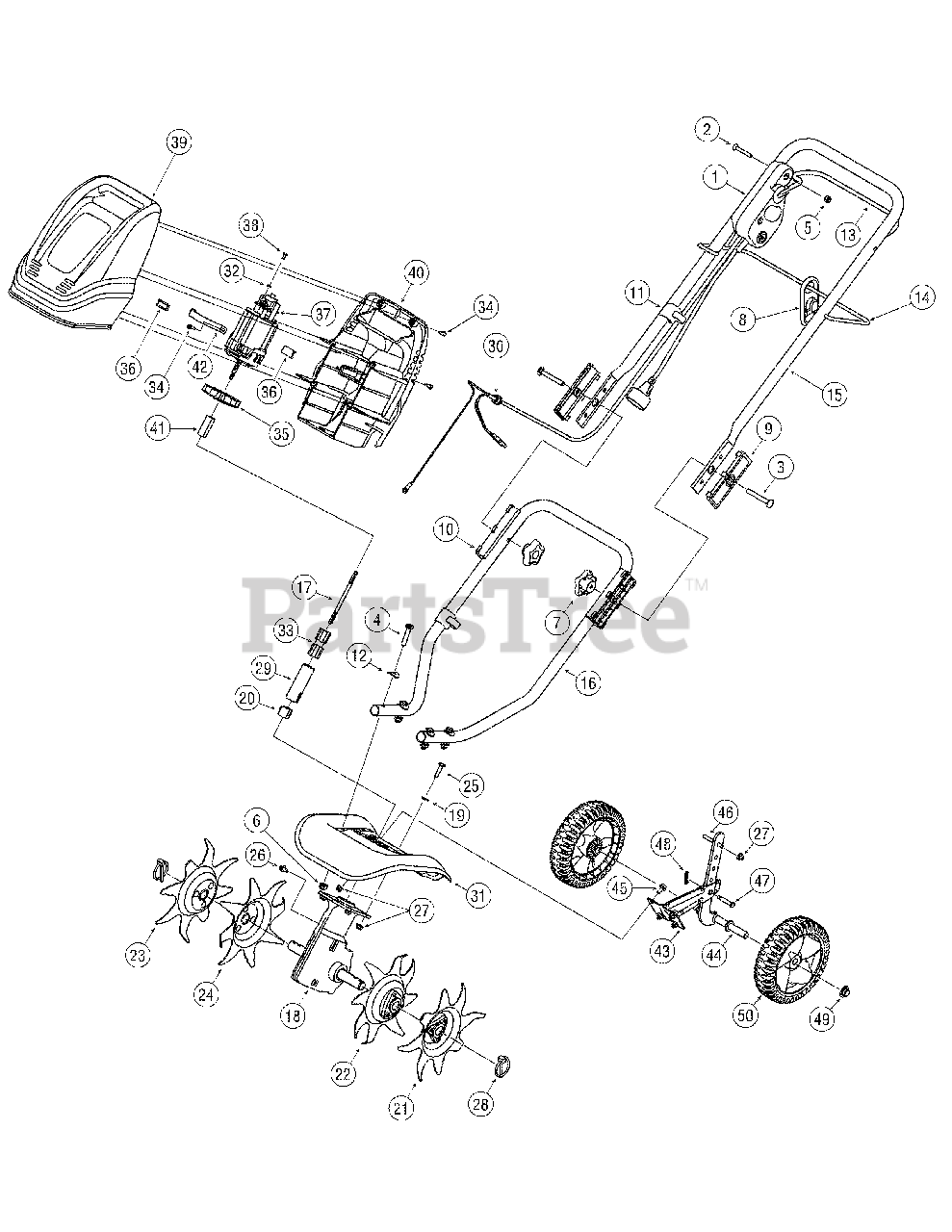

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 625-04027

Switch Assembly
(Superseded to 625-04027AS)

$239.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04213

Screw, T27,1/4-20, 1.75"
(Superseded to 753-04430)

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0572

Bolt, Carriage, 5/16-18, 2.50, Gr1

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0805

Hex Screw, 5/16-18,1.50, Gr5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-0324

Nut, Hex Lock, 1/4-20, Gr8, Nylon

$3.99

$

In Stock, Qty 16

0

6

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Gr8, Nylon

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-04052

Knob, Nut, 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 726-0368

Cord Retainer

Variations

Troy-Bilt 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-05178

Insulator, Upper Handle

$4.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 731-05186

Insulator, Lower Handle

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 731-1820

Guide Cable

$8.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-0451

Washer, Saddle, 320 x .93 x .060

$4.49

$

In Stock, Qty 11

0

13

Troy-Bilt 747-04375

Control Bail
(Superseded to 747-04375-0637)

Variations

Troy-Bilt 747-04375-0637

BAIL-CONTROL - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-04376A

Guide Rod
(Superseded to 747-04376A-0637)

Variations

Troy-Bilt 747-04376A-0637

ROD-GUIDE - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 749-04210

Handle, Upper

$78.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 749-1295A

Handle, Lower
(Superseded to 749-1295A-0637)

Variations

Troy-Bilt 749-1295A-0637

Lower Handle for Tiller, Black - POWDER BLACK (0637)

$59.99

$

In Stock, only 1 left!

0

$59.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 10055-20

Flex Shaft, 4.5"

$

$

Not available

18

Troy-Bilt 11A6798

Gearbox
(Superseded to 753-04075)

$196.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-182678

Washer, Flat
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 791-181578

Sleeve

$

$

Not available

21

Troy-Bilt 686-0176

Tine Assembly, Outer
(Superseded to 753-04071)

$

$

Not available

22

Troy-Bilt 686-0177

Tine Assembly, Inner
(Superseded to 753-04072)

$

$

Not available

23

MTD 686-0178

Tine Assembly, Outer
(Superseded to 753-04073)

$

$

Not available

24

Troy-Bilt 686-0179

Tine Assembly, Inner
(Superseded to 753-04074)

$

$

Not available

25

Troy-Bilt 710-0597

Hex Screw, 1/4-20, 1.00, Gr5

$3.99

$

In Stock, Qty 14

0

26

Troy-Bilt 4543

Bolt, Hex Washer 1/4-20 x .50
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 714-0220

Lynch Pin,.1875
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 750-04441

Tube,.922 x 1.0 x 3.0
(Superseded to 750-04441-0637)

Variations

Troy-Bilt 750-04441-0637

TUBE-BOOM ASM - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 731-04321

Bushing, Cord
(Superseded to 753-04428)

$17.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04000

Tine Shield
(Superseded to 753-04067)

$69.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1625

Washer, Lock, #10

$3.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1A2679

Tube w/ Spacers

$7.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 1948

Screw,.750
(Superseded to 791-181844)

$6.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 50004

Fan
(Superseded to 791-180155)

$19.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 50545

Motor Pad, 1"

$

$

Not available

37

Troy-Bilt 624-04008

Motor Assembly, 120V
(Superseded to 924-04008)

$

$

Not available

38

Troy-Bilt 1926

Screw, #8-32 x .312
(Superseded to 791-145569)

$9.99

$

In Stock, Qty 7

0

39

Troy-Bilt 731-05207

Motor Cover, Front

$69.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 731-05208

Motor Cover, Rear

$69.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 748-04085

Motor Hub

$11.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 786-04268

Motor Strap

$3.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 686-0181

Bracket Asesmbly, Tail Piece
(Superseded to 753-04058)

$41.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 686-0182A

Support Bracket Assembly, Wheel
(Superseded to 753-04063)

$58.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 710-04468

Hex Flange Screw, 1/4-20,.50,Gr5

$4.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 711-0993

Belt Guard Pin 1/4 Dia. x 1.43
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

47

Troy-Bilt 711-1017

Clevis Pin, .250 x 1.53

$7.49

$

In Stock, only 1 left!

0

48

Troy-Bilt 714-0104

Cotter Pin,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 734-1988

Wheel, 7 x 1.8 Spoke Bar Gray

$20.99

$

In Stock, only 4 left!

0
