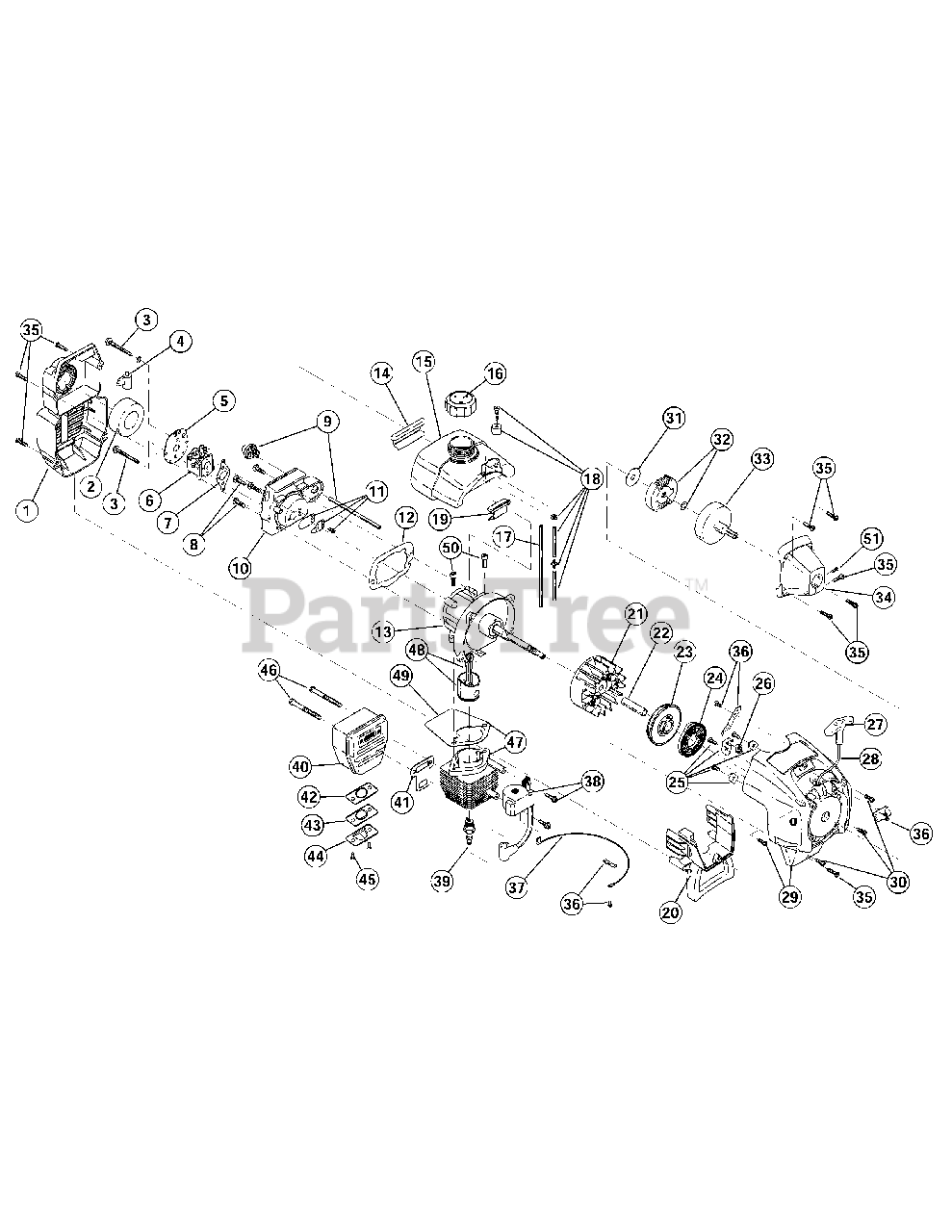

TB 15 CS (41ADT15C966) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04810

Air Cleaner Cover Assembly (includes 2 & 35)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 753-04227

Choke Lever

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04331

Carburetor Assembly (includes 7 & 18)
(Superseded to 753-04338)

$96.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

10

Troy-Bilt 753-1196

Carb Mount Assembly (includes 8,11 & 12)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04332

Crank Case Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04311

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

Troy-Bilt 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-04886

Fuel Line Assembly
(Superseded to 791-682039)

$16.99

$

In Stock, Qty 11

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 753-04702

Shroud Extension & Stand (includes 35)

$29.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-181065

Spacer

$

$

Not available

23

Troy-Bilt 753-04744

Recoil Pulley Assembly

$

$

Currently unavailable

24

Troy-Bilt 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-181441

Pulley Retainer Assembly

$

$

Not available

26

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-182619

Starter Housing Assembly (includes 23-28, 30, & 35-37)

$

$

Not available

30

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

31

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 791-181445

Clutch Rotor Assembly

$46.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

34

Troy-Bilt 753-04889

Clutch Cover Assembly (includes 35 & 48)

$21.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 791-181442

Switch Assembly

$19.99

$

Usually ships in 3-6 days

0

37

MTD 791-180036

Wire Lead

$

$

Not available

38

Troy-Bilt 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 753-04618

Muffler Assembly (includes 41-43)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

42

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

43

MTD 753-04690

Exhaust Diverter Hood

$

$

Not available

44

MTD 753-04691

Exhaust Diverter

$

$

Not available

45

Troy-Bilt 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

46

Troy-Bilt 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 753-04814

Cylinder Assembly (includes 46 & 47)

$83.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

49

Troy-Bilt 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

51

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04134

Engine Gasket Kit (not shown)

$

$

Not available

Troy-Bilt 753-1209

Piston Ring (not shown)

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04898

Short Block Assembly (includes 13, 40, 44, & 45) (not shown)

$

$

Not available

Troy-Bilt 791-181501

Starter Housing Screw Set (not shown)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181599

Clutch Springs (Qty. 2) (not shown)

$11.99

$

Usually ships in 3-6 days

0
