TB 146 EC (21BK146G766) - Troy-Bilt Tiller (2018) Engine Assembly Parts Diagram

Tiller

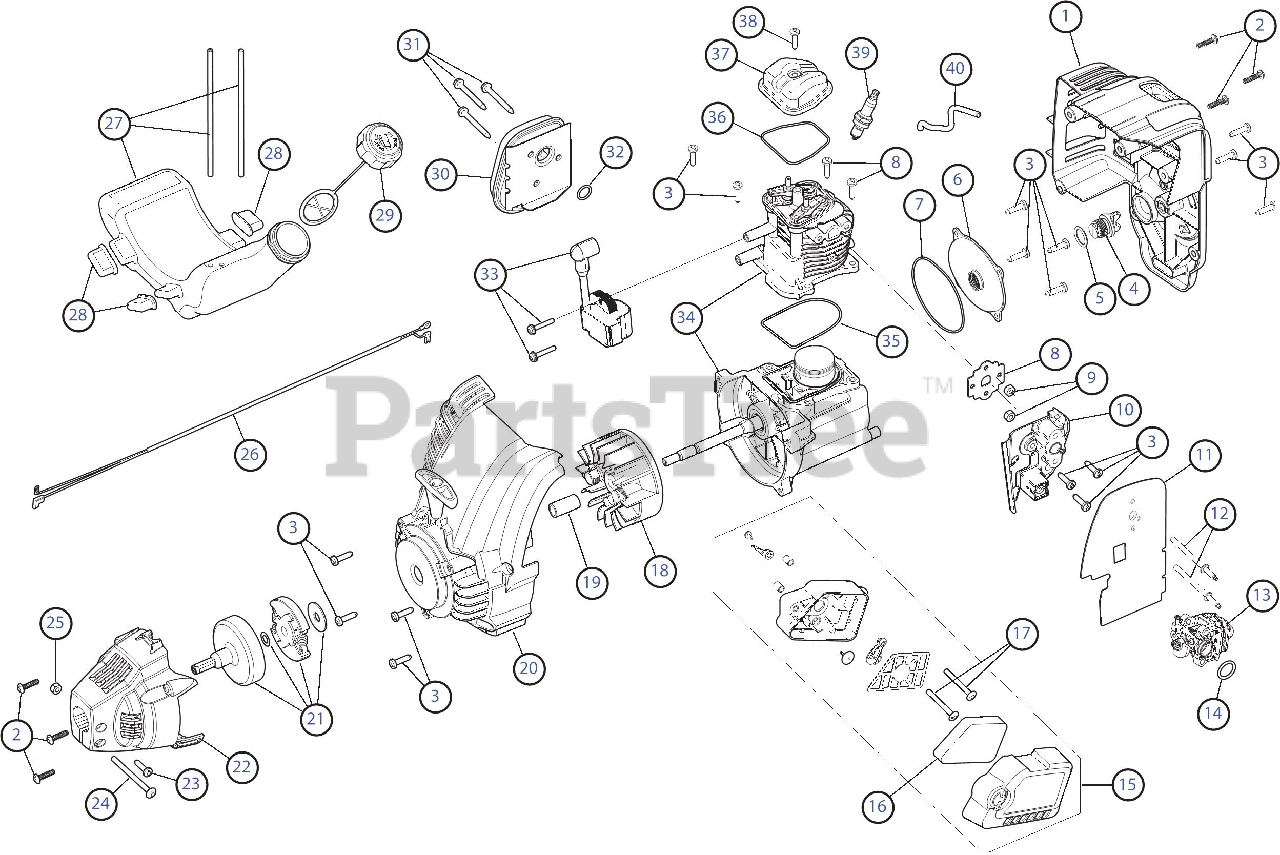

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06237

Engine Cover Assembly

Note: (Incl. 2 & 3)

$22.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

Starter Screw

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-05408

Oil Plug

Note: (Incl. 5)

$29.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

6

Troy-Bilt 753-06111

Crank Case Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 753-05238

Crank Case Cover O-Ring

$10.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-05247

Insulator Gasket

$

$

Not available

9

Troy-Bilt 712-04099

Insulator Nut

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

12

Troy-Bilt 753-05507

Air Filter Mounting Screw
(Superseded to 710-04645)

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 753-06258A

Carburetor

Note: (with Primer)

$60.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

15

Troy-Bilt 753-06541

Air Cleaner Cover Assembly

Note: (Incl. 16)

$

$

Not available

16

Troy-Bilt 753-05996

Air Filter

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-04517

Air Filter Screw

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 750-04434

Spacer

$6.99

$

In Stock, Qty 14

0

20

Troy-Bilt 753-06666

Starter Housing Assembly

Note: (Incl. 3)

$24.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 753-06281

Clutch Assembly

$22.99

$

In Stock, Qty 10

0

22

Troy-Bilt 753-05263

Clutch Cover

Note: (Incl. 2)

$27.99

$

In Stock, Qty 5

0

23

Troy-Bilt 710-04165

Anti-Rotation Screw

$2.99

$

In Stock, Qty 12

0

24

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

25

Troy-Bilt 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 9681

WIRE LEAD

$7.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06797

Fuel Tank Assembly

Note: w/Fuel Lines (Incl. 28)

$21.99

$

In Stock, Qty 9

0

28

Troy-Bilt 753-1229

Fuel Tank Cap

$22.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 753-06238

Muffler Assembly

Note: (Incl. 31 & 32)

$30.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

32

Troy-Bilt 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

33

Troy-Bilt 753-05447

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 753-06799

Shortblock Assembly

$106.99

$

In Stock, only 4 left!

0

35

Troy-Bilt 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

36

Troy-Bilt 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, Qty 11

0

37

Troy-Bilt 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 794-00082

Spark Plug

$7.49

$

In Stock, Qty 5

0

40

Troy-Bilt 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0
