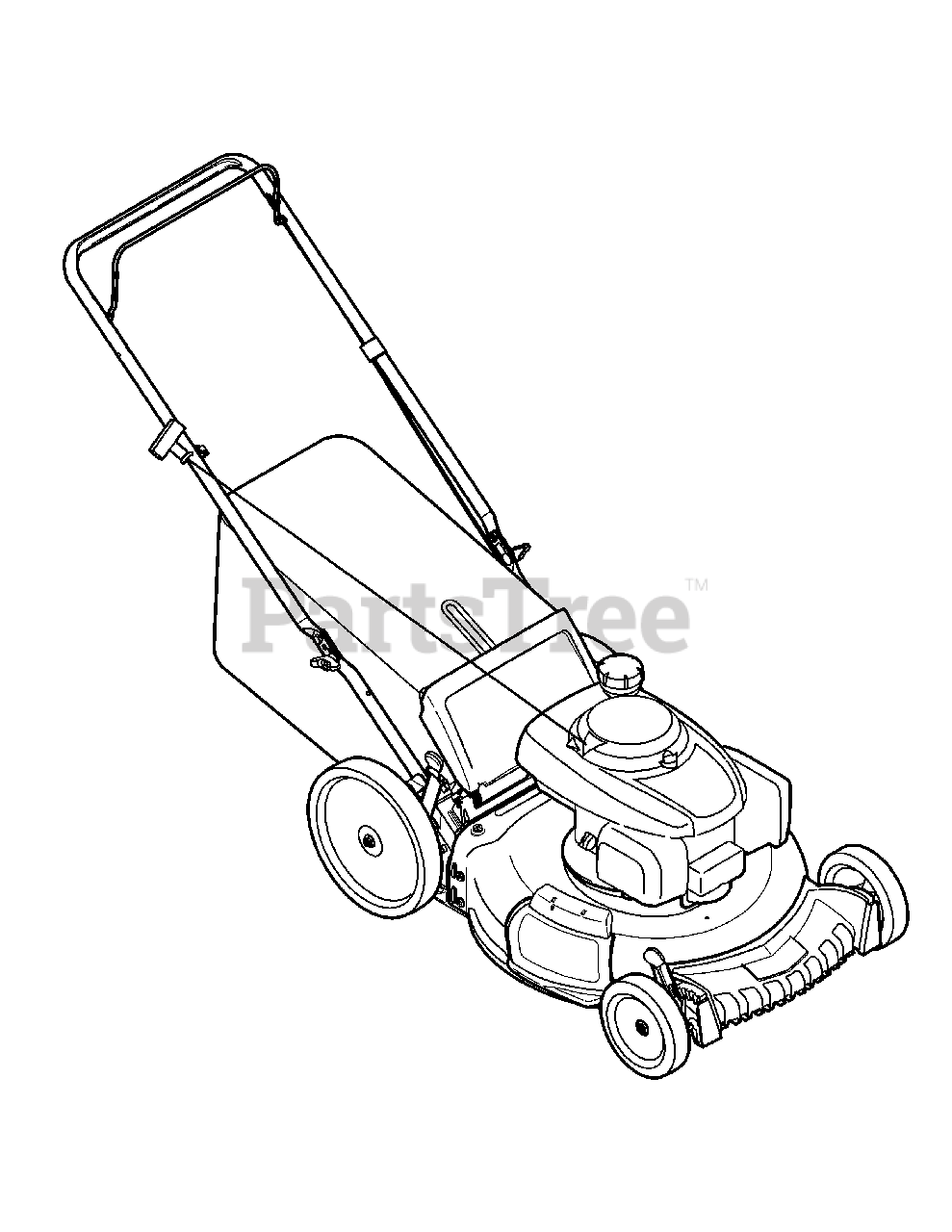

TB 130 (11A-B29Q766) - Troy-Bilt Walk-Behind Mower (2012) .Quick Reference TB130 Parts Diagram

Walk-Behind Mower

.Quick Reference TB130 Parts Diagram

  • Title

Troy-Bilt 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

Troy-Bilt n/a

Pre Filter

$

$

Currently unavailable

Honda 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

Honda 16952-ZA8-800

Fuel Filter

$8.99

$

In Stock, only 3 left!

0

Honda 17620-Z0J-800

Fuel Cap
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 2 left!

0

Troy-Bilt 946-04670

Control Cable
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

Troy-Bilt n/a

Choke Cable

$

$

Currently unavailable

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

Troy-Bilt 942-0741A

Blade

$29.99

$

In Stock, Qty 20+

0

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

Troy-Bilt 710-1044

Blade Bolt

$3.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04607

Front Wheel

$25.99

$

In Stock, Qty 20+

0

Troy-Bilt 634-04626

Rear Wheel
(Superseded to 634-05063)

$43.99

$

In Stock, only 2 left!

0

Troy-Bilt 731-07203

Trailshield

$10.99

$

In Stock, only 3 left!

0

Troy-Bilt 731-07131

Discharge Chute

$15.99

$

In Stock, Qty 8

0

Troy-Bilt 731-07486

Discharge Chute

Note: (Lowes models)

$16.99

$

In Stock, only 1 left!

0

Troy-Bilt 987-02516

Mulch Plug
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

Troy-Bilt 964-04117A

Grass Bag
(Superseded to 964-04117C)

$54.99

$

In Stock, only 1 left!

0

Troy-Bilt 747-05226

Grass Bag Frame
(Superseded to 647-04271-0637)

Variations

Troy-Bilt 747-05226-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 20+

0

$41.99

$

In Stock, Qty 20+

0
