TB 125 QS (41ABESPG766) - Troy-Bilt Blower, Electric Electric Blower/Vac 120 Volt Parts Diagram

Blower, Electric

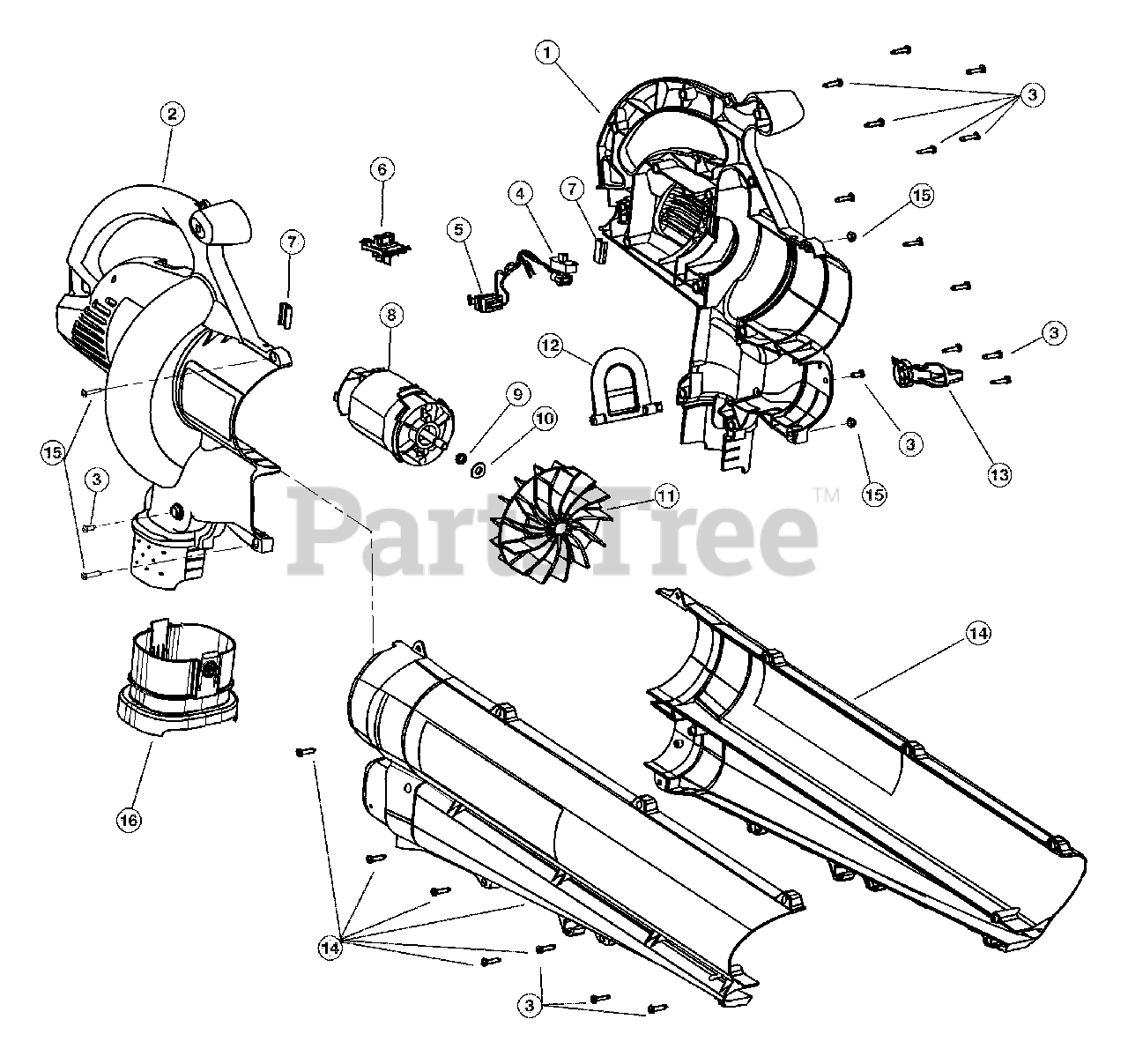

Electric Blower/Vac 120 Volt Parts Diagram

  • Title

1

Troy-Bilt 753-04752

Left Motor Housing

$

$

Not available

2

Troy-Bilt 753-04751

Right Motor Housing

$

$

Not available

3

Troy-Bilt 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

4

MTD 791-182546

Switch Assembly

$

$

Not available

5

Troy-Bilt 791-182547

Power Connection Wire Assembly

$15.99

$

Usually ships in 3-6 days

0

6

MTD 791-180509

Switch Lever

$

$

Not available

7

MTD 791-180503

Rubber Cushion

$

$

Not available

8

MTD 791-182548

Motor Assembly

$

$

Not available

9

Troy-Bilt 791-182549

Spacer

$

$

Not available

10

Troy-Bilt 791-180505

Washer

$

$

Not available

11

Troy-Bilt 791-182550

Impeller

$41.99

$

In Stock, Qty 6

0

12

Troy-Bilt 791-182410

Mode Control Flapper

$9.99

$

Usually ships in 3-6 days

0

13

MTD 791-00050

Mode Control Lever

Note: (includes 3)

$

$

Not available

14

Troy-Bilt 753-04102

Blower/Vac Tube Assembly
(Superseded to 791-00051)

Note: (includes 3)

$61.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

16

Troy-Bilt 791-182417

Vacuum Bag Adapter

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-612930

Cable Tie

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-182416

Vacuum Bag Assembly
(Superseded to 753-04465)

Note: (includes 16, Vacuum Bag & Cable Tie); Not Shown

$72.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075B

Shoulder Harness

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-182036

Carbon Brush Set

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt 753-04325

Patio Head

Note: Not Shown

$61.99

$

Usually ships in 3-6 days

0
