TB 110 (11A-A2BM711) - Troy-Bilt Walk-Behind Mower (2016) Deck Assembly Parts Diagram

Walk-Behind Mower

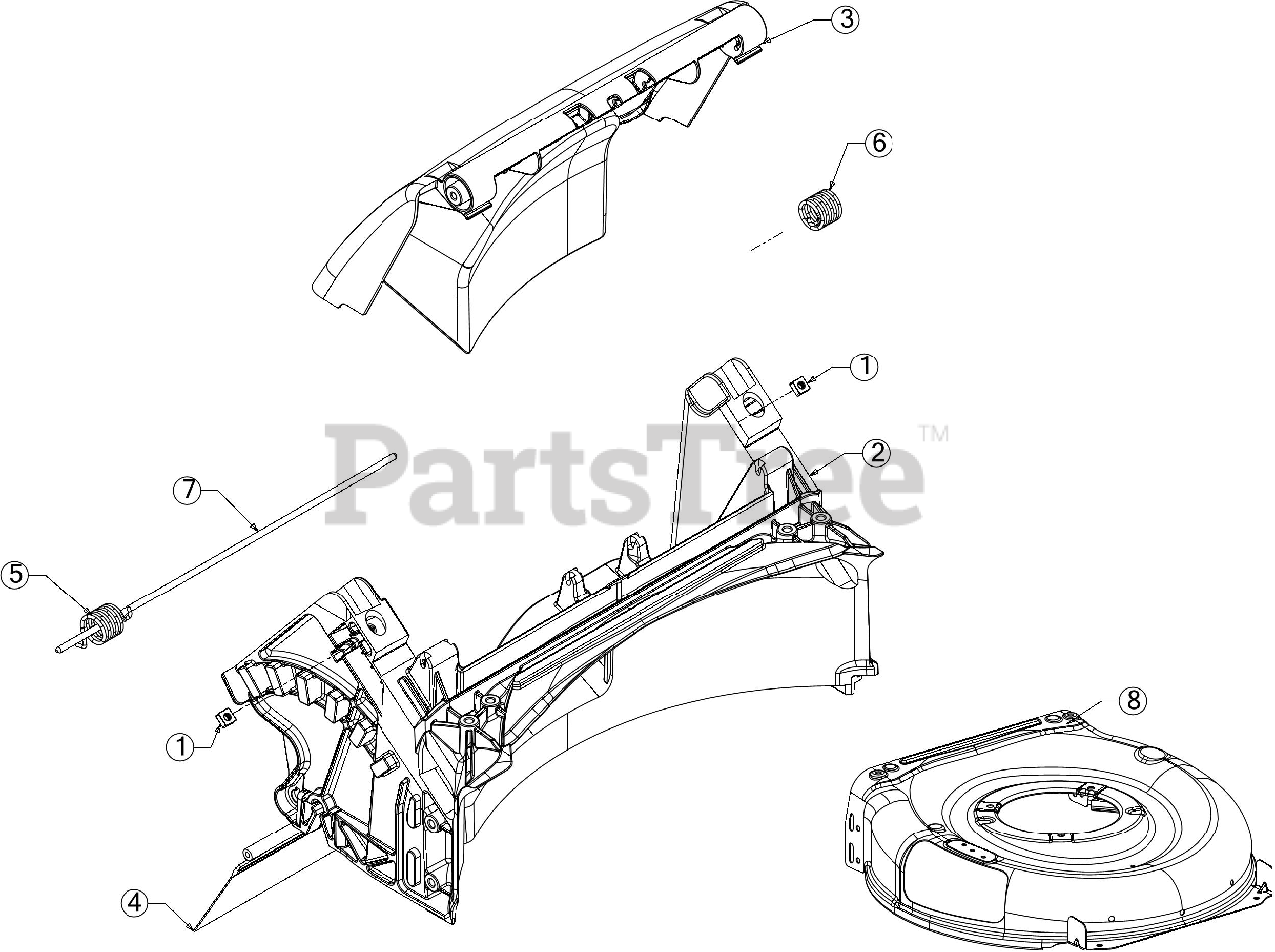

Deck Assembly Parts Diagram

  • Title
1

Troy-Bilt 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 631-04369A

DOOR ASSEMBLY
(Superseded to 631-08159)

$55.99

$

In Stock, only 1 left!

0

3

N/A

N/A

Note: Order Part Number 631-04371A

$

$

Not available

4

Troy-Bilt 731-07203

TRAILSHIELD

$10.99

$

In Stock, Qty 6

0

5

Troy-Bilt 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 11

0

8

Troy-Bilt 787-01869B-0638

21" DECK (3N1)

$143.99

$

In Stock, Qty 9

0
