TB 110 (11A-A2BM711) - Troy-Bilt Walk-Behind Mower (2015) General Assembly TB110 Parts Diagram

Walk-Behind Mower

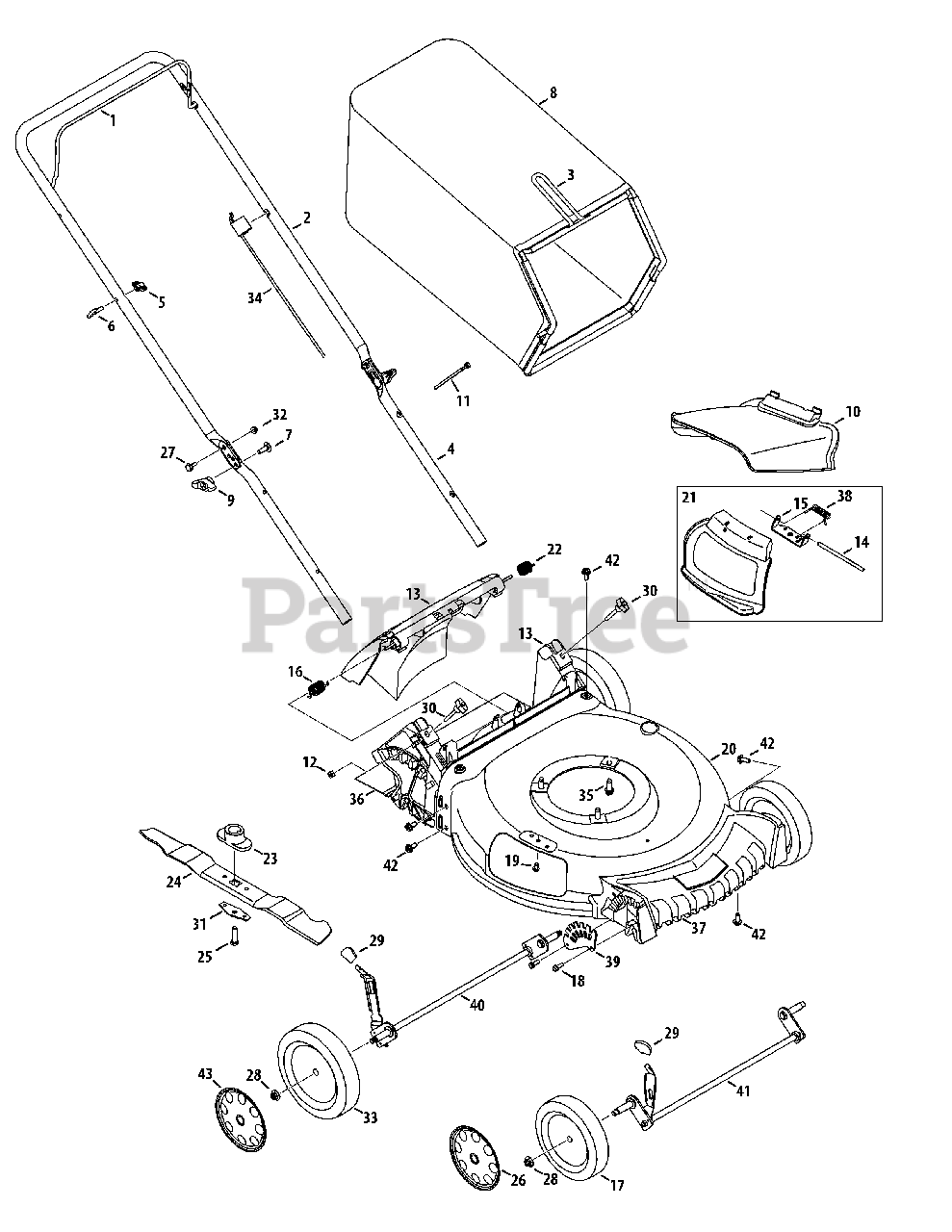

General Assembly TB110 Parts Diagram

  • Title

1

Troy-Bilt 747-05214D

Blade Control

$6.49

$

In Stock, Qty 9

0

2

Troy-Bilt 749-04681B-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

In Stock, Qty 7

0

3

Troy-Bilt 647-04271-0637

Grass Catcher Frame

$41.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

5

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 964-04117B

Grass Bag
(Superseded to 964-04117C)

$54.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 720-04124

Wing Knob

$4.99

$

In Stock, Qty 7

0

10

Troy-Bilt 731-07131

Side Chute

$15.99

$

In Stock, Qty 5

0

11

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

Note: Used on Model 11A-A2BM766

$55.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 631-04371A

Rear Discharge Door Assembly-(Lowes)
(Superseded to 631-08159)

Note: Used on Model 11A-A2BM711

$55.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 634-04607

Front Wheel

$25.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 787-01869B-0638

Deck , 21"

$143.99

$

In Stock, Qty 9

0

21

Troy-Bilt 987-02516A

Hinged Mulch Plug Assembly
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 731-07197

Hub Cap, 7"

$8.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 14

0

29

Troy-Bilt 720-04131A

Adjustment Lever Knob

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 720-05066A

Wing Nut

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

32

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 634-04660

Rear Wheel

$27.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 946-04661A

Control Cable

$13.99

$

In Stock, only 4 left!

0

35

Troy-Bilt 710-04683B

TT Sems Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

36

Troy-Bilt 731-07203

Trail Shield

$10.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 731-07195A

Front Cover
(Superseded to 731-11699)

$33.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 787-01818A-0637

Front Height Adjuster Plate

$10.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 911-04142A

Rear Axle Assembly
(Superseded to 611-04142A)

$31.99

$

In Stock, Qty 7

0

41

Troy-Bilt 911-04143B

Front Axle Assembly
(Superseded to 611-04143B)

$30.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-07198

Hub Cap, 8"

$7.49

$

In Stock, Qty 7

0
