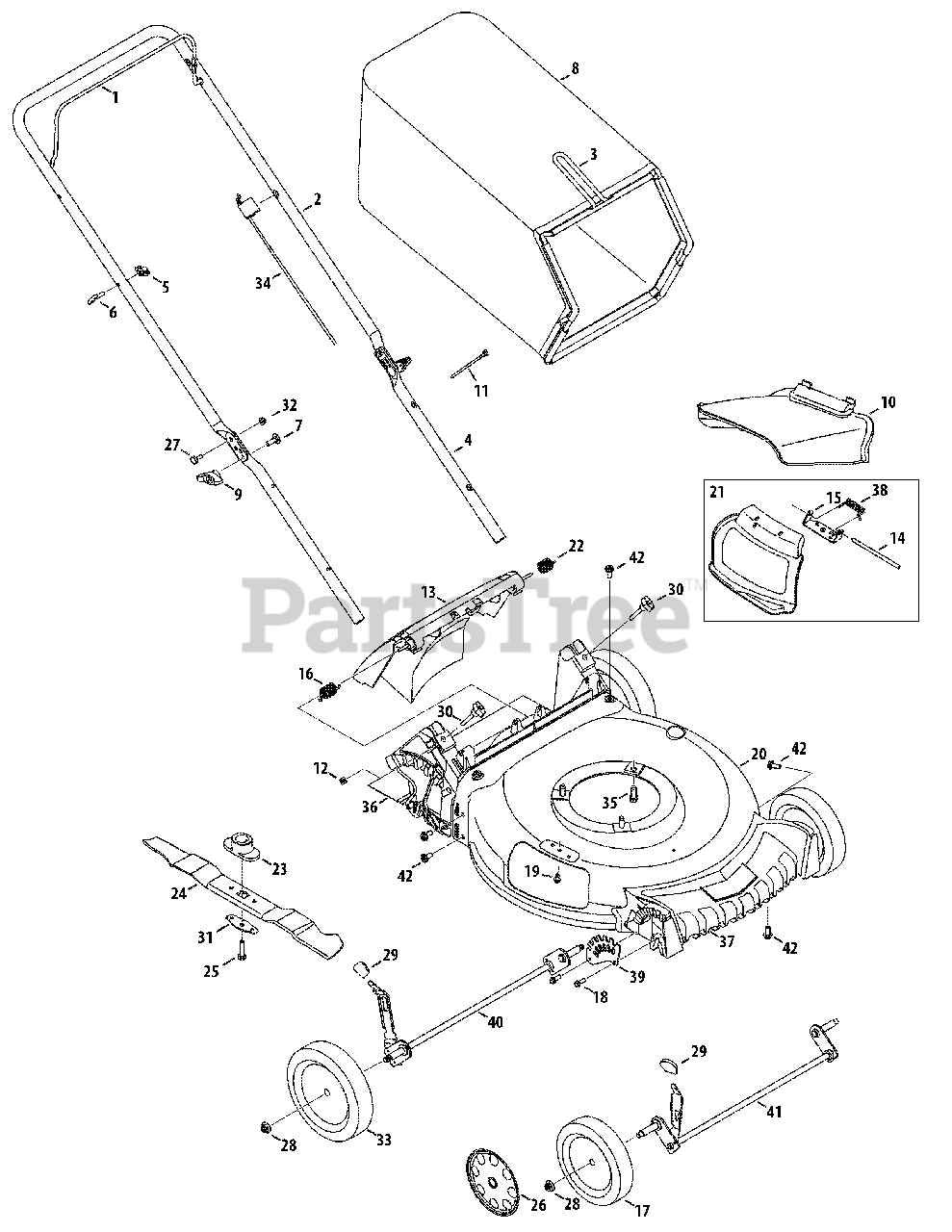

TB 110 (11A-A26M066) - Troy-Bilt Walk-Behind Mower (2010) General Assembly 11A-A26 Parts Diagram

Walk-Behind Mower

General Assembly 11A-A26 Parts Diagram

  • Title
1

Troy-Bilt 747-05214

Blade Control
(Superseded to 747-05214D)

$6.49

$

In Stock, Qty 9

0

2

Troy-Bilt 749-04680-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 747-05226-0637

Grass Catcher Frame
(Superseded to 647-04271-0637)

$41.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 2 left!

0

5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04998

Carriage Screw, 5/16-18

$5.99

$

In Stock, Qty 5

0

8

Troy-Bilt 964-04117

Grass Bag
(Superseded to 964-04117C)

$54.99

$

In Stock, only 1 left!

0

9

$4.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 731-07131

Side Chute w/Flap

$15.99

$

In Stock, Qty 8

0

11

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 631-04369

Rear Discharge Door & Baffle Assembly-Generic
(Superseded to 631-08159)

$55.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 631-04371

Rear Discharge Door & Baffle Assembly-Lowes
(Superseded to 631-08159)

Note: Model numbers ending in 011 & 211

$55.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 634-04607

Front Wheel

$25.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 787-01776-0638

Deck, 21"
(Superseded to 787-01869B-0638)

$143.99

$

In Stock, Qty 9

0

21

Troy-Bilt 987-02516

Hinged Mulch Plug Assembly
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

Usually ships in 3-6 days

0

26

$8.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 11

0

28

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

29

Troy-Bilt 720-04131

Adjustment Lever Knob
(Superseded to 720-04131A)

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 720-04127

Wing Nut
(Superseded to 720-05067A)

$5.99

$

In Stock, Qty 14

0

31

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

32

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 734-04014B

Rear Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

34

Troy-Bilt 946-04661

Control Cable
(Superseded to 946-04661A)

$13.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

36

Troy-Bilt 731-07203

Trail shield

$10.99

$

In Stock, only 3 left!

0

37

Troy-Bilt 731-07195

Front Cover
(Superseded to 731-11699)

$33.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 787-01818-0637

Front Height Adjuster Plate
(Superseded to 787-01818A-0637)

$10.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 911-04149

Rear Axle Assembly
(Superseded to 753-06703)

$30.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 911-04143A

Front Axle Assembly
(Superseded to 911-04143B)

$30.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+
