TB 10 CS (41BDT10G966) - Troy-Bilt String Trimmer Boom and Trimmer Parts Diagram

String Trimmer

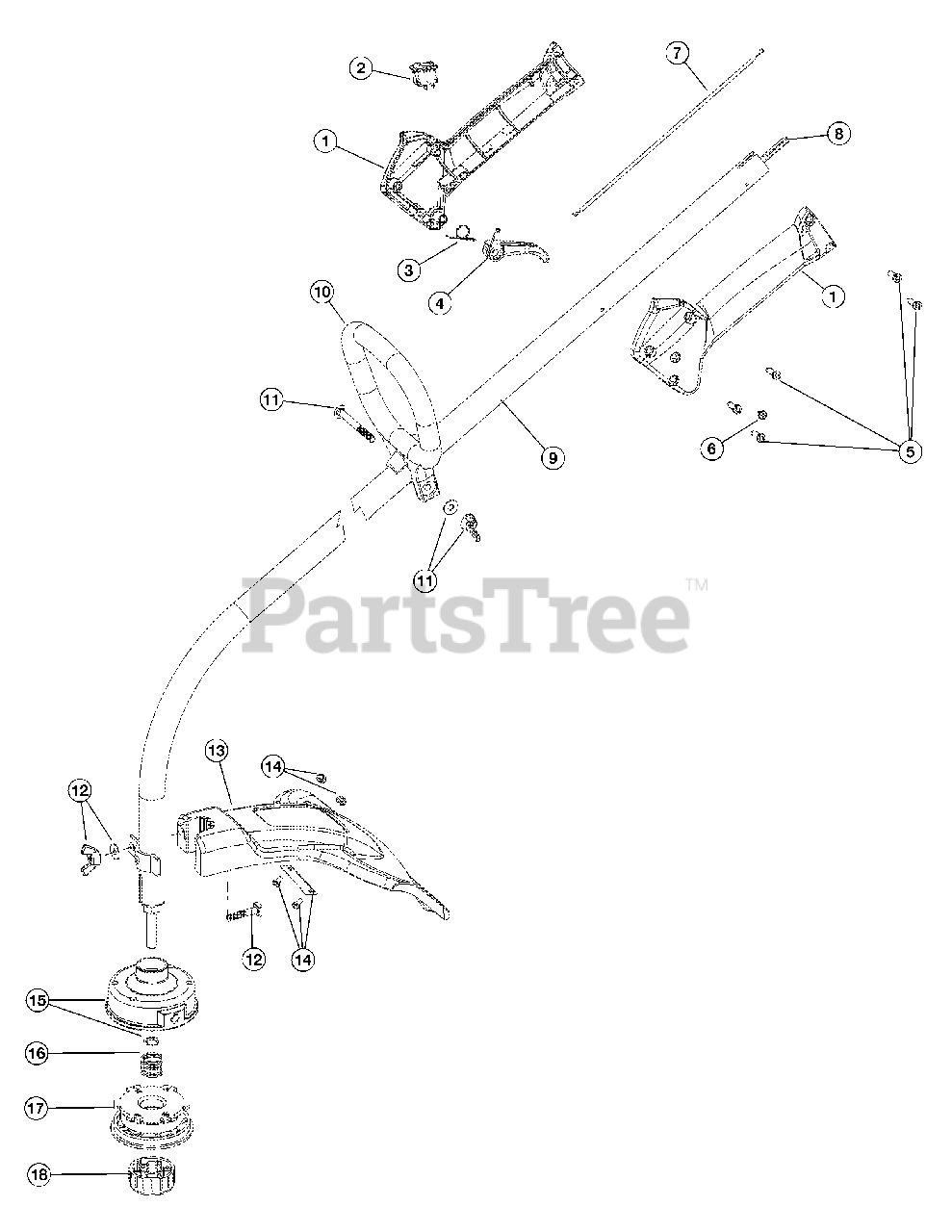

Boom and Trimmer Parts Diagram

  • Title

1

Troy-Bilt 753-04829

Throttle Housing Assembly (includes 2-4)

$7.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

Troy-Bilt 753-04917

Throttle Housing Screws

$

$

Not available

6

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

7

Troy-Bilt 753-04405

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-04830

Flexible Drive Shaft

$44.99

$

Usually ships in 3-6 days

0

9

MTD 753-04831

Drive Shaft Housing Assembly (includes 8)

$

$

Not available

10

Troy-Bilt 791-153064

D-Handle Assembly (includes 11)

$

$

Not available

11

Troy-Bilt 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04283

Guard (includes 14)

$50.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-04284

Outer Reel w/Retainer

$28.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

17

Troy-Bilt 791-610318

Inner Reel
(Superseded to 753-1155)

$22.99

$

In Stock, Qty 6

0

18

Troy-Bilt 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 20+

0

Troy-Bilt 791-153577B

Inner Reel and Line (Optional - not shown)

$28.99

$

In Stock, only 2 left!

0
