Tank 60 (53AH8STD050) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kohler Fabricated Deck Spindle Assembly 60-Inch Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kohler

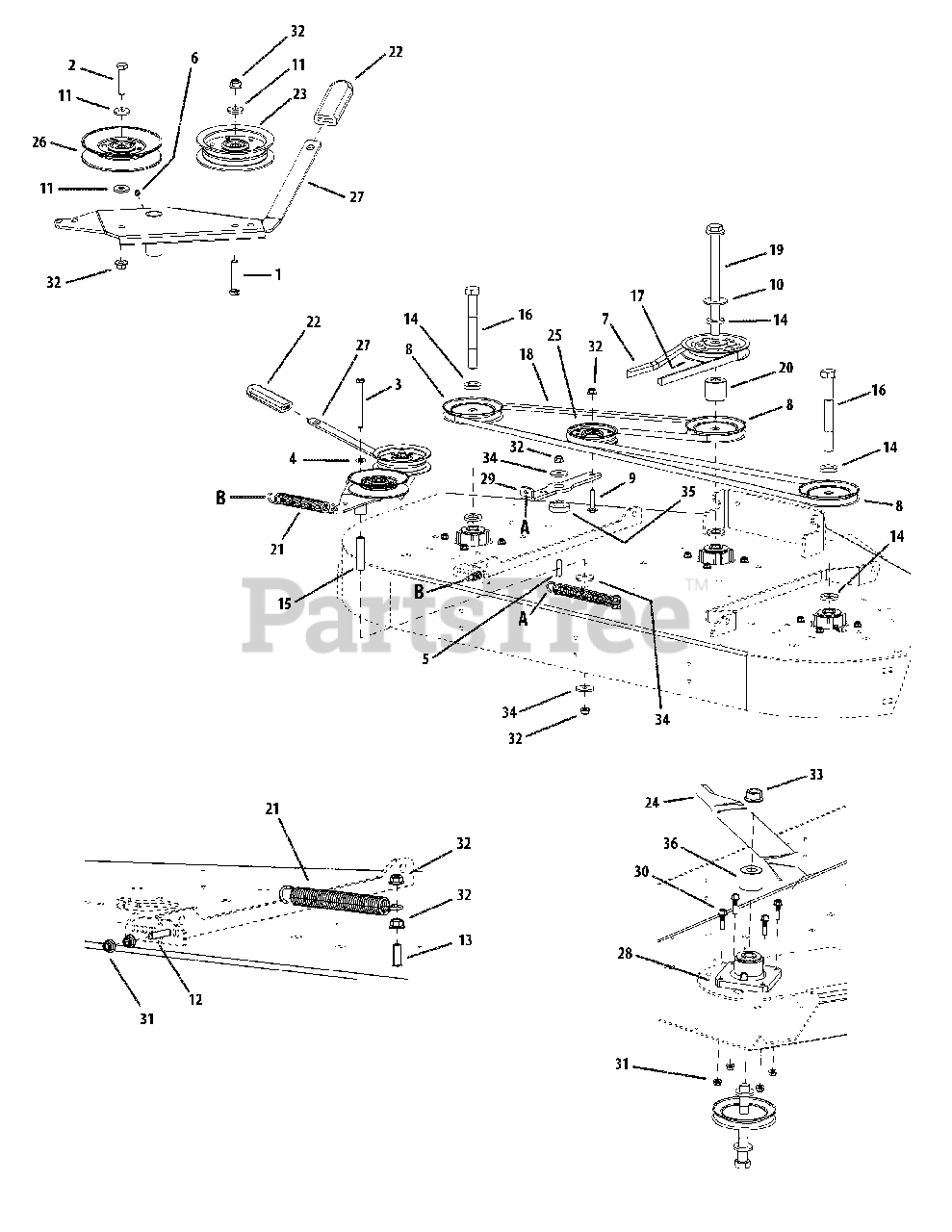

Fabricated Deck Spindle Assembly 60-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012158

Washer, 3/8

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 00068079

V-Belt, B-Section, BK90, PTO

$92.99

$

In Stock, only 2 left!

0

8

Cub Cadet 956-1209

V-Pulley, 4.90 OD

$60.99

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0560

Carriage Bolt, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet 01003123

Spacer, .812 ID x 1.47 OD x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003245

Spacer, .39 x .635 x 2.75

$18.99

$

In Stock, Qty 11

0

16

Cub Cadet 01004185

Hex Cap Screw, 3/4-16 x 6.50

$41.99

$

In Stock, only 3 left!

0

17

Cub Cadet 01005203

V-Pulley, 5.774 OD

$132.99

$

In Stock, Qty 5

0

18

Cub Cadet 01005376

V-Belt, A Section x 122.3, Deck
(Superseded to 01005376P)

$87.99

$

In Stock, only 2 left!

0

19

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01006681

Spacer, .76 ID x 1.75 OD x 1.60

$

$

Not available

21

Cub Cadet 02003712

Extension Spring, .94 x OD x 7.57
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

22

Cub Cadet 02003740

Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

24

Cub Cadet 02005019

Hi-Lift Blade, 21.0, 0.756 ID
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

25

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005079

Idler Pulley, 5.06 OD
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

27

Cub Cadet 02005509P

Idler Arm Assembly includes:

$100.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

28

Cub Cadet 918-04939

Aluminum Spindle Assembly

$

$

Not available

29

Cub Cadet 703-07010

Idler Arm

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-04831

Bolt, 5/16-18 x 1.25
(Superseded to 710-04831A)

$7.99

$

In Stock, Qty 12

0

31

Cub Cadet 712-04063

Nut, 5/16-18, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Nut, 3/8-16, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0227

Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

35

Cub Cadet 738-04376

Shoulder Screw, .854 x .280

$9.99

$

In Stock, only 3 left!

0

36

Cub Cadet 750-05329

Spacer, .76 ID x 1.75 OD x 1.50

$19.99

$

Usually ships in 3-6 days

0
