Tank 48 (53AH8STB050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Front Caster Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

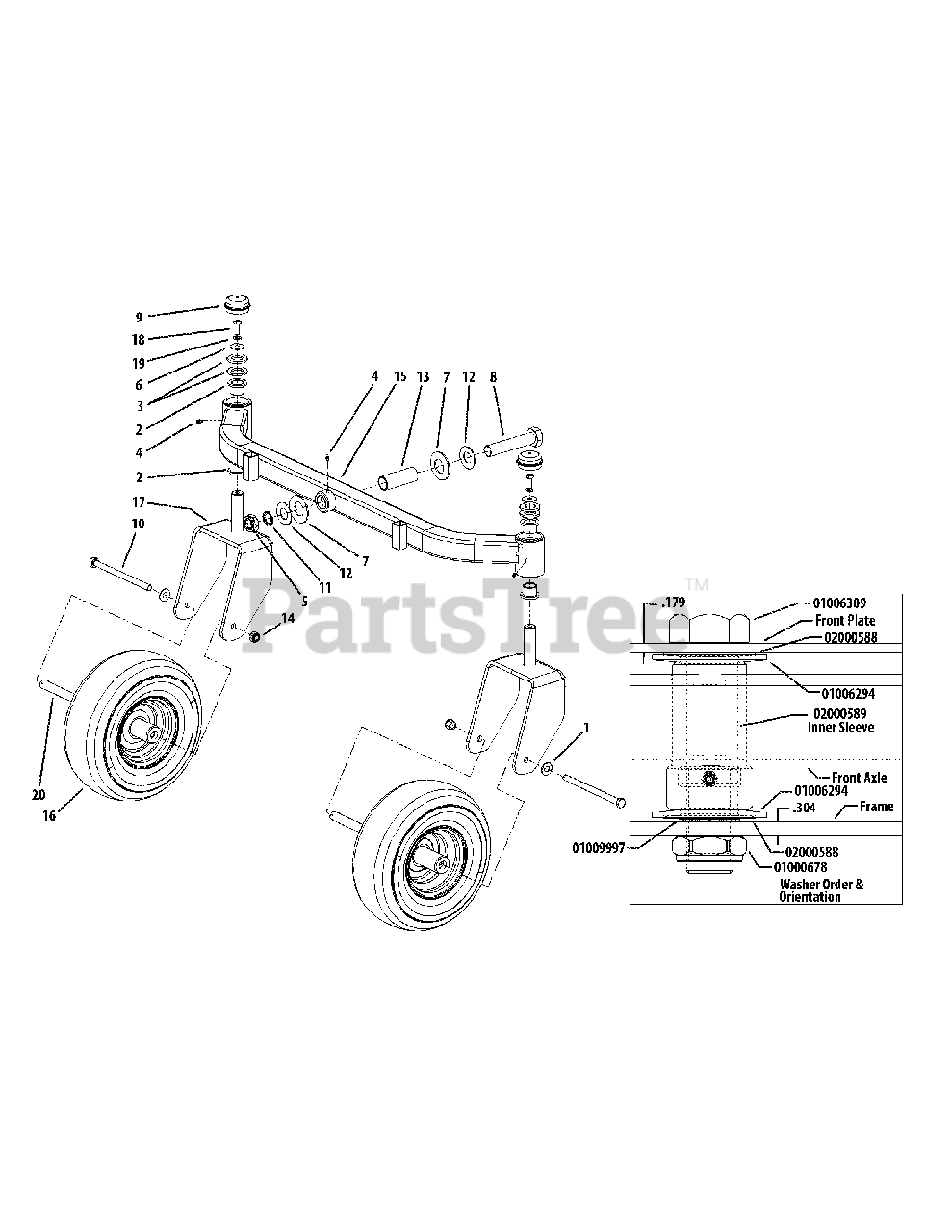

Front Caster Assembly Parts Diagram

  • Title
1

Cub Cadet 00012577

Washer, 1/2 x 1 Shim

$5.49

$

In Stock, Qty 12

0

2

Cub Cadet 00023793

Flange Bearing, 1.013 ID

$15.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

4

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 712-3075

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

6

Cub Cadet 936-0133

Flat Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

7

Cub Cadet 01006294

Bell Washer, 1.25 ID x 2.5 x .157
(Superseded to 736-04604)

$8.49

$

In Stock, only 2 left!

0

8

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$30.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01006961

HHCS, 1/2-20, 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

11

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 02000588

Flat Washer, 1.00 ID
(Superseded to 736-04605)

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$31.99

$

In Stock, only 1 left!

0

14

Cub Cadet 02002299

Lock Nut, Nylon Insert, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 02004384-0637

Front Axle Assembly (60")

$558.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02005142-0637

Front Axle Assembly, Straight (48")

$

$

Not available

16

Cub Cadet 02005000

Wheel, 13 x 5.00 x 6.0, includes:

$

$

Not available

$151.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002106

Roller Bearings (per tire)

$32.99

$

In Stock, only 2 left!

0

16

Cub Cadet 02002107

Retainer Bushings (per tire)

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 02005001-0637

Castor Wheel Mounting Bracket

$105.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 750-04775A

Spacer, .51 ID x .75 OD x 5.825

$28.99

$

In Stock, Qty 20+

0
