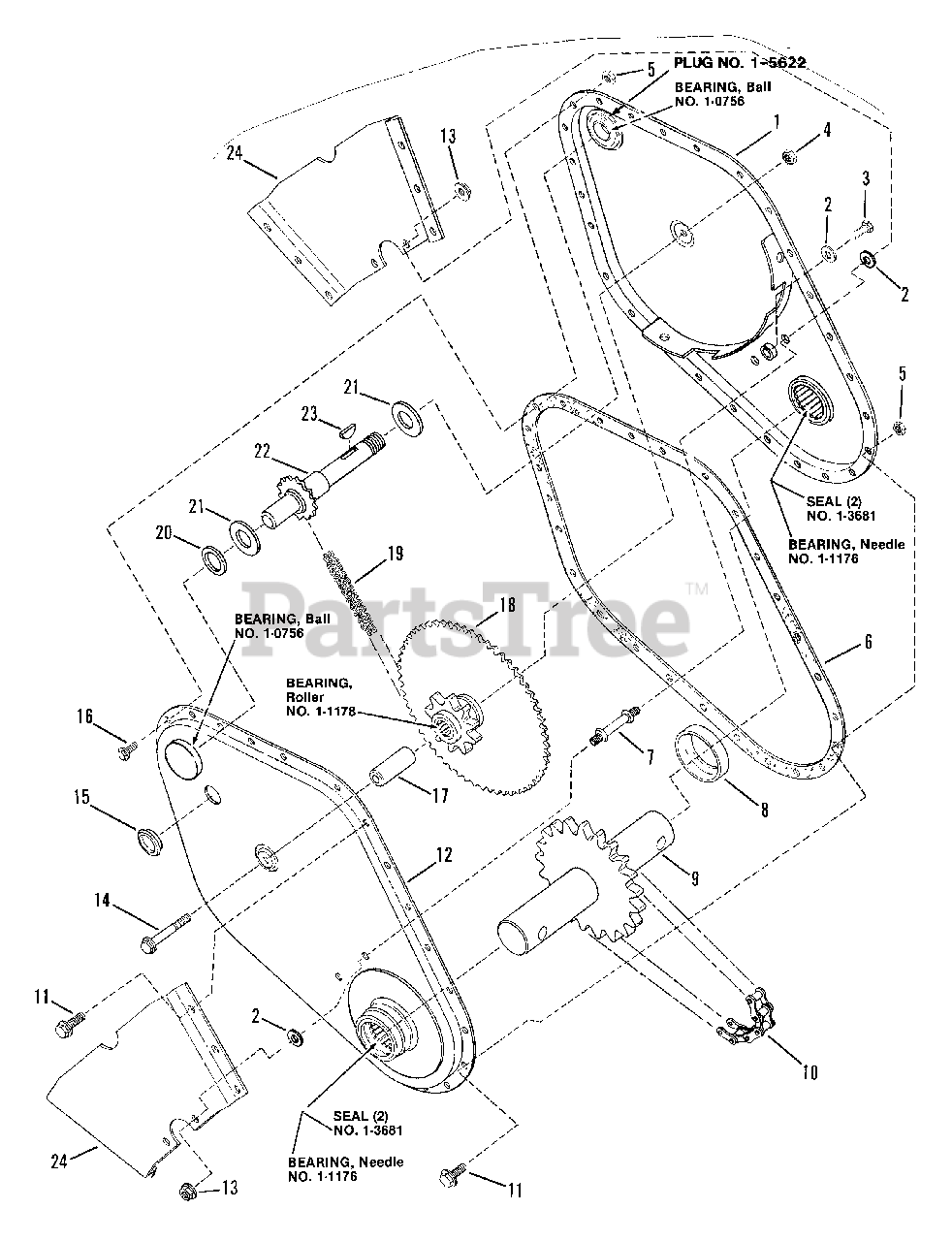

TA 520 (7082797) - Snapper Tiller Attachment Gear Box Group Parts Diagram

Tiller Attachment

Gear Box Group Parts Diagram

  • Title

1

Snapper 7051408

CASE ASSM'Y (R.H.)

Note: Was 49714 (Includes following indented items)

$

$

Not available

10756

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

11176

Snapper 7011176

BEARING, Needle
(Superseded to 7011176YP)

$46.99

$

In Stock, only 2 left!

0

13681

Snapper 7013681

SEAL
(Superseded to 7013681YP)

$32.99

$

Usually ships in 2-12 days

0

13681

Snapper 7023775

SEAL (No longer available, use 7013681)

$

$

Currently unavailable

15622

Snapper 7015622

SEAL
(Superseded to 7015622YP)

$13.99

$

Usually ships in 2-12 days

0

2

Snapper 7014980

WASHER, Seal

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090554

SCREW, 5/16-18x3/8" Self-Tapping

$

$

Not available

4

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

6

Snapper 7019716

GASKET, Case Housing
(Superseded to 7019716YP)

$43.99

$

In Stock, only 1 left!

0

7

Snapper 7014677

STUD, Spacer
(Superseded to 7014677YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7011181

SPACER

$

$

Not available

9

Snapper 7040364

SHAFT, Tine Rotor

$

$

Not available

10

Snapper 7014313

CHAIN, Drive-#50
(Superseded to 7014313YP)

$39.99

$

Usually ships in 2-12 days

0

11

Snapper 7091318

SCREW, 5/16-18x3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

12

Snapper 7051363

CASE ASSM'Y (L.H.)

Note: (Includes following indented items)

$

$

Not available

--

Snapper 7049701

CASE, Left Hand (No longer available)

$

$

Currently unavailable

--

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

--

Snapper 7011176

BEARING, Needle
(Superseded to 7011176YP)

$46.99

$

In Stock, only 2 left!

0

--

Snapper 7013681

SEAL
(Superseded to 7013681YP)

$32.99

$

Usually ships in 2-12 days

0

--

Snapper 7023775

SEAL (No longer available, use 7013681)

$

$

Currently unavailable

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7090838

SCREW, 5/16-24x2 1/4" Hex Head Cap

$

$

Not available

15

Snapper 7011024

PLUG
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

16

Snapper 7090858

SCREW, 5/16-18x1/2" Self Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7021752

RACE, Sprocket Bearing
(Superseded to 7021752YP)

$87.99

$

In Stock, only 1 left!

0

18

Snapper 7050724

SPROCKET, Intermediate

Note: (Includes following indented items)

$

$

Not available

--

Snapper 7040437

SPROCKET
(Superseded to 7040437YP)

$168.99

$

Usually ships in 2-12 days

0

11178

Snapper 7011178

BEARING, Roller (Press fitted flush)

$

$

Not available

19

Snapper 7014312

CHAIN, Drive-#35
(Superseded to 7014312YP)

$28.99

$

Usually ships in 2-12 days

0

20

Snapper 7013681

SEAL
(Superseded to 7013681YP)

$32.99

$

Usually ships in 2-12 days

0

21

Snapper 7010690

WASHER, Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7019102

SHAFT, Drive
(Superseded to 7019102YP)

$112.99

$

Usually ships in 2-12 days

0

23

Snapper 7010211

KEY, Woodruff, 3/16x3/4"-#9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

24

Snapper 7038090

PLATE, Wear Guard

$

$

Currently unavailable

25

Snapper 7015017

RING, Tolerance (Not Shown)
(Superseded to 7015017YP)

Note: (Used on short end of some shafts #7019102)

$34.99

$

Usually ships in 2-12 days

0
