TA 520 (7082797) - Snapper Tiller Attachment Cover Group Parts Diagram

Tiller Attachment

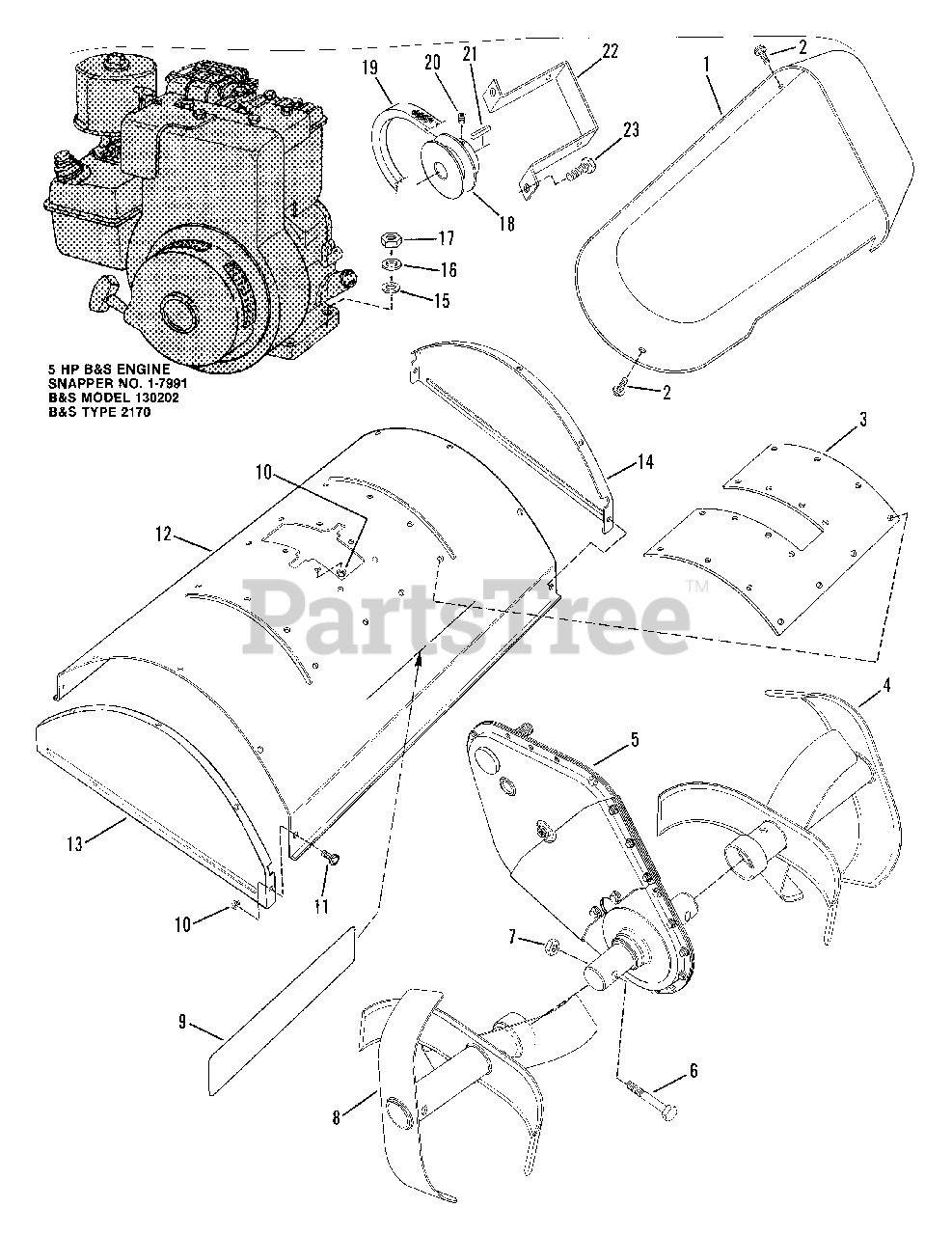

Cover Group Parts Diagram

  • Title
1

Snapper 7019781

COVER, Belt
(Superseded to 7019781YP)

$35.99

$

Usually ships in 2-12 days

0

2

Snapper 7091084

SCREW, 1/4-20x3/8" H.W.H. Self-Tapping
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

3

Snapper 35061

PLATE, Reinforcing

$

$

Currently unavailable

4

Snapper 7049940

TINE STRUCTURE, Right Side

$

$

Not available

5

Snapper 7059691

CHAIN CASE ASSM'Y.

$

$

Currently unavailable

6

Snapper 7014586

BOLT, 3/8-24x2 1/4" Shear
(Superseded to 7014586YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

8

Snapper 7049941

TINE STRUCTURE, Left Side

$

$

Currently unavailable

9

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7090731

BOLT, 5/16-18x1/2" Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7035098

COVER, Tines
(Superseded to 7035098YP)

$84.99

$

Usually ships in 2-12 days

0

13

Snapper 7035062

PLATE, Left Side

$

$

Currently unavailable

14

Snapper 7035063

PLATE, Right Side
(Superseded to 7035063YP)

$66.99

$

Usually ships in 2-12 days

0

15

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7090187

WASHER, 5/16 Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7091511

NUT, 5/16-18
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7011809

PULLEY, Engine
(Superseded to 7011809YP)

$37.99

$

Usually ships in 2-12 days

0

19

Snapper 7015329

BELT
(Superseded to 7015329YP)

$20.99

$

In Stock, only 2 left!

0

20

Snapper 7090201

SETSCREW, 5/16
(Superseded to 7090201SM)

$

$

Not available

21

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7038231

GUIDE, Belt

$

$

Not available

23

Snapper 7090322

SCREW, 5/16-24x1/2" Hex Head Cap

$2.99

$

In Stock, only 2 left!

0
